3 Axis Accelerometer Sensor, 0–5V Output, ±2g to ±40g

3 Axis Accelerometer Sensor, 0–5V Output, ±2g to ±40g

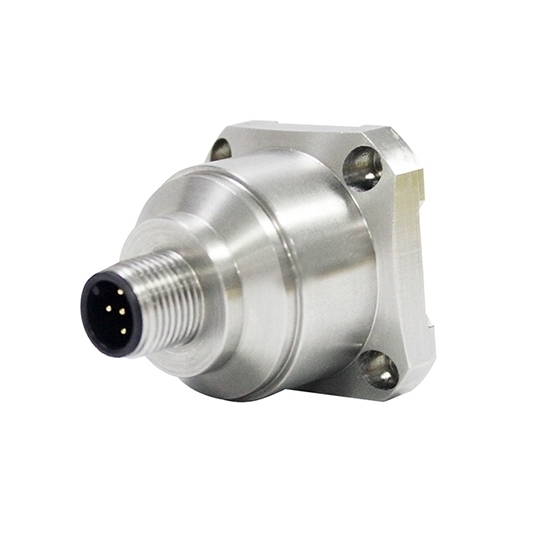

Cheap price 3 axis accelerometer sensor with 0-5V voltage output, working temperature -40°C ~ 85°C, 20g Rms, 20-2000 Hz Vibration. Triaxial accelerometer sensor is used in crash record, wind power generation, traffic system monitoring, roadbed analysis and high-speed railway fault detection, bridge.

SKU: CCHN-AS-AKF390

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Three axis accelerometer sensor with cross-axis sensitivity 1%/ 2%, ±2g to ±40g measuring range can be chosen. It has advantages of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability.

Parameters

Model	CCHN-AKF390
Measuring Range	±2g	±4g	±8g	±10g	±20g	±40g
Sensitivity	1250±10% (mA/g)	625±10% (mA/g)	312.5±10% (mA/g)	250±10% (mA/g)	125±10% (mA/g)	62.5±10% (mA/g)
Nonlinearity	<0.5% FS (highest)	<0.5% FS (highest)	<0.8% FS (highest)	<1% FS (highest)	<1% FS (highest)	<1% FS (highest)
Lateral Vibration Sensitivity Ratio	1%	1%	2%	5%	5%	5%
Deviation Temperature Coefficient	0.01%/°C (typical value)	0.01%/°C (typical value)	0.01%/°C (typical value)	0.05%/°C (typical value)	0.05%/°C (typical value)	0.05%/°C (typical value)
Cross-axis Sensitivity	1%	1%	1%	2%	2%	2%
Resonance Frequency	2.4kHz	2.4kHz	2.4kHz	5.5kHz	5.5kHz	5.5kHz
Noise Density	21μg/Hz	21μg/Hz	21μg/Hz	86.6μg/Hz	86.6μg/Hz	86.6μg/Hz
0g Output 2.5V	<0.01mV	<0.01mV	<0.01mV	<0.008mV	<0.008mV	<0.008mV
Bandwidth	1000 (3Db) (Hz)
Resolution/Threshold	<1@1Hz (mg) (highest)
Deviation Calibration	<1mg (max)
Measuring Axis	X, Y, Z
Up/Off Power Repeatability	<2mg (max)
Reliability	MIL-HDBK-217, Grade 2
Shock Resistance	100g@11ms, Triaxial and Identical (Half Sine Wave)
Recovery Time	<1ms (1000g, 1/2 Sin 1ms, Shock Acting On The i Axis)
Vibration	20g Rms, 20-2000Hz (Random Noise, o, p, i Per Axis For Action 30 Minutes )
Input	9-36 VDC (Vdd_Vss)
Current Consumption	<60mA @ 12 VDC
Connector	Industrial standard M12 connector
Weight	73.5g
Dimension	34.334.338.5mm
Certificate	CE
Warranty	12 months

Dimension (unit: mm)

Dimension of 3 axis accelerometer sensor

Details

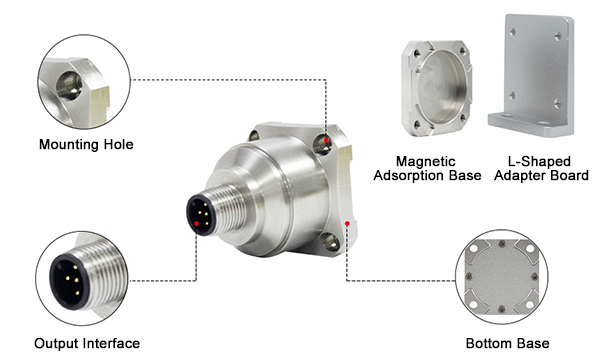

3 axis accelerometer sensor details

Dimension of Mounting Fittings (unit: mm)

Mounting dimension of 3 axis accelerometer sensor

Electrical Connection

Electrical connection of 3 axis acceleromrter sensor

Applications

3 axis accelerometer sensor applications

Tips: Selection Guide of Triaxial Accelerometer Sensor.

1. Output type

This is the first thing to consider. This depends on the interface between your system and the accelerometer. Generally, the voltage and acceleration of the analog output are proportional, for example, 2.5V corresponds to an acceleration of 0g, and 2.6V corresponds to an acceleration of 0.5g. Digital output generally uses pulse width modulation (PWM) signals.

If you use a microcontroller with only digital inputs, such as BASIC Stamp, then you can only choose a digital output accelerometer, but the problem is that you have to take up an extra clock unit to process the PWM signal, and it is also for the processor. A big burden.

If the microcontroller you are using has an analog input port, such as PIC/AVR/OOPIC, you can easily use an acceleration sensor with an analog interface, all you need is to add a command similar to "acceleration=read_adc()" in the program , And the speed of processing this instruction is only a few microseconds.

2. Number of measuring axes

For most projects, the two-axis acceleration sensor can already meet most applications. For some special applications, such as UAV and ROV control, a three-axis acceleration sensor may be suitable.

3. Maximum measured value

If you only need to measure the inclination angle of the robot relative to the ground, a ±1.5g acceleration sensor is sufficient. But if you need to measure the dynamic performance of the robot, ±2g should also be sufficient. If your robot will suddenly start or stop, then you need a ±5g sensor.
