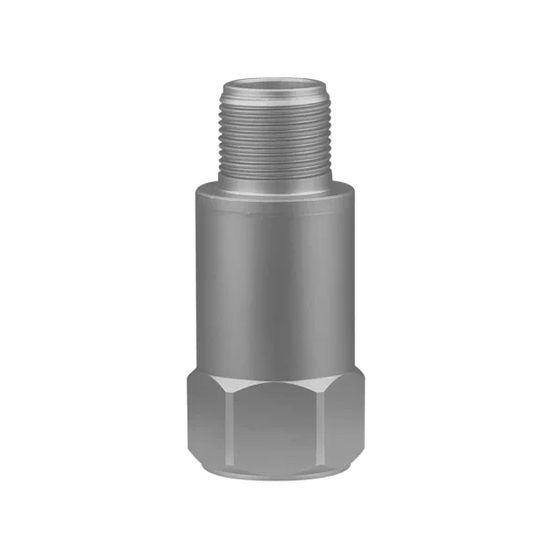

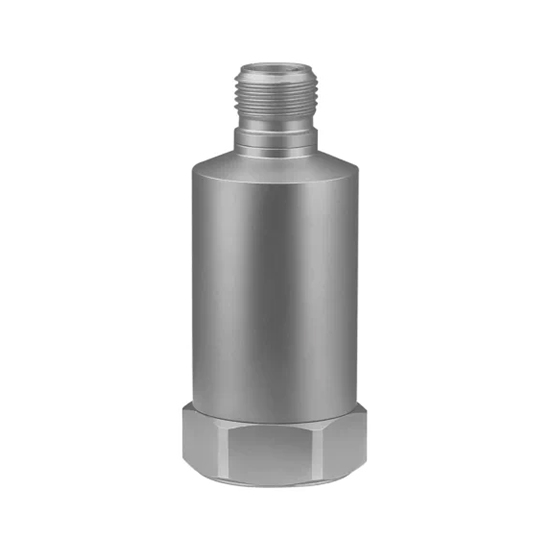

Piezo Accelerometer Sensor, 0-5V Output, 0-1g/0-10g/±1g/±10g

Piezo Accelerometer Sensor, 0-5V Output, 0-1g/0-10g/±1g/±10g

Piezo accelerometer sensor with 0-5V output provides 0-1g, 0-10g, ±1g, and ±10g measurement ranges, 1-2000Hz frequency response, and high shock resistance. Featuring a piezoelectric ceramic sensing element, stainless steel housing, M5 mounting, and -40–85°C operating temperature for reliable industrial vibration and acceleration measurement.

SKU: CCHN-PAS-KT1014

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The piezo accelerometer sensor is designed for accurate vibration and dynamic acceleration measurement in industrial equipment. With a 0-5V analog output, the accelerometer sensor can connect easily to PLCs, data acquisition systems, and vibration monitoring equipment. Multiple measurement ranges make the sensor suitable for different vibration monitoring and condition monitoring requirements.

Specification

Model		CCHN-KT-11	CCHN-KT-10	CCHN-KT-14	CCHN-KT-13
Dynamic Performance	Measurement Range	0–1g	0–10g	±1g	±10g
	Sensitivity	~5000mV/g	~500mV/g	~2500mV/g	~250mV/g
	Mounted Resonance Frequency	8 kHz	10 kHz	8 kHz	10 kHz
	Frequency Response	1–2000 Hz (±3dB)
	Output Range	0–5V
	Non-linearity	≤1%
	Transverse Sensitivity	≤5%
Environmental Specification	Shock Limit	1000g	2000g	1000g	2000g
	Operating Temperature	-40–85℃
	Sealing Performance	Laser Welding
Electrical Specification	Bias Voltage (Midpoint)	/	/	2.5V	2.5V
	Supply Voltage	18–36 VDC
	Insulation Resistance to Ground	≥10⁸Ω
Structure	Output Connector	M12 4-Pin	C5015 4-pin	M12 4-Pin	C5015 4-pin
	Weight	130 g	82 g	130 g	82g
	Housing Material	Stainless Steel
	Sensing Element	Piezoelectric Ceramic
	Element Structure	Shear Type
	Mounting Type	M5

Feature

0-5V Analog Output: The piezo accelerometer sensor delivers a stable voltage signal for PLCs, data acquisition systems, and vibration monitoring equipment.
Multiple Measurement Ranges: Available in 0-1g, 0-10g, ±1g, and ±10g to suit different acceleration measurement requirements.
Wide Frequency Response: The piezoelectric accelerometer sensor covers 1-2000Hz (±3dB) for reliable detection of a broad range of vibration signals.
Piezoelectric Sensing Element: Uses a piezoelectric ceramic element for dynamic acceleration and vibration measurement.
High Shock Resistance: The accelerometer sensor supports shock limits up to 1000g or 2000g, depending on the selected model.
Durable Stainless Steel Housing: Provides robust protection for demanding industrial measurement environments.
Flexible Installation: Features M5 threaded mounting and supports M12 4-Pin or C5015 4-Pin connector options.

Size(unit: mm)

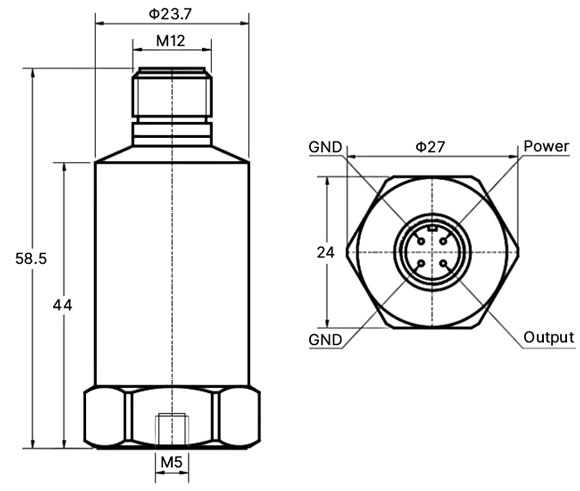

CCHN-KT-11 CCHN-KT-14

Piezo accelerometer sensor 0-5v size

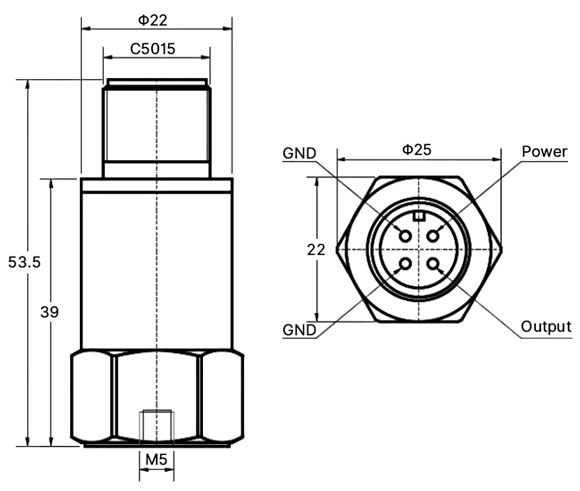

CCHN-KT-10 CCHN-KT-13

Piezo accelerometer sensor 0-5v size

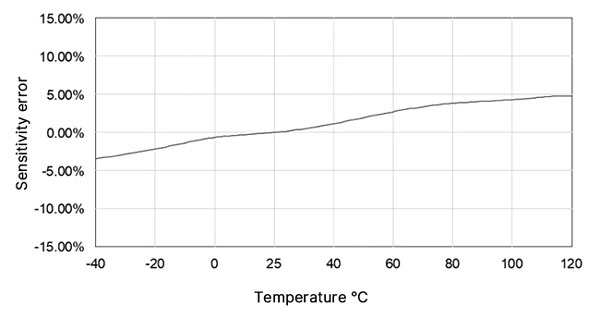

Temperature Chart

Piezoelectric accelerometer sensor temperature

Tips: How often should an accelerometer sensor be checked?

The accelerometer sensor should be inspected regularly to ensure stable vibration measurement and reliable signal transmission. Check the sensor body, mounting connection, cable, and connector for looseness, wear, contamination, or physical damage. For equipment operating continuously under high vibration, shock, dust, or temperature changes, more frequent inspections are recommended. Periodic checks of the sensor output can also help identify abnormal readings or installation issues before they affect vibration monitoring results.
