1/8" 1pc Pneumatic Filter AFR1500

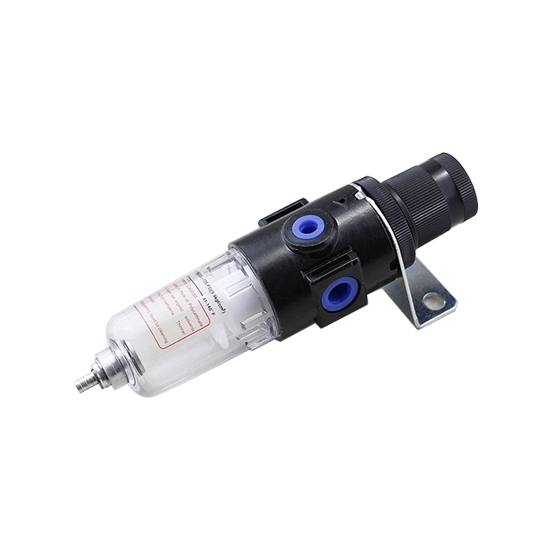

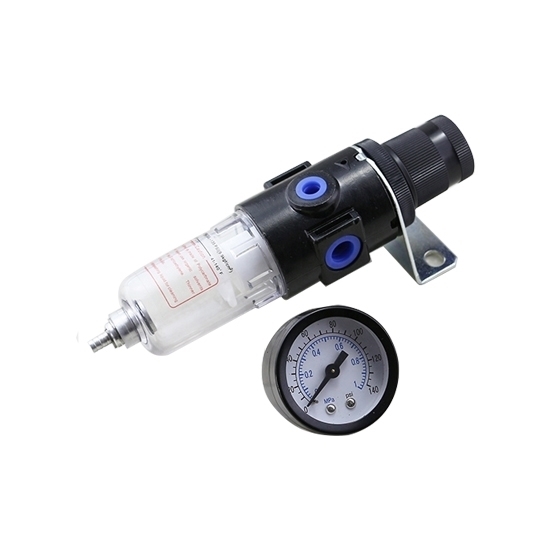

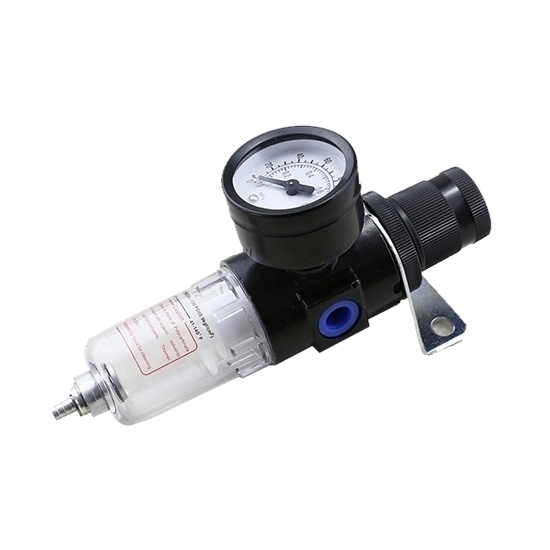

The 1/8" 1pc Pneumatic Filter is light in weight, only 260 g, small in size and easy to operate, this high performance compressed air filter is your best choice.

SKU: CCHN-PF-1/8

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Feature

1.The 1/8" 1pc pneumatic filter with delicate and compact structure, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movementof the set pressure caused by external interfere.
3.The pressure loss is low and the efficiency of water separating is high.
4.The quantity of oil dripping can be directly observed through transparent checkdome.
5.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

Specification

Model	AFR1500
Fluid	Air
Port size	1/8"
Filtering grade	40μm or 50μm
Pressure range	Semi-auto and automatic drain: 0.15-0.9MPa ( 20-130Psi ), manual drain: 0.05-0.9MPa ( 7-130Psi )
Max.pressure	1.0MPa ( 145Psi )
Proof pressure	1.5MPa ( 215Psi )
Temperature range	-5~70℃
Capacity of drain bowl	15CC
Weight	260g

	1Push button	13Drain bowl
	2Adjusting button	14Drain kit
	3Adjusting nut	15Return spring
	4Adjusting seat	16Drain seat
	5 Adjusting spring	17Drain pillar
	6Fixed ring	18Drain O-ring
	7Body	19Filter element
	8Diaphragm	20Return spring
	9Balance needle	21Drain bowl O-ring
	10Needle gasket	22Needle O-ring
	11Air guider	23 Bowl guard switch
	12Umbrella baffle

Details

Pressure and feature of flow

1pc pneumatic filter dimension

Dimension(Unit: mm)

1pc pneumatic filter dimension

Tips

Pay attention to timely drainage:

There is a transparent plastic water collecting cup under the 1/8" oil-water separator. When using the oil-water separator, you must pay attention to the timely release of water. If there is too much water, the pneumatic filter will not be able to separate the oil and water.
