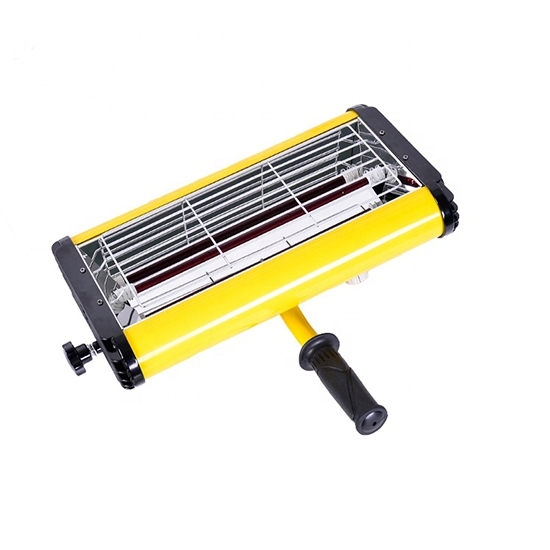

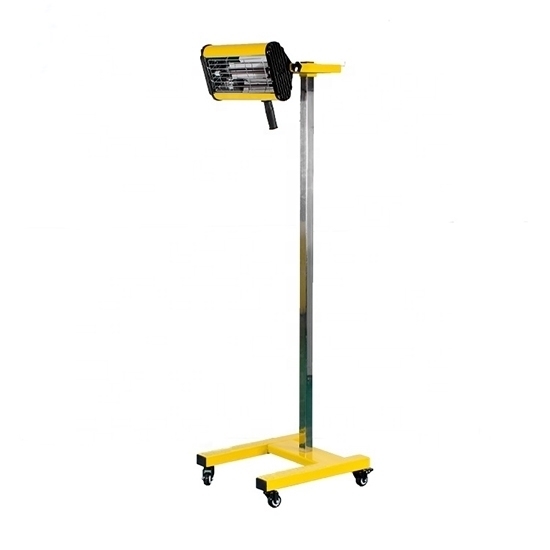

Infrared Paint Curing Lamp for Car Spray Paint

Infrared Paint Curing Lamp for Car Spray Paint

Paint curing lamp use infrared short-wave lamp, in addition to being very suitable for car spray paint, it can also be used for wooden furniture, advertising character production, metallic spray paint, film plating and other applications. Stand of the Paint curing lamp is high-quality custom-made aluminum column, can rotate 360° or 180°, which can move, raise and lower smoothly. Side panels and masks are made of 304 stainless steel, and each group of lights has independent switches. 1-lamp paint curing lamp can select hand-held and stand. It is ideal for automobile spray paint, baking paint and repair.

SKU: CCHN-IPCL-1236

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Infrared Paint Curing Lamp Features

Provide efficient painting process to car spray paint, strengthen hardness of the paint, and improve the paint adhesion.
With digital display, control time and power more accurately.
Matching high-temperature wires, strong and durable, to prevent corrosion and melting of wires.
With overload and overheating circuit induction function, providing automatic overload protection for car spray paint work, eliminate hidden dangers.

Specification

Model	CCHN-IPCL-LD1A	CCHN-IPCL-LD1H
Number of Lamps	1
Input Voltage	220-240V 50/60Hz
Rated Power	1×1100W
Curing Temperature	40℃~100℃
Curing Area	650×500mm
Adjustable Height	2200mm
Drying Time	0~60min
Working Current	10A
Weight	3.5kg	11kg
Additional Feature	Refer to the Additional Feature Table
Certification	CE

Note: Be sure to check this table before selecting a model.

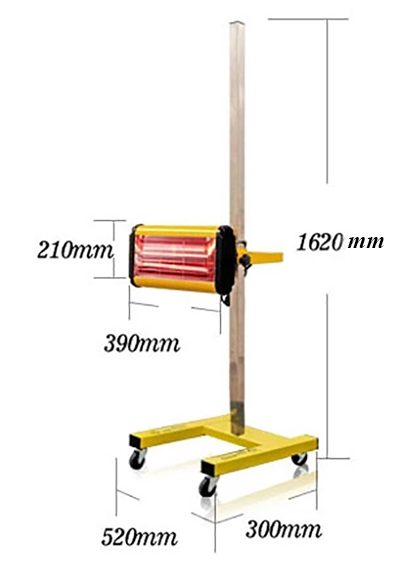

Dimension Drawing of Infrared Paint Curing Lamp, 1-Lamp

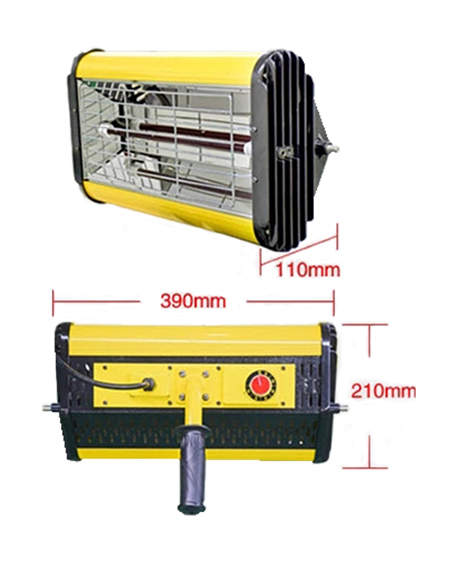

Dimension Drawing of Infrared Paint Curing Lamp, 1-Lamp, Handheld

Tips: Infrared Paint Curing Lamp Installation.

Install 4 casters. Be sure to install the brake wheels at the back.
Install the lamp post. Align the holes and tighten the screws.
Install the lamp cap. Plug in the power cord and tighten it.

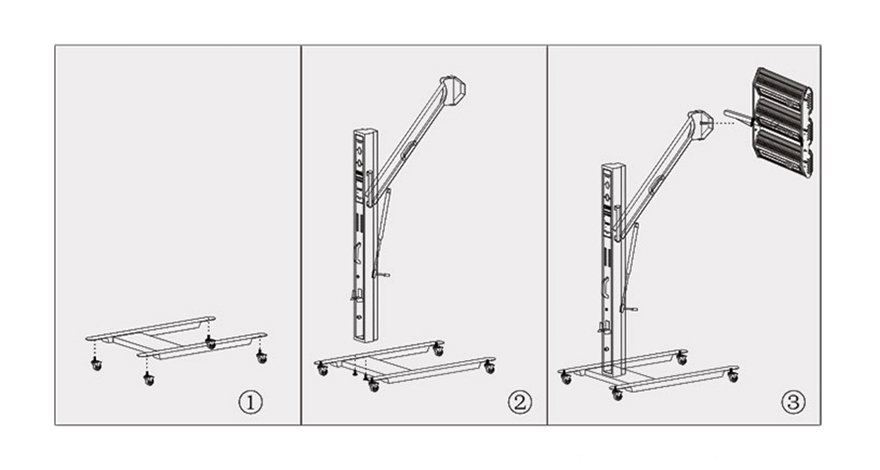

Infrared Paint Curing Lamp Installation Diagram
