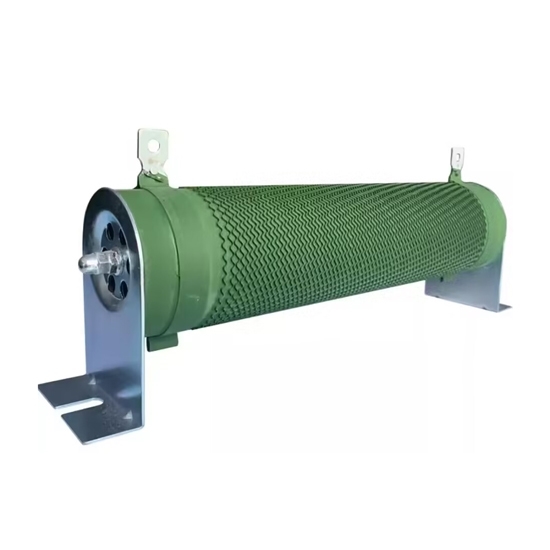

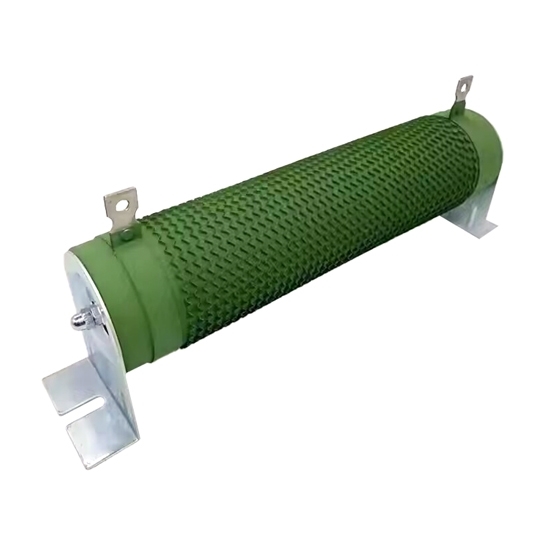

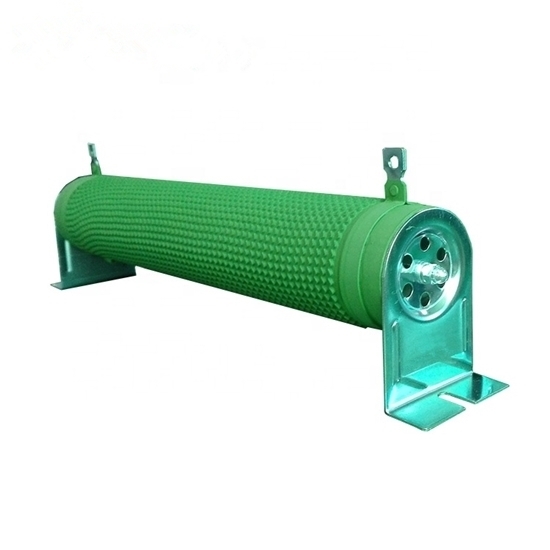

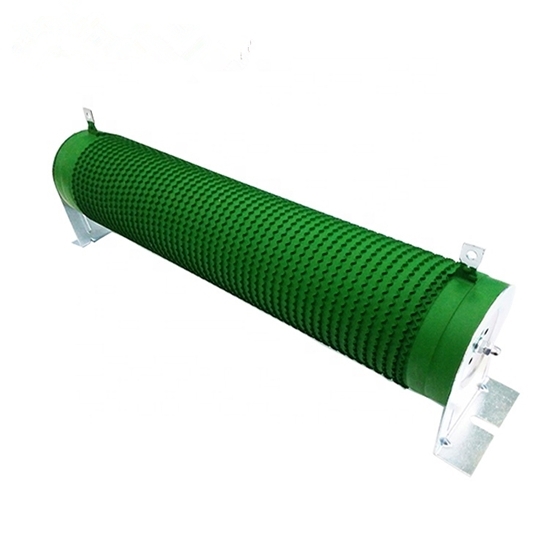

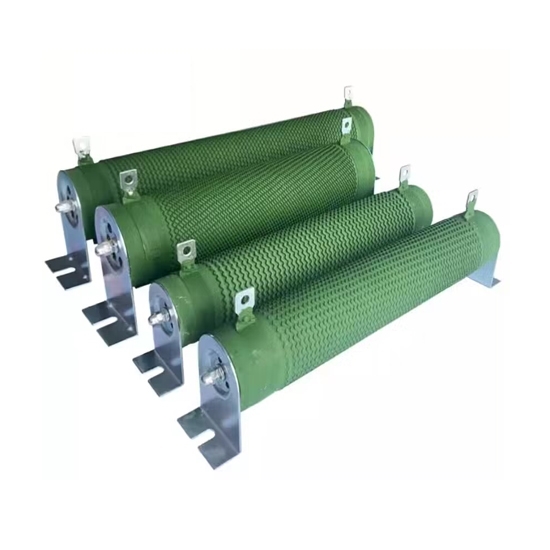

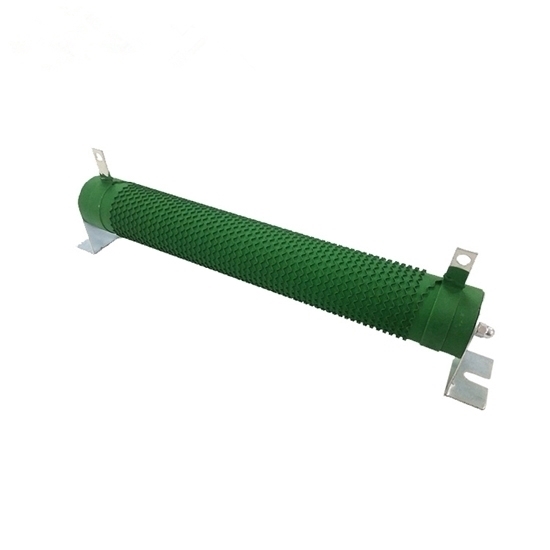

Wire Wound Ceramic Braking Resistor

Ceramic braking resistor (wire wound resistor) uses high temperature resistant mullite porcelain tube as the winding base, 50W~6000W rated power for selection, optional resistance in 1Ω~3000Ω. Dielectric voltage reaches AC2.5kV/1min 50Hz. It adopts high temperature resistant, flame retardant and insulating inorganic coating to effectively protect the resistance wire from oxidation, long service life and affordable price.

SKU: CCHN-WWR-56

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Features

Rated power can be up to 6000W, resistance can be up to 3000Ω.
Inorganic coating is flame-retardant, strong overload capacity, can withstand 10 times the rated power within 5 seconds.
Vertical corrugated structure, low parasitic inductance, high resistance with flat wound.

Specification

Model	CCHN-WWR-56
Tolerance	±5%, ±1% available
Max.Work Voltage	(P*R)^1/2 V
Temperature Coefficient	400 PPM/℃
Short Time Overload	5xPn (rated power) in 5 seconds
Dielectric Voltage	AC2.5kV/1min 50Hz
Insulation Resistance	DC500V, R≥100MΩ
Certification	CE, RoHS
Terminal Strength	200N 30s, no damage
Operating Temperature Range	-25℃~+225℃

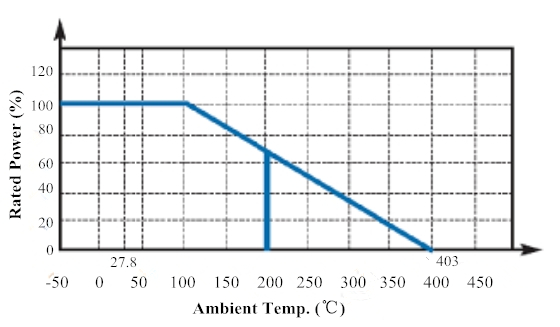

Derating Curve Diagram of Ceramic Braking Resistor

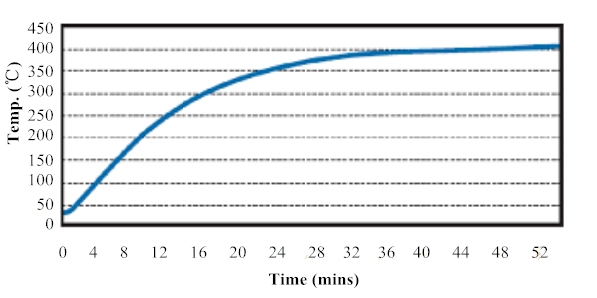

Temp. Rise Curve Diagram of Ceramic Braking Resistor

Tips: Classification and characteristics of wire wound ceramic braking resistors.

Vertical corrugated wire-wound ceramic resistor: larger heat dissipation area, can withstand higher pulse voltage, short hedging time, but strong adaptability in use environment with high pulse voltage. By adopting the reverse double winding method, non-inductive winding resistance can be manufactured, and the parasitic inductance is effectively reduced.
Sliding adjustable ceramic resistor: Zero to maximum resistance can be adjusted. By sliding the middle slider, an adjustable resistance is obtained to control the output of circuit current.
Flat-wound ceramic resistor: High-resistance resistors, resistances up to 20000 ohms, which is suitable for high-resistance environments.
