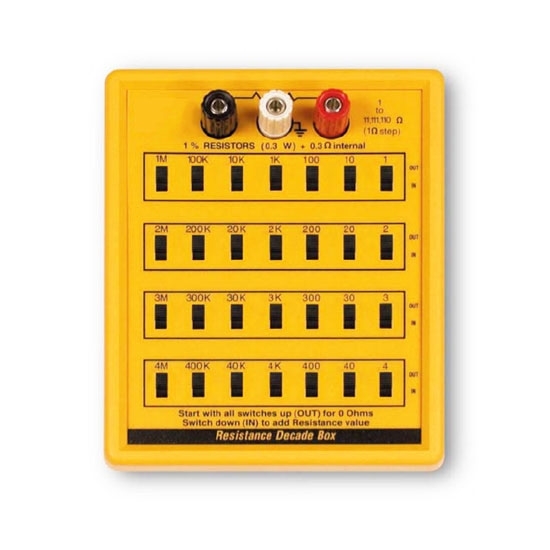

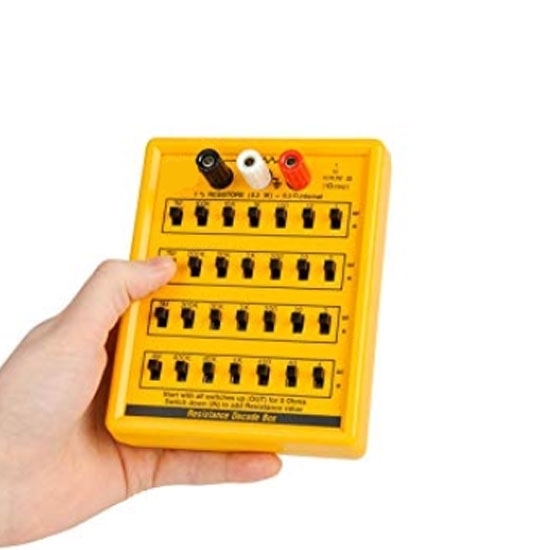

Resistance Decade Box, 1 to 11111110 Ohm

Resistance Decade Box, 1 to 11111110 Ohm

Resistance decade box price concessions, range 1 to 11111110 ohm, accuracy 1%, with seven decades of resistance, poket size, wide range and high resolution, ideal for testing professional multimeter, LCR meter, calibrator, presented test line, manufacturer direct sales.

SKU: CCHN-RDB

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Decade resistance box for sale, 1 ohm per step, the decade box has seven different decade range resistors, with 1% resistance to replace Ω from 1 to 11111110, easy to use, strong shell and long service life.

Note: Operation Procedure
1. Start with all switches up ( OUT ) for minimum capacitance.
2. Switch down ( IN ) to add Capacitance value.
Specification:

Model	CCHN-RDB
Range	1 to 11,111, 110 ohm ( 1 ohm per step )
Accuracy	1% Resistors used throughout
Wattage	1W
Voltage Limit	50 V DC, non-polarized capacitors
Internal Residual Capacitance	About 50 Pf
Operating Temperature	0 to 50 ℃ (32 to 122 ℉)
Operating Humidity	Less than 80% RH
Dimension	14711755mm, (5.794.612.16 inch)
Weight	304 g, (0.69 lb)
Certification	ISO-9001, IEC1010

Tips: Advantages of resistance boxes

The resistance box can indicate the resistance value of the connected circuit, and can gradually change the resistance of the connected circuit. When a current passes through a resistive element, heat is generated, and the thermal reaction causes mechanical changes in each material of the device to expand or contract. Ambient temperature conditions will produce the same results. Therefore, the ideal resistance element should be able to self-balance based on these natural phenomena, maintain physical consistency during resistance processing, and avoid the need for thermal or stress compensation during use, thereby improving system stability.
