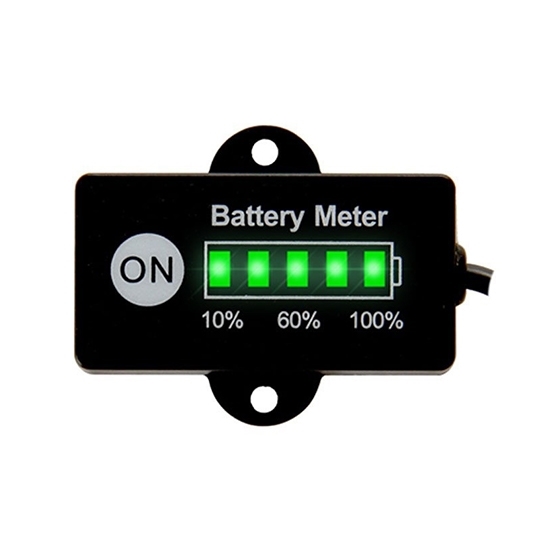

LED Battery Charge Indicator, Lead Acid/Lithium Battery

LED Battery Charge Indicator, Lead Acid/Lithium Battery

LED battery charge indicator suitable for Lead Acid, LiFePO4, and LiCoO2 batteries. Automatically detects remaining battery level on power-up. Supports 12V and 24V systems. Easy installation with screw mounting or double-sided tape. Ideal for golf carts, forklifts, RVs, and electric vehicles.

SKU: CCHN-BI-LED

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy LED battery level indicator for lead-acid and lithium batteries. Displays battery level instantly on power-up. Quick and easy to install, designed for golf carts, RVs, forklifts, and electric vehicles.

Specification

Model	CCHN-RL-BI005
Display Method	LED
Rated System Voltage	12V 24V
Housing Material	ABS
IP Rating	IP65
Packaging Method	White Box Packaging
Overall Dimensions	42 * 33.5 * 11mm
Mounting Size	27.5mm
Weight	40.1g

Feature

Wide Battery Compatibility: Suitable for Lead Acid, LiFePO4, and LiCoO2 batteries.
Power-On Detection: LED battery charge indicator automatically detects the current remaining battery level on power-up.
Display: 5 LED battery lights indicate 10 battery levels via blinking and steady lighting.
Battery Level Display: LED battery indicator shows real-time remaining battery capacity.
Power Control: Turn on or off using the ON button.
Voltage Detection: LED battery gauge automatically detects 12V or 24V systems; voltage above 16.5V is recognized as 24V, below 16.5V as 12V.

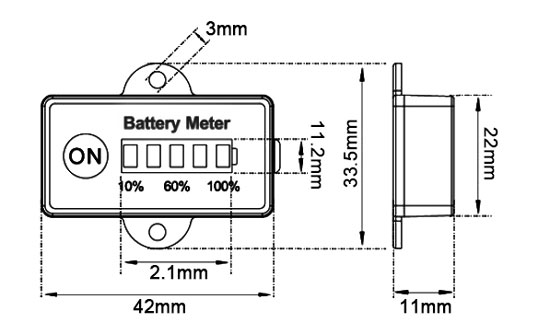

Size (unit: mm)

Led battery charge indicator size

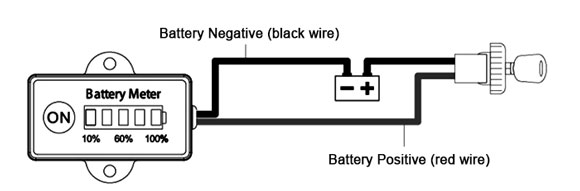

Wiring

Led battery charge indicator wiring

Application

Battery indicator application

Tips: How to install the LED battery charge indicator?

The battery gauge can be installed easily using two methods: secure it with screws for a permanent fit, or use double-sided adhesive for a quick, tool-free attachment. Choose a flat, dry surface and ensure the connections to the battery are correct and stable.
