10 kW 72V BLDC Motor Controller for Electric Vehicle

The 72V bldc motor controller is designed and manufactured for modern mobile electric vehicles, rated voltage at 10 kW, this BLDC controller is compatible with various motor temperature sensors to protect the motor from overheating damage.

Specifications

• Model: CCHN-EZ-B72800
• Rated Voltage: 72V
• Rated Power: 10kW
• Max Voltage: 95V
• Max Phase Current: 800A
• Rated Phase Current: 320A
• Max Bus Current: 300A
• Weight: 3.5kg

Features

• 10 kW BLDC electric car motor controller has built-in Bluetooth, which can monitor the status of the controller in real-time with the host software.
• 72V motor controller supports communication protocols: CAN-BUS, RS485, UART, etc.
• Electric car motor controller has the support of automatic motor matching.
• Electric car motor controller is compatible with various motor sensors: Hall, photoelectric encoder, magnetic encoder, etc.
• Precise bus current control to protect controller battery life from over-discharge.
• Motor controller torque, speed, and power can be set individually.
• Integrated DC contactor control circuits, and other modes are also available.

Wiring Diagram with DC Contactor

Wiring Diagram without DC Contactor

Dimensions (Unit: mm)

Applications

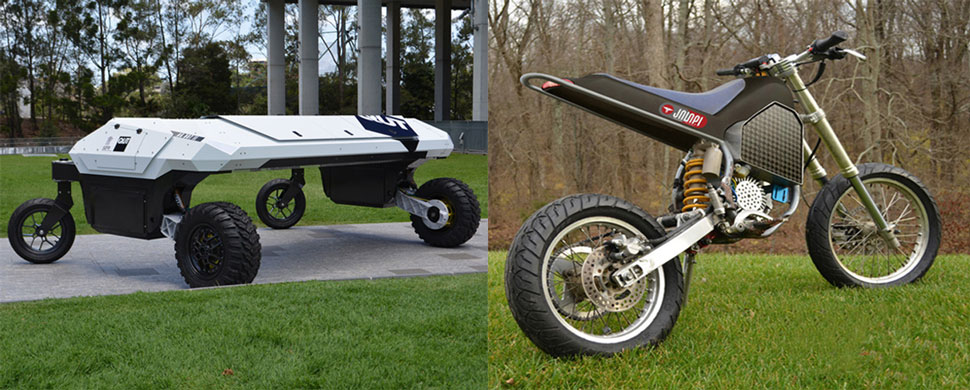

10 kW electric vehicle motor controllers are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

Tips: What are the main components of a DC electric motor?

• A set of coils (field) produces the magnetic force that provides the torque.
• A rotor or armature that is mounted on bearings and rotates within the magnetic field.
• A commutation device that reverses the magnetic force and rotates the armature to provide horsepower.
