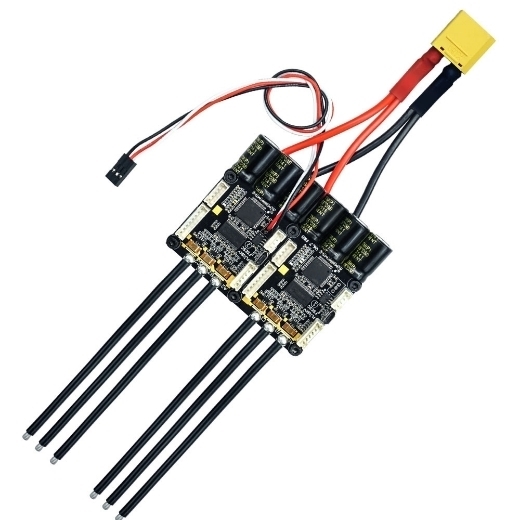

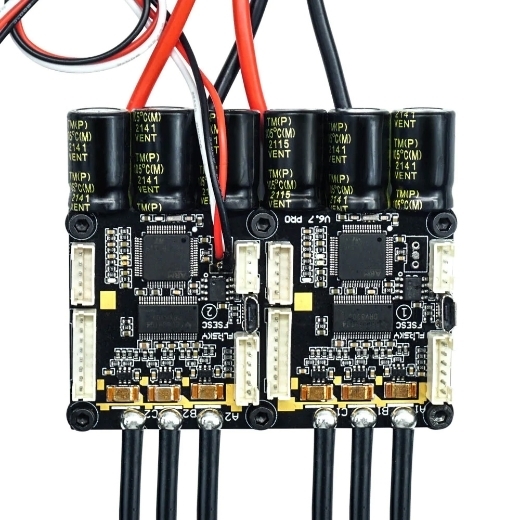

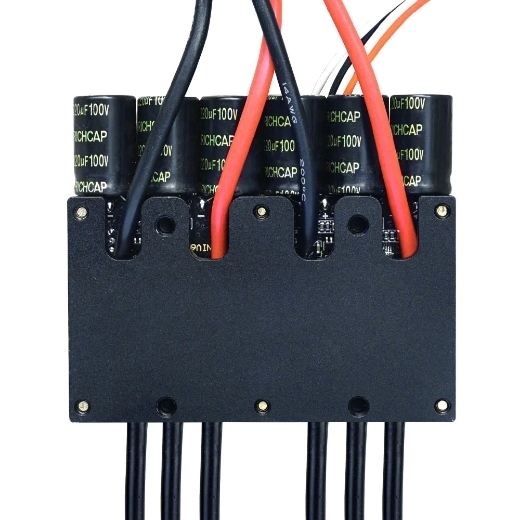

70A/140A 4-12S Electronic Speed Controller (ESC) for Dual BLDC Motor

Low cost ESC controller is widely used in remote control and vehicle applications. Continuous current 70A/140A, safe voltage 14-60V (4S -12S). The provided electronic speed controller supports the current/duty cycle/speed/position control mode and can adjust the speed of the motor according to the control signal.

Specifications

• Model: CCHN-VH-M67PS-N-070
• Voltage: 14V-60V (Cells: 4-13S, safe for 4S to 12S, voltage spikes may not exceed 60V)
• Continuous Current: 70A/140A
• Instantaneous Current: 200A
• Size: 67mmx39mmx18.7mm
• Weight: 130g
• EPRM: 150000
• Motor Cable: 12 AWG
• Power Cable: 12 AWG
• Regenerative capacity: Yes
• Programmable: Yes
• Communication Method: PPM, ADC, NRF, UART
• Communication Ports: USB, CAN, UART, SPI, IC
• Supported Sensors: ABI, HALL, AS5047, AS5048A
• Control Mode: Current, duty cycle, speed and position control modes are supported.

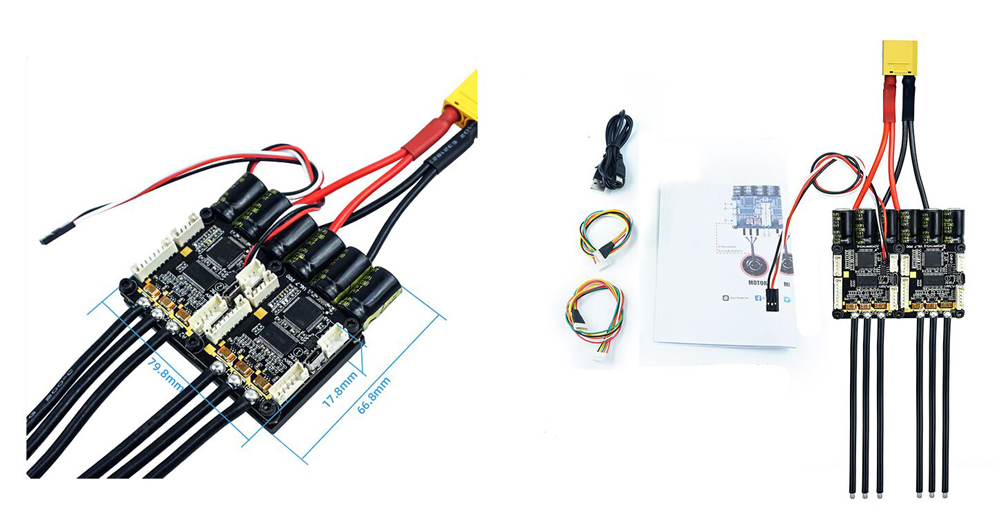

Dimension (Unit: mm)

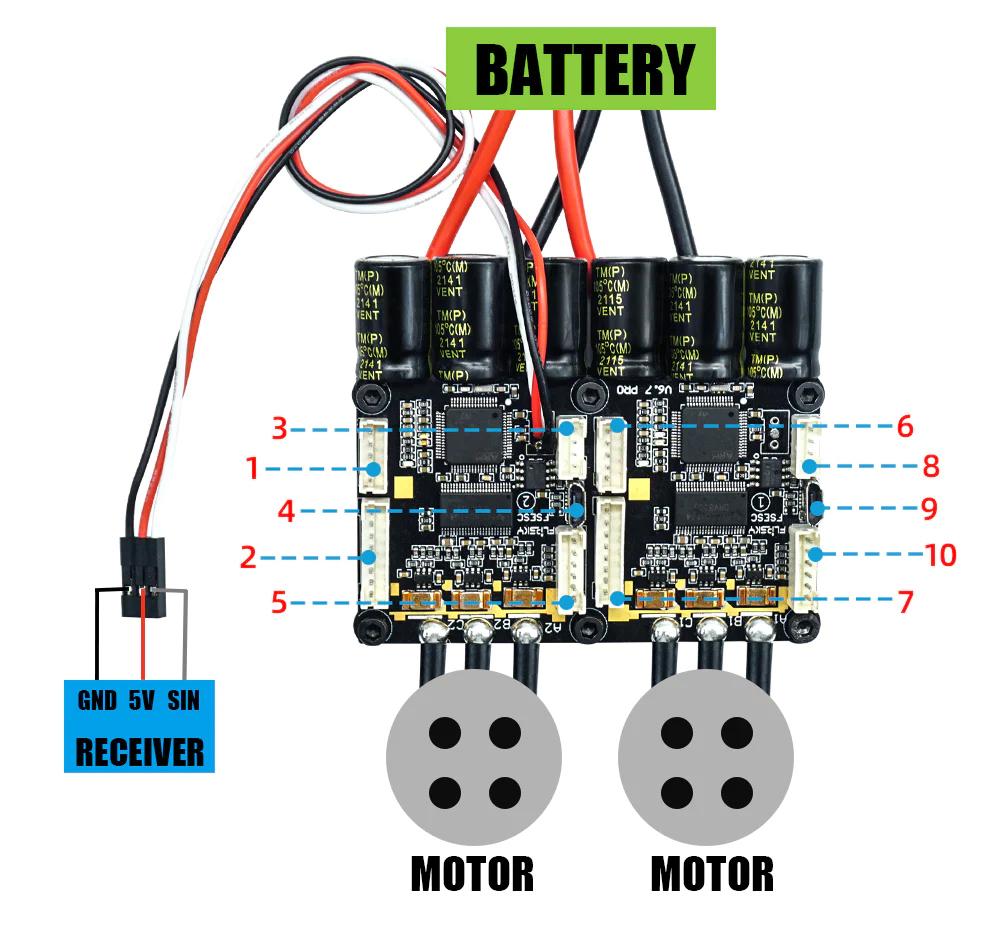

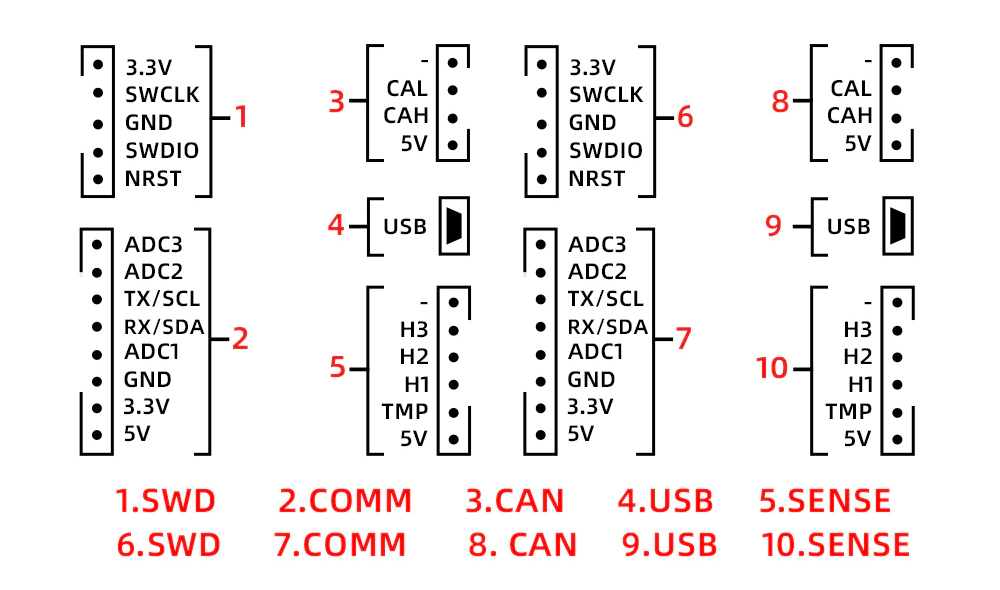

Wiring diagram

Tips: How does an electronic speed controller work?

The ESC (Electronic Speed Controller) translates this movement by the driver into a signal that increases or decreases the power produced by the motor. The Receiver picks up the signal from your transmitter in the model and, once decoded, is sent to the ESC.
