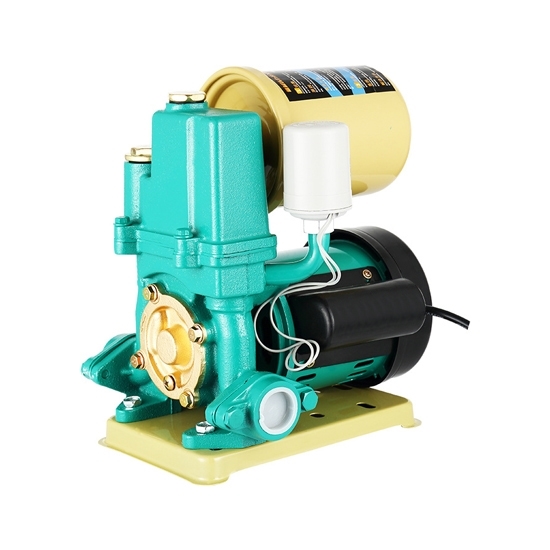

0.5 HP (0.37 kW) Automatic Water Pressure Booster Pump

0.5 HP (0.37 kW) Automatic Water Pressure Booster Pump

Small automatic water booster pump for house, 0.5 HP (0.37 kW), single phase or 3 phase, optional voltage 220V, rated current 370A, 1 in. water inlet and outlet, max. head 40m, max. flow 30 LPM, comes with motor to increase water pressure.

SKU: CCHN-BP-05HP

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1/2 HP (0.37 kW) water booster pump with motor is used to increase the pressure of water. It accepts cold and hot water, which is suitable for home use, sprinkler and irrigation system, small air conditioner system, and washing machine, etc.

Specification

Model		CCHN-PQT-370A
Power		0.5 HP (0.37 kW)
Voltage (AC)		220V
Phase		Single Phase / 3 Phase
Max. Flow		30 L/min
Max. Head		40m
Rated Flow		32m³/h
Rated Head		35m
Max. Suction		9m
Inlet Diameter		1 inch
Outlet Diameter		1 inch
Pump	Max. Liquid Temperature	35℃ or 60℃
	Max. Suction	+8m
	Material	Brass Impeller with Evenly Arranged Radial Vanes
Motor	Max. Ambient Temperature	+40℃
	Insulation Class	B or F
	Protection	IP x 4
	Cooling	External Ventilation
	Shaft	Stainless Steel Welded Shaft/45# Steel Shaft
Packing Dimension		290mm * 250mm * 310mm
Weight		15kg

Applications

1.5 HP (1.1 kW) Single Phase Automatic Water Booster Pump Applications

Details

Tips: Automatic water booster pump troubleshooting

Faults	Reasons	Solutions
The booster pump runs but no water output.	The water in the pump is not full. Wrong direction of rotation. The impeller passage is blocked.	Inject water into the pump again. Drain the impeller passage. Adjust the direction of rotation.
The booster pump flow is insufficient.	The pump is blockage. Low revolution. The impeller is damage. The outlet valve opening is too large.	Clean the pump and tube. Replace the impeller. Add shaft revolution. Turn down the outlet valve.
The pressure of the outlet is insufficient.	There is air in the liquid. Low revolution. The impeller is damage. The outlet valve opening is too large.	Expel air from the liquid. Replace the impeller. Add shaft revolution. Turn down the outlet valve.
The booster pump consumes too much power (motor heating).	Mechanical defects: Running clearance is too small; the motor shaft is bent; bolts looseness. The booster pump operates well below the rated head.	Check the mechanical parts and solve the problems in time. Adjust the outlet valve to make sure the pump works near the rated flow and rated head.
The booster water pump vibration.	The piping system is not well supported. The impeller is blocked causing imbalance and cavitation effect. There is air in the liquid.	Check the support part of the pump. Tighten the bolts. Drain the impeller passage to make it balance. Expel air from the liquid.
The booster pump is water leakage.	The mechanical sealing is damage. The O-ring is damage. The pump itself is water leakage.	Replace the mechanical sealing and O-ring. Welding the pump body where it leaks.
Excessive pump noise.	The bearing is overheating and lack of oil. The booster pump is overload.	Fill oil in the bearing. Check the mechanical parts and solve the problems in time.
