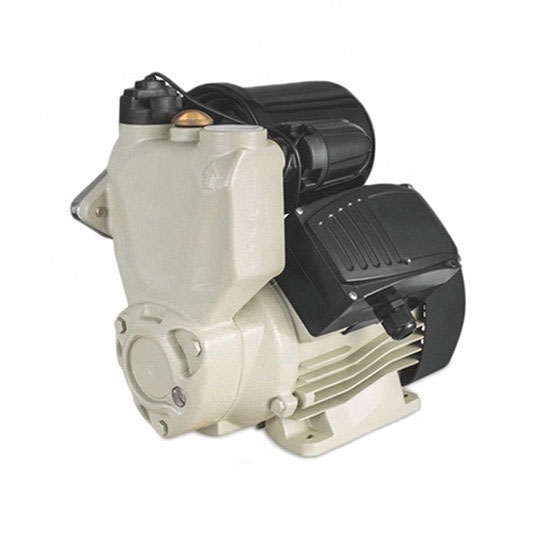

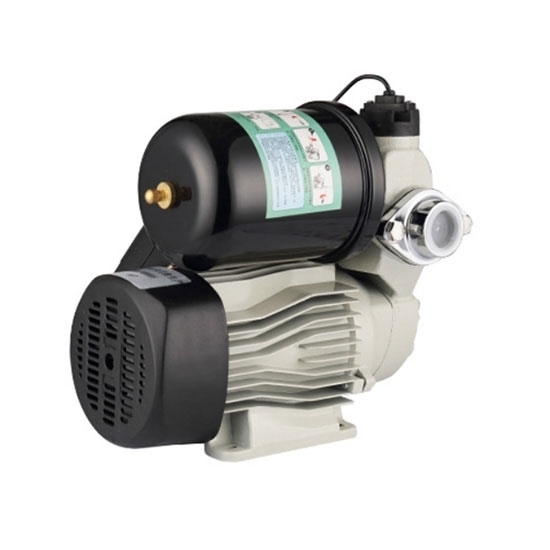

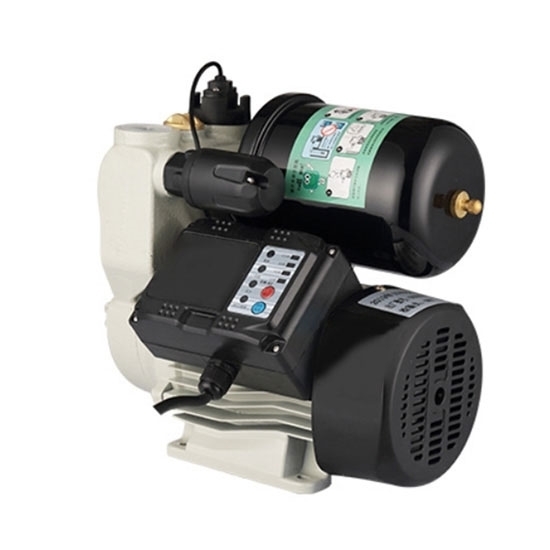

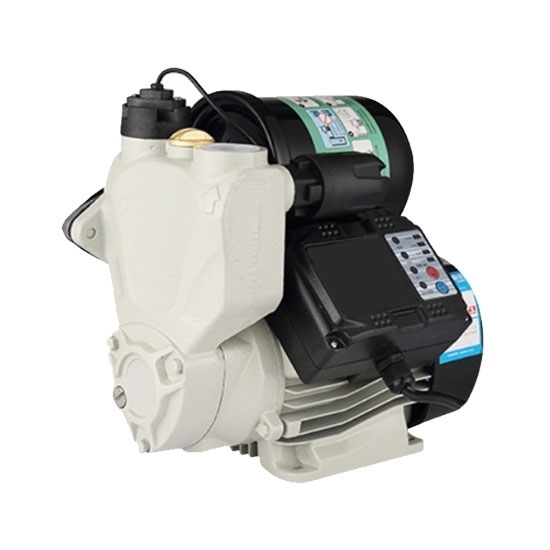

1.5 HP (1.1 kW) Automatic Water Pressure Booster Pump

1.5 HP (1.1 kW) Automatic Water Pressure Booster Pump

Favorable price 1.5 HP (1.1kW) automatic water pressure booster pump for sale, single phase, 220V-240V, 50Hz, 1-1/2 in. water inlet and outlet, max. head 54m, max. flow 84 LPM. This self-priming pump accepts cold and hot water, which can be used for bathroom, washing machine, water purifier and garden hose at home.

SKU: CCHN-BP-1P5HP

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1-1/2 HP (1.1 kW) water pressure booster pump is a combination of motor, pump, pressure tank, pressure switch, flow sensor switch and electronic controller for the integration of automatic water supply system. It widely used in house, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.

Specification

Model		CCHN-40WZB-1100A
Power		1.5 HP (1.1 kW)
Voltage (AC)		220V-240V
Frequency		50Hz
Phase		Single Phase
Max. Flow		84 L/min
QMax		4.3 - 4.5 m³/h
Max. Head		54m
Max. Suction		9m
Inlet Diameter		1-1/2 inch
Outlet Diameter		1-1/2 inch
Pump	Max. Liquid Temperature	+0 ~ +80℃
	Liquid PH Valve	6.5 - 8.5
	Material	Cast Iron Body and Support
Motor	Max. Ambient Temperature	+40℃
	Insulation Class	B or F
	Protection	IP x 4
	Cooling	External Ventilation
	Shaft	Stainless Steel Welded Shaft/45# Steel Shaft
Packing Dimension		365mm * 270mm * 365mm
Weight		19.5kg

Details

Applications

1.5 HP (1.1 kW) Single Phase Automatic Water Booster Pump Applications

Tips: What are the advantages of CCHN automatic water booster pump?

CCHN automatic water booster pump has rust-free copper inserts to prevent impeller's block when starting after the pump is unused for a long time.
It has long life span with small size, high efficiency and low power consumption.
Its noise less than 35dB, can be used for cold and hot water circulation.
The stator and circuit board of the motor are sealed with epoxy resin and completely isolated from the rotor, which solves the problem of water leakage caused by the motor type DC water booster pump for a long time. It is completely waterproof, which can be installed underwater.
