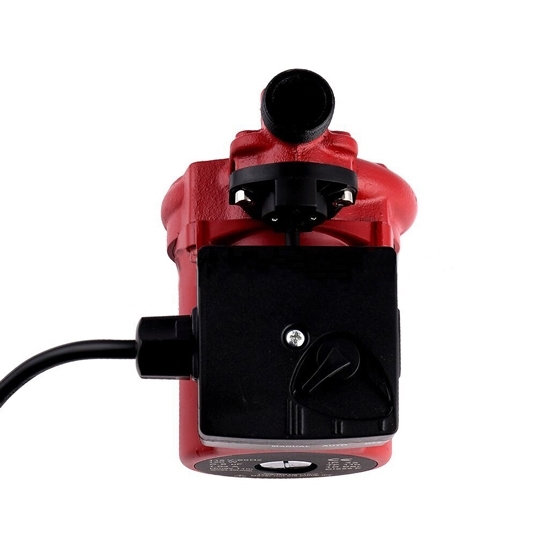

100W Automatic Water Pressure Booster Pump

100W automatic water pressure booster pump can be used to increase the water pressure for home, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.

Specification

• Model: CCHN-ZYBRS15/90-Z
• Voltage (Optional): 110V 60Hz, 220-240V 50Hz, 220-240V 60Hz
• Power: 100W
• Max. Head: 9m (30ft.)
• Max. Flow Rate: 30L/min (7GPM)
• Speed: 2850rpm
• Outlet (Optional): 3/4 inch (19mm), 1 inch (25mm)
• Cable: 1m (3.28ft.)
• Body Material: Cast Copper
• Dimension: 18cm*12.5cm*14cm
• Weight: 3.5kg

Application

Tips: Why do You Prefer CCHN Automatic Water Pressure Booster Pump?

• Simple maintenance: The automatic booster pump has few parts and seals, and the maintenance is simple and the cost is low.
• Strong adjustment: The output pressure and flow of the booster pump are accurately regulated by the pressure regulating valve of the driving gas. Adjust the driving air pressure so that the output pressure of the air pressure pipeline booster pump is precisely adjusted between the pre-increasing air pressure and the maximum output pressure.
• High output pressure: The maximum working pressure of the pneumatic liquid pipeline booster pump can reach 700Mpa, and the maximum working pressure of the pneumatic gas pipeline booster pump can reach 300Mpa.
• Flexible application: The booster pump is suitable for various application fields and is easily compatible with the customer's system.
• Automatic pressure keeping: When operating, the booster pump works instantly and reciprocatingly. As the output pressure approaches the set pressure value, the reciprocating speed of the pump decreases until it stops, and maintains this pressure. At this time, the energy consumption is very small, no heat is generated, and there is no movement of parts. When the pressure balance is broken, the booster pump automatically starts to work to the next balance.
