ATO air pressure booster with 07:1 ratio, 3- 56 bar gas inlet pressure, 56 bar maximum outlet gas pressure, 2-8 bar dirven air pressure, 556 L/min Maximum flow. Based on the air consumption of 1.0 M³/min when the driving pressure is 7 bar.

SKU: CCHN-APB-7

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN 07: 1 air booster with high pressure, pneumatic power, air driven fuel and oil-free. Formula to calculate gas outlet pressure PB is 7Pa+ Pi, connection: gas inlet / gas outlet PT thread 3/8".

Features:

Compressed air driven - no electricity required (connect to normal air compressor). ln order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar.
No airline lubricator required.
Hydrocarbon free - separation between air and gas sections.
Wide range of models with different ratios.
Built-in-cooling on most models.

Specification:

Mode	CCHN-DGD-7
Pressure boost ratio	7:1
Min. gas Inlet pressure PA	3 bar
Max.gas Inlet pressure PA	56 bar
Max. gas outlet pressure PB	56 bar
Drive piston diameter	160mm
Driven air pressure PL	2 bar- 8 bar
Max. driving air pressure	10 bar
Formula to calculate gas outlet pressure PB	7PL+PA
Connection: Gas Inlet / Gas outlet (PT thread)	PT 3/8" (Default PT thread, please contact us if NPT thread is required)
Driven Airinlet Port	G 1/2" (Default G thread, please contact us if NPT thread is required)
Max. flow at driven air pressure of 6 bar	556 L/min
Weight	25kg

Dimension: (unit:mm)

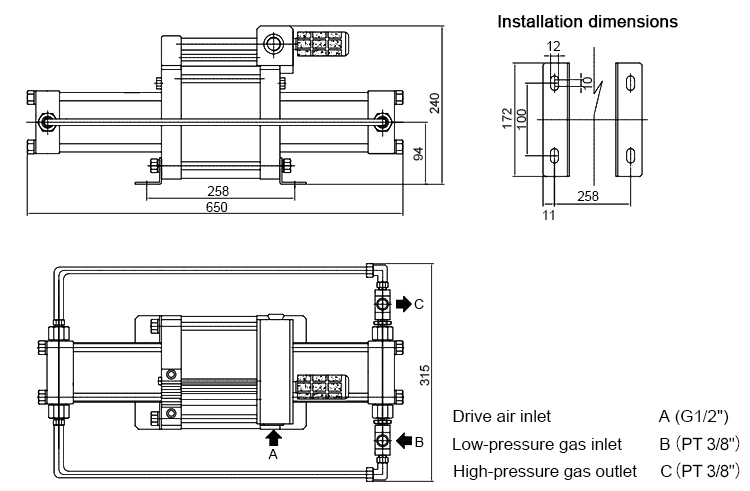

7:1 air pressure booster size

Details

Tips: Where are CCHN air pressure booster application scenarios？

Pressure test with gas transfer and filling.
(Ar/ He/ H2/ O2/ N2ICO2/ NO2/ CH4/ C2H2/ LNG/ ILPG/ CNG/ FM200/ SF6/ H2S etc.)
Charging of gas cylinder and accumulator with nitrogen.
Supply for isolating gas systems.
Gas assisted injection molding.
Transfer of oxygen cylinders.
Charging of breathing air bottles.
