Brushed DC Motor with Gearbox, 3200rpm, 12V/24V, 62mm

Brushed DC Motor with Gearbox, 3200rpm, 12V/24V, 62mm

Brushed DC motor with 62mm diameter gearbox at low price, 66W/68W, can select 1/3.7 to 1/139 gear ratio, 12V or 24V, 3200rpm rated speed, 4000rpm no load speed, peak torque 254.9mN•m.

SKU: CCHN-BDM-3200R62

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy 12V/24V brushed DC motor online. It comes with 62mm diameter gearbox, which has wide industrial applications, such as food processing machine, sealing equipment, textile machine, etc.

Features

Brushed DC motor with gearbox has compact structure and strong overload capacity.
The gear ratio is finely graded, which provides you wide selections for different applications.
Brushed DC gear motor is low energy consumption, low vibration and low noise and the efficiency of the gearbox is up to 96%.
It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.

Specification

Model			CCHN-62RP-ZY5298R8
Working Temperature (Motor & Gearbox)			-30 ~ 150°C
DC Motor Technical Parameter	Rated Voltage		12V DC									24V DC
	No Load	Speed	4000rpm									4000rpm
		Current	0.95A									0.50A
	At Max Efficiency	Speed	3200rpm									3200rpm
		Current	6.8A									3.400A
		Torque	245.1mN·m									254.9mN·m
			2500g·cm									2600g·cm
		Power	66W									68W
	Stall	Torque	882.4mN·m									931.4mN·m
			9000g·cm									9500g·cm
		Current	23.7A									12.0A
Gearbox Technical Parameter	Gear Ratio		1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/51	1/71	1/100	1/139	1/3.7	1/5.2	1/13.7	1/19.2	1/27	1/51	1/71	1/100	1/139
	Gearbox Diameter (mm)		62									62
	Gearbox Length (mm)		37.8		51			64.4				37.8		51			64.4
	Rated Torque (kg·cm)		8.3	11.7	27.4	38.4	54.0	89.3	124.3	175.0	243.3	8.7	12.2	28.5	39.9	56.2	92.8	129.2	182.0	253.0
	Rated Speed (rpm)		865	615.4	233.6	16637	118.5	62.7	45.1	32.0	23.0	865	515.4	233.6	166.7	118.5	62.7	45.1	32.0	23.0
	Stall Torque (kg·cm)		37.5	52.7	123.3	172.8	243.0	401.6	559.1	787.5	800.0	39.0	54.8	128.2	179.7	252.7	417.7	581.5	800.0	800.0

Dimensions

Units: mm

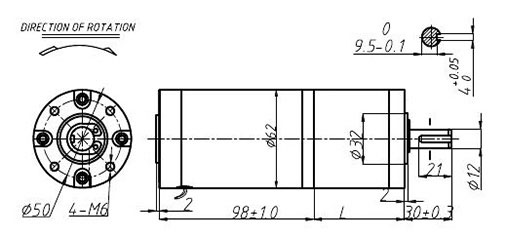

Dimensions of Brushed DC Motor with Gearbox 3200rpm 12V/24V 62mm

Details

62mm Brushed DC Motor with Gearbox Details

Tips: What is the brushed DC motor?

Brushed DC gear motor is a built-in brush device. The fixed main pole and brush are installed on the stator of the BDC motor, and the armature winding and commutator are installed on the rotor. The electric energy from the DC power supply enters the armature winding through the brush and commutator, generating armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, which makes the motor rotate and drive the load. BDC motor is the basis of all motors, it has the characteristics of fast start, timely braking, relatively simple control circuit and so on.
