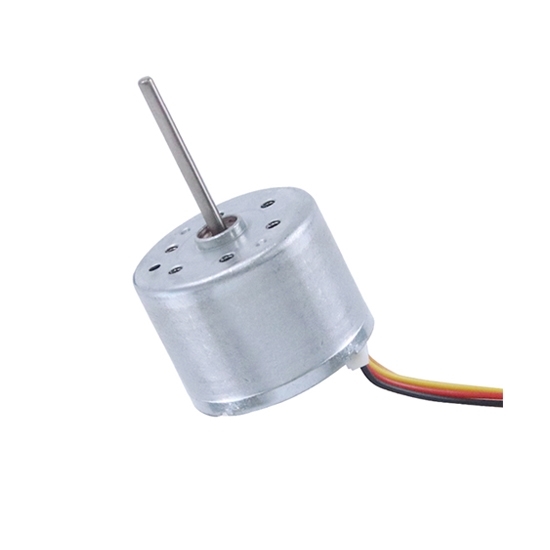

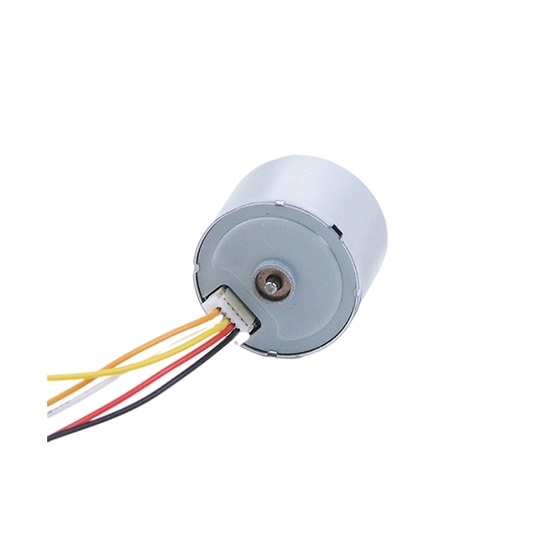

4500 rpm 12V 24V Small Brushless DC Motor

High speed brushless DC motor can be reached 9000 rpm. Carbon steel circular shaft has high strength and stiffness. Pure copper coil material makes brushless motor to run more smoothly and work with less noise.

Specification:

• Model Number: CCHN-2418
• Shaft Length: 19.3 mm
• Shaft Diameter: 2 mm
• Size: 24 mm (D), 43 mm (L)
• Construction: Permanent Magnet
• Wiring: 5 lines
• Weight: 90g
• Motor Type: Micro Brushless DC Motor
• Rated Power: 2.5W
• Rated Voltage: 12V DC, 24V DC
• Rated Current: 0.08A, 0.15A
• Noload Speed: 4500 rpm, 9000 rpm
• Noload Current: 0.035A, 0.05A
• Rated Torque: 16.2 g.cm, 33.6 g.cm
• Efficiency: 80%
• Warranty: 12 Months

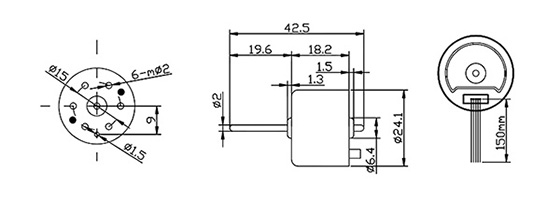

Dimension (mm):

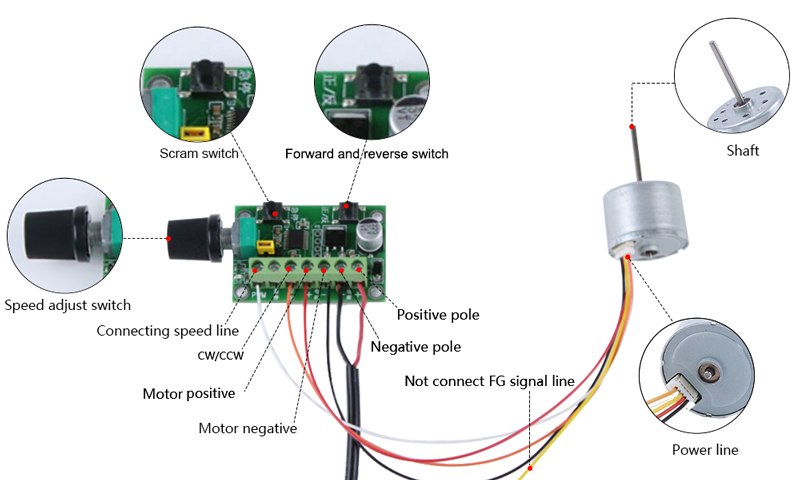

Details

Tips: Features of Brushless DC Motor:

• Brushless DC motor has the advantages of traditional DC motor, while eliminating carbon brush and slip ring structure.
  It can be low speed and high power operation, can save the reducer directly drive large load.
• Small size, light weight and large output.
• Excellent torque characteristics, medium and low speed torque performance is good, large starting torque, small starting current.
• Stepless speed regulation, wide speed regulation range, strong overload capacity.
• High efficiency, motor itself without excitation loss and carbon brush loss, eliminate multi-level deceleration.
• High reliability, good stability, strong adaptability, simple repair and maintenance.
• Shock resistance, low noise, small vibration, smooth operation, long service life.
