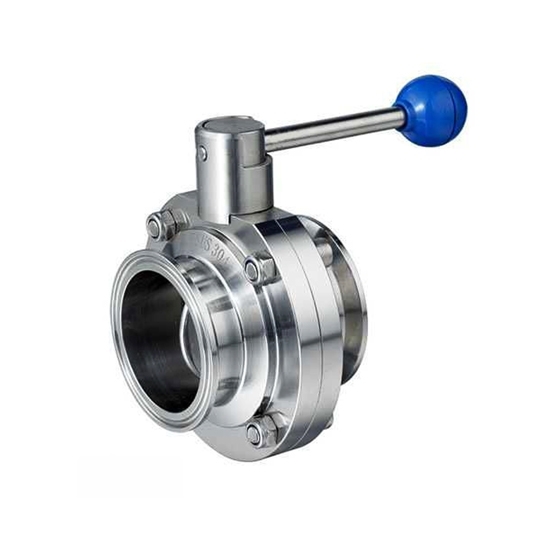

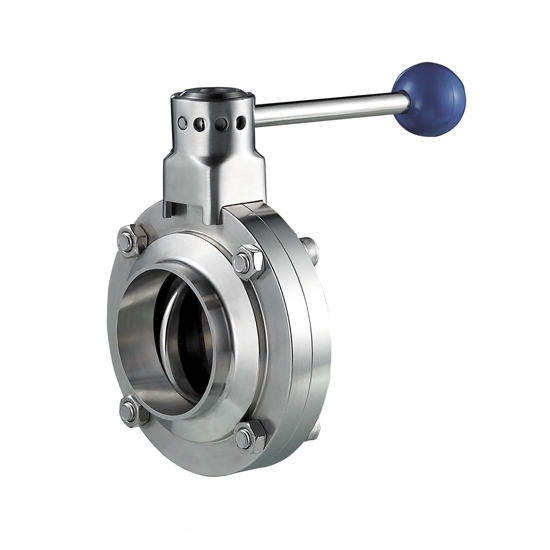

1.5 inch Stainless Steel Sanitary Butterfly Valve

1.5 inch Stainless Steel Sanitary Butterfly Valve

Welded and quick connect sanitary butterfly valve at factory price, with EPDM or PTFE seat, can be controlled by an actuator or manually operated with a handle, 1.5 inch size, 304 stainless steel body material, which is used in food-processing, pharmacy and chemical industries for flow control.

SKU: CCHN-BV-15I

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

1.5 inch manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.

Specification

Model	CCHN-BV-15I
Type	SS Sanitary Butterfly Valve
Size	1.5 inch
Connection Method (Optional)	Welded End/ Quick Connect End
Drive Method	Manual
Body Material	304 Stainless Steel (Default) / 316 Stainless Steel
Washer and Gasket	EPDM Comforms to PFA 177.2600
Handle	AISI 304/ PP
Surface Finishing	Ra≤0.8
Operating Torque	3Nm
Operating Temperature	-10℃~+120℃
Max. Pressure	1MPa
Min. Pressure	0.02MPa p.abs
Weight	1.8 kg
Certificate	PED97-23EC, FDA.177.2600

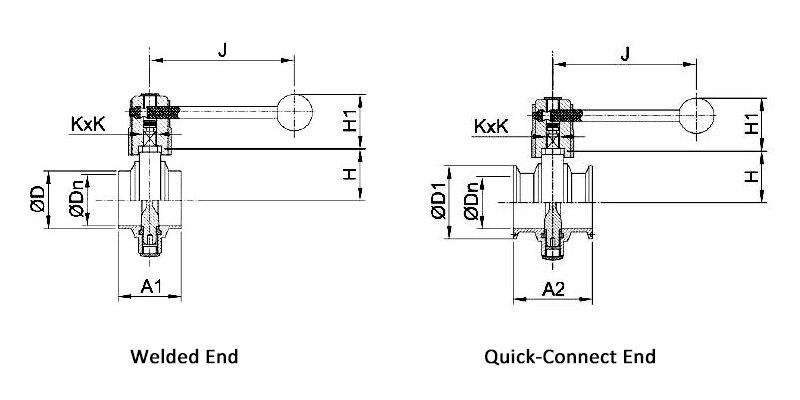

Dimensions (Unit: mm)

Dimensions of Welded End and Quick Connect End Stainless Steel Sanitary Butterfly Valve

Size	Dn	D	D1	J	H	H1	A1	A2
1.5 inch	35.1	38.1	50.5	126	44.5	43.5	50	70

Tips: What is tri clamp sanitary butterfly valve?

A sanitary butterfly valve is a stainless steel BF valve that uses a circular butterfly plate as an opening and closing part and rotates with the valve stem to open, close and adjust the fluid passage. The butterfly plate of the butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is fully open.
