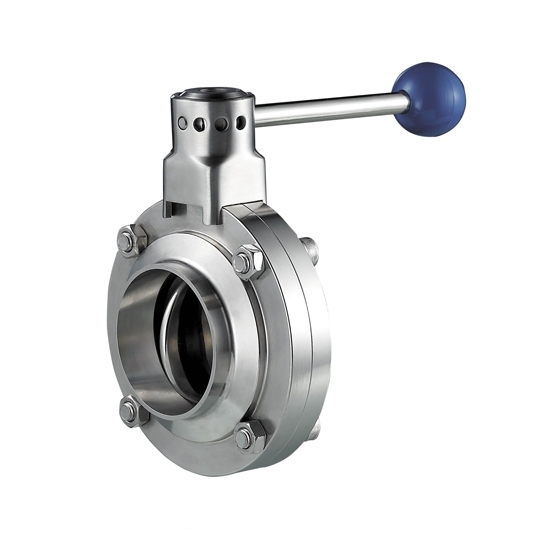

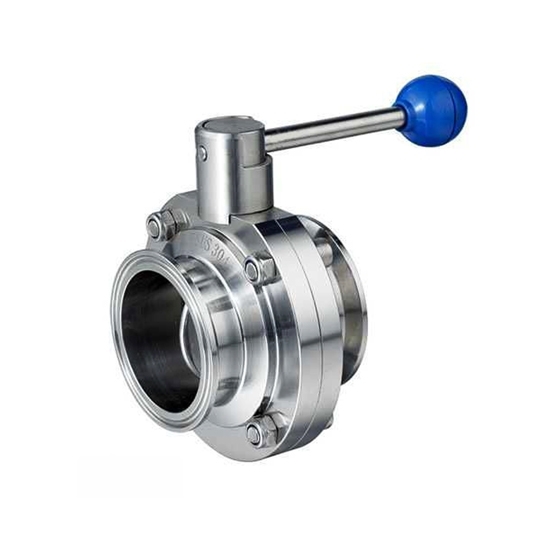

1/2 inch Stainless Steel Sanitary Butterfly Valve

1/2 inch Stainless Steel Sanitary Butterfly Valve

Low price welded and quick connect sanitary butterfly valve, 1/2 inch size, with EPDM or PTFE seat, can be controlled by an actuator or manually operated with a handle. It is a stainless steel hygienic valve used in food-processing, pharmacy and chemical industries for flow control.

SKU: CCHN-BV-12I

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High performance and high precision manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.

Specification

Model	CCHN-BV-12I
Type	SS Sanitary Butterfly Valve
Size	1/2 inch
Connection Method (Optional)	Welded End/ Quick Connect End
Drive Method	Manual
Body Material	304 Stainless Steel (Default) / 316 Stainless Steel
Washer and Gasket	EPDM Comforms to PFA 177.2600
Handle	AISI 304/ PP
Surface Finishing	Ra≤0.8
Operating Torque	3Nm
Operating Temperature	-10℃~+120℃
Max. Pressure	1MPa
Min. Pressure	0.02MPa p.abs
Weight	1.5 kg
Certificate	PED97-23EC, FDA.177.2600

Dimensions (Unit: mm)

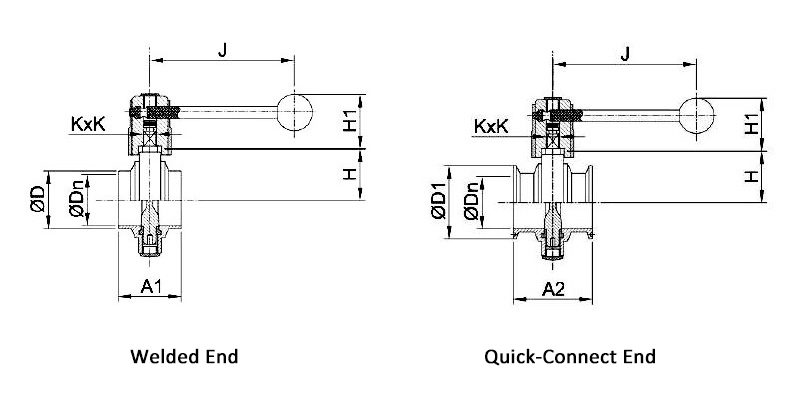

Dimensions of Welded End and Quick Connect End Stainless Steel Sanitary Butterfly Valve

Size	Dn	D	D1	J	H	H1	A1	A2
1/2 inch	9.7	12.7	25.4	126	40	43.5	50	66

Tips: Sanitary butterfly valve applications

Sanitary butterfly valves are hygienic BF valves which are used in the processing and production of products in some industries that require relatively high sanitary levels, such as beer, beverages, fruit juice, milk, bioengineering, pharmaceuticals and other fields.

The sanitary butterfly valve is made of food-grade stainless steel, which has the advantages of corrosion resistance and no toxic substances, so it has become the best choice for food processing.
