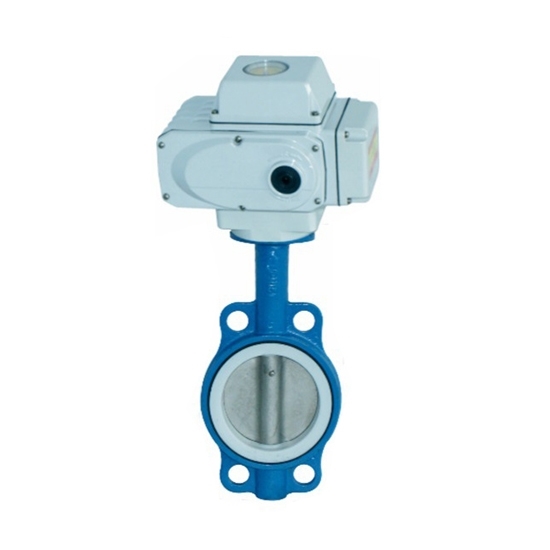

2" Electric Wafer Butterfly Valve

Compact electric actuated butterfly valve for sale at low price. Comes with double acting electric actuator, optional 110V AC, 220V AC, 380V AC, 24V DC power supply. 2 inch (DN50) port size, body material of cast iron and PVC available with EPDM seat. Electrically operated butterfly valve can control water, air, gas, oil and other liquid at -10 °C to 120 °C working temperature.

SKU: CCHN-EBV-50WF

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This electric butterfly valve cannot be used for drinking water.

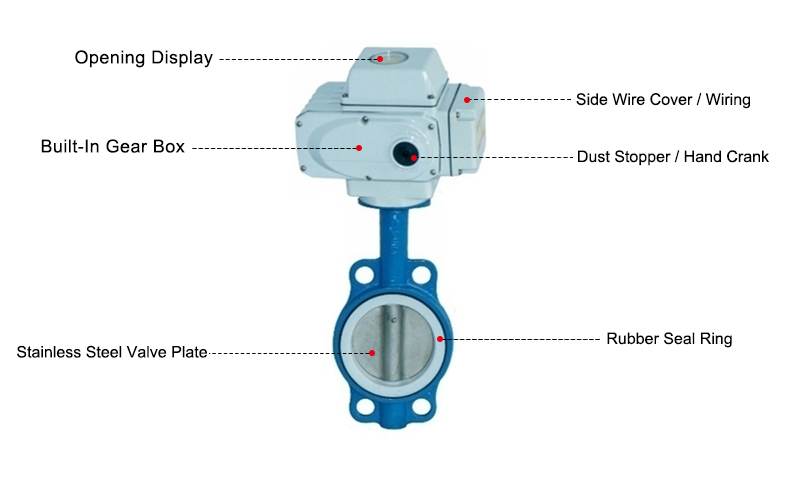

CCHN electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	CCHN-EBV-50WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	2 inch (DN50, 50mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	CCHN-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy

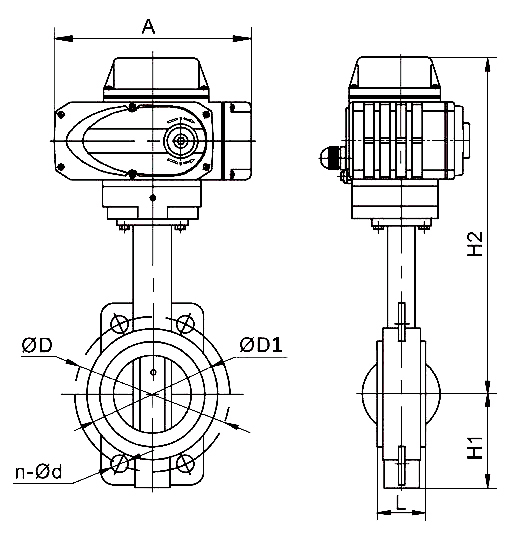

Wafer Butterfly Valve Body Dimension (Unit: mm)

Electric wafer style butterfly valve dimension

DN	L	H1	H2	A	D	D1	N-φd
50	42	80	296	160	120	99	4-23

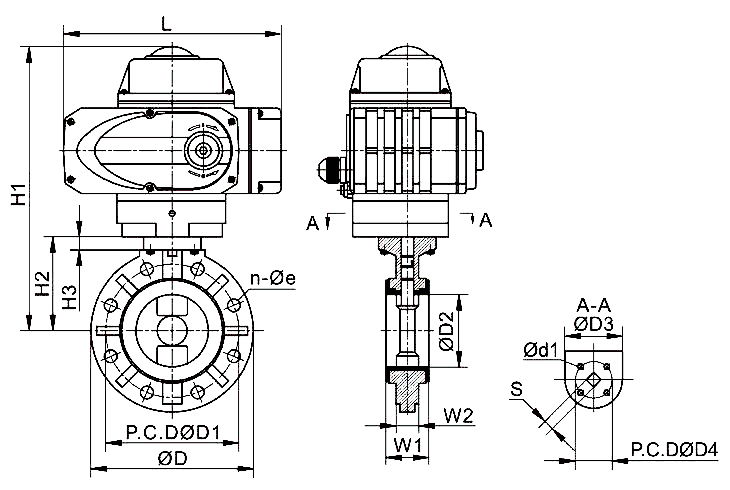

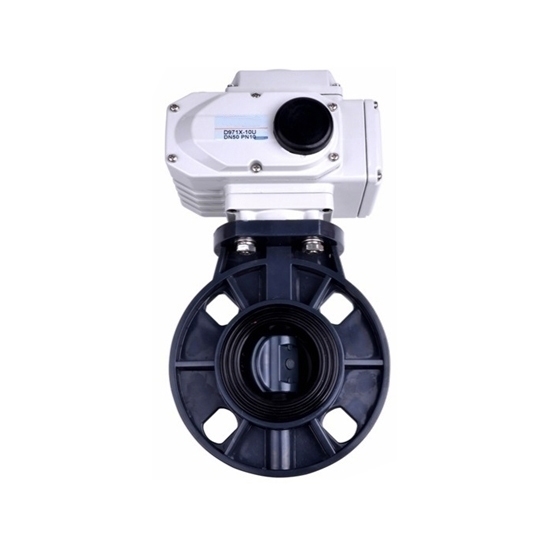

PVC Butterfly Valve Body Dimension (Unit: mm)

Electric PVC butterfly valve dimension

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
120	4-19	120.5	4-19	125	4-18	160	56.5	105	103	13	43	29	6.5	50	14	231	160

Details

Tips: Working principle of electric butterfly valve

After the electric butterfly valve is connected and debugged by the regulating electric actuator and the valve stem, the electric energy is used as the driving force to drive the hard-sealed butterfly valve plate, making a 0~90° partial rotary motion. Receive the 4~20mA signal from the industrial automation control system to precisely control the valve opening, so as to achieve the adjustment and control of different process parameters such as flow, temperature and pressure.
