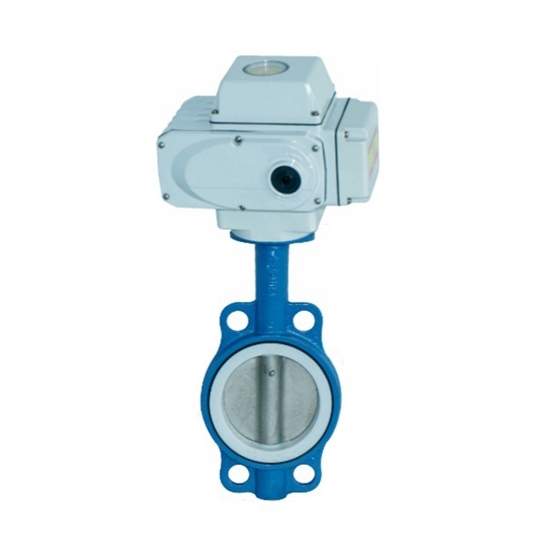

2-1/2" Electric Wafer Butterfly Valve

2-1/2 inch (DN65) electric butterfly valve comes with a double acting electric actuator to work. Heavy duty with low price, cast iron or PVC body, stainless steel or UPVC disc and EPDM seat, working at -10 °C to 120 °C. This electrically operated butterfly valve is a reliable device for air and flow control, selectable 110V AC, 220V AC, 380V AC, 24V DC power supply.

SKU: CCHN-EBV-65WF

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This electric butterfly valve cannot be used for drinking water.

Lightweight electric actuated flanged butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	CCHN-EBV-65WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	2-1/2 inch (DN65, 65mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	CCHN-KLST-05
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

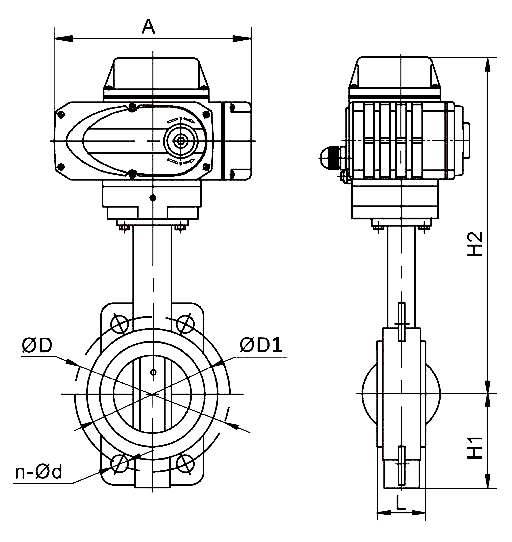

Electric wafer style butterfly valve dimension

DN	L	H1	H2	A	D	D1	N-φd
65	44.5	89	300	160	136	118	4-26.5

PVC Butterfly Valve Body Dimension (Unit: mm)

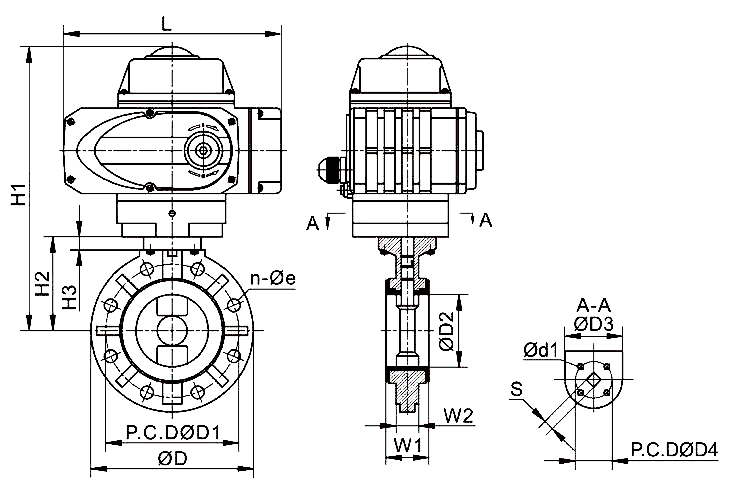

Electric PVC butterfly valve dimension

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
140	4-19	139.5	4-19	145	4-18	180	69.5	120	113	13	46	31	6.5	50	14	241	160

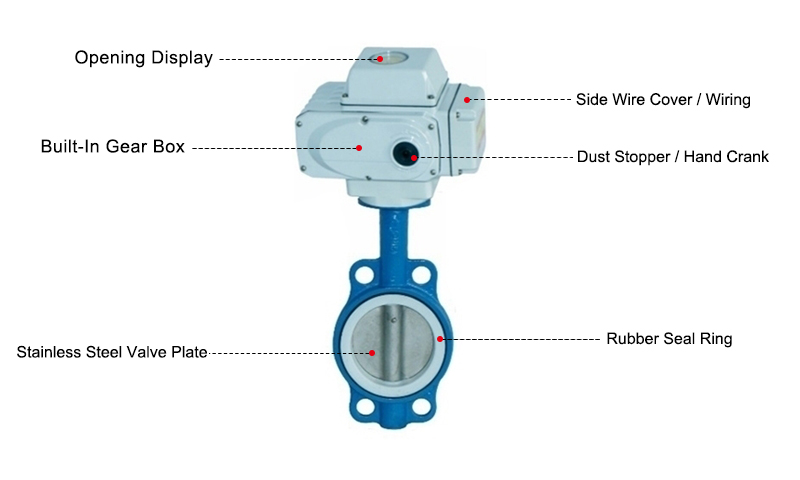

Details

Tips: Advantages of electric butterfly valve

The electric butterfly valve is convenient and quick to open and close, labor-saving, small fluid resistance, and can be operated frequently.
It has a simple structure, small size and light weight.
It can transport mud, with the least amount of liquid accumulated at the pipe mouth.
It can achieve good sealing under low pressure.
It has good adjustment performance.
