10" Electric Wafer Butterfly Valve

Industrial electric actuated butterfly valve for sale at factory price. Comes with double acting electric actuator, optional 110V AC, 220V AC, 380V AC, 24V DC power supply. 10 inch (DN250) port size, body material of cast iron with stainless steel disc and EPDM seat. Electrically operated butterfly valve can control water, air, gas, oil and other liquid at -10 °C to 120 °C working temperature.

SKU: CCHN-EBV-250WF

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This electric butterfly valve cannot be used for drinking water.

Factory price 10 inch electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	CCHN-EBV-250WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type
	Port Size	10 inch (DN250, 250mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	CCHN-KLST-60
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	150N.m, 9s 250N.m, 15s 400N.m, 20s 600N.m, 30s/ 60s
	Actuator Material	Aluminum Alloy

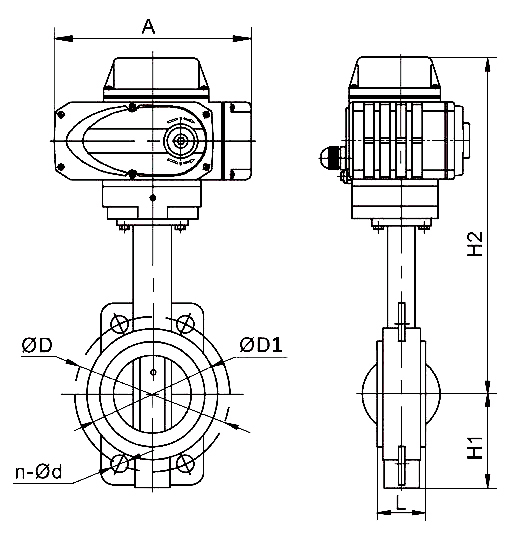

Wafer Butterfly Valve Body Dimension (Unit: mm)

Electric wafer style butterfly valve dimension

DN	L	H1	H2	A	D	D1	N-φd
250	65.5	203	532	255	357	319	4-29

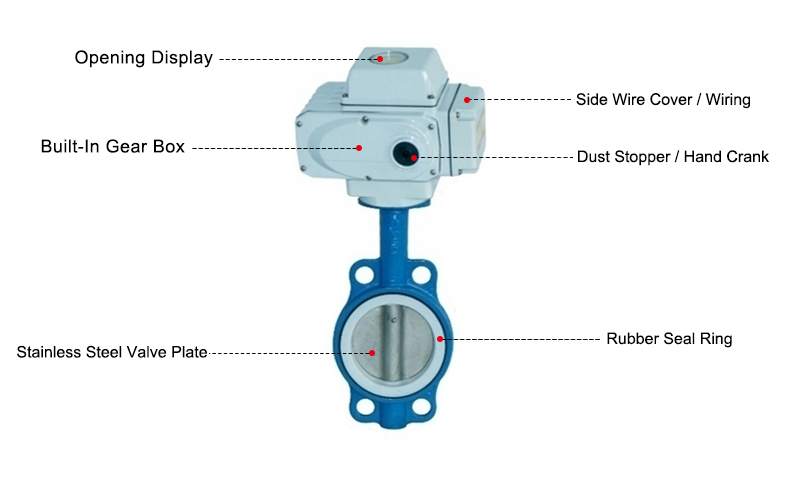

Details

Tips: How to maintain an electric actuated butterfly valve?

Each spring of the electric butterfly valve is only suitable for a certain range of outlet pressure, and the spring beyond this range should be replaced.
When the working temperature of the medium is high, the pilot piston type electric butterfly valve or the pilot metal bellows type electric butterfly valve is generally used.
When the medium is gas or water, the quick-acting diaphragm type electric butterfly valve or the pilot diaphragm type electric butterfly valve is generally selected.
When the medium is steam, pilot piston type or pilot metal bellows type electric butterfly valve should be used.
In order to facilitate the actual operation, adjustment and maintenance, the electric butterfly valve should generally be installed on the horizontal pipe.
