12" Pneumatic Wafer Butterfly Valve

Large diameter 12 inch pneumatic actuated wafer type butterfly valve for sale at factory price, 300mm (DN300) threaded port, equipped with double acting pneumatic actuator. Industrial air operated butterfly valve has cast iron body, EPDM seat and stainless steel disc, working pressure PN16, working temp -10 °C to 120 °C, high performance and reliable.

SKU: CCHN-PBV-300

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This butterfly valve cannot be used for drinking water.

Heavy duty large diameter 12 inch wafer type butterfly valve with pneumatic actuator, comes with 300mm (DN300) threaded port and stainless steel disc. Our high performance air actuated cast iron butterfly valve can work at high temperature below 120 °C, which is a reliable air tool for flow control.

Specification

Butterfly Valve	Model	CCHN-PBV-300
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type
	Port Size	12 inch (DN300, 300mm)
	Body Material	Cast Iron
	Seat Material	EPDM
	Disc Material	Stainless Steel (SS)
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	CCHN-AT160D
	Actuator Type	Double Acting
	Bore Size	160mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

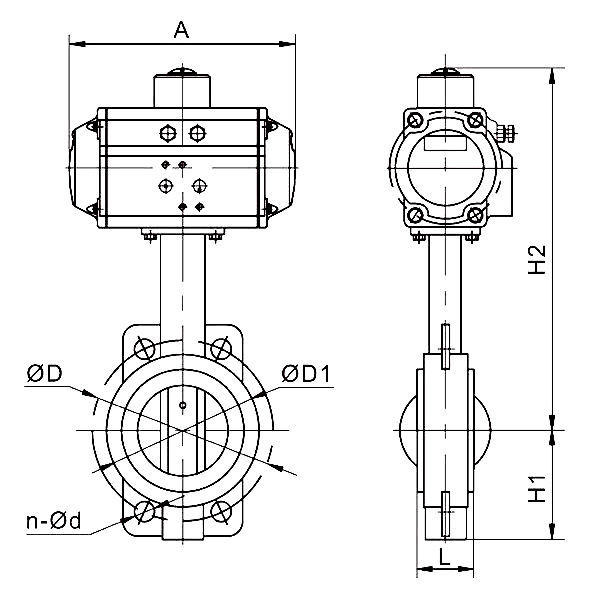

Body dimensions of pneumatic actuated wafer type butterfly valve

DN	L	H1	H2	A	D	D1	N-φd
300	77	242	577	450	407	370	4-29

Pneumatic Actuator Dimension (Unit: mm)

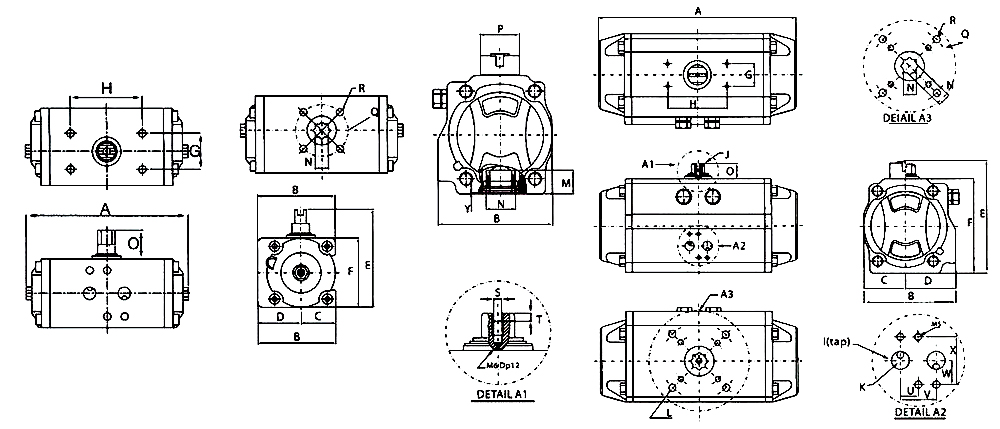

Pneumatic actuator dimension

CCHN-AT160D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	450mm	193mm	89mm	104mm	226mm	197mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	80mm	4mm	4mm	12mm	24mm	16mm	32mm

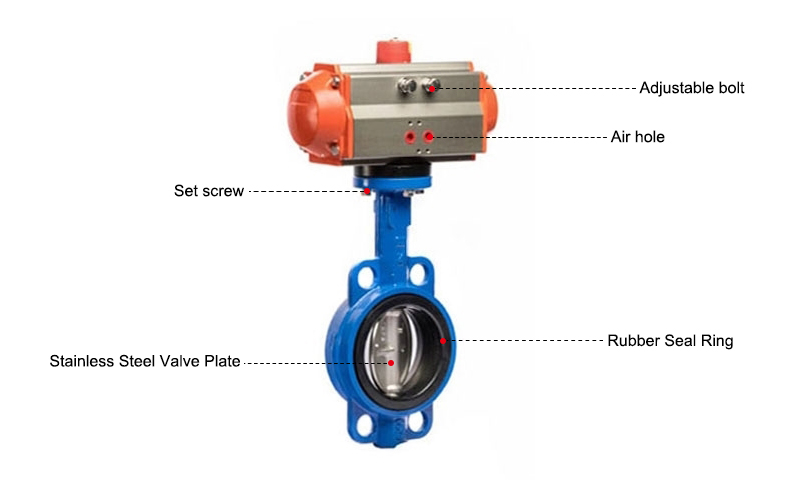

Details

Tips for installing a pneumatic butterfly valve

Before installation, check whether all parts of the pneumatic butterfly valve are missing. Check for debris in the valve body, blockage in the solenoid valve and muffler.
Put the valve and cylinder in the closed state.
Install the cylinder on the valve (the installation direction can be parallel or perpendicular to the valve body), and then check whether the screw holes are aligned. There will not be much deviation. If there is a little deviation, just turn the cylinder body a little. , and then tighten the screws.
After the installation is completed, debug the pneumatic butterfly valve.
It should be kept dry before installation and cannot be stored in the open air.
Before installing the butterfly valve, check the pipeline to ensure that there is no foreign matter such as welding slag in the pipeline
Open the butterfly valve completely, and use a wrench to tighten the bolts in diagonal order without washer. Do not over-tighten the bolts to prevent serious deformation of the valve ring and excessive opening and closing torque.
