16" Electric Flanged Butterfly Valve

Industrial electric actuated flanged butterfly valve for sale at factory price. Comes with double acting electric actuator, optional 110V AC, 220V AC, 380V AC, 24V DC power supply. 16 inch (DN400) thread port size, cast iron body with stainless steel disc and EPDM seat. Electrically operated butterfly valve can control water, air, gas, oil and other liquid at -10 °C to 120 °C working temperature.

SKU: CCHN-EBV-400WF

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This electric butterfly valve cannot be used for drinking water.

Industrial electric actuated flanged butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	CCHN-EBV-400WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Flanged Type
	Port Size	16 inch (DN400, 400mm)
	Body Material	Cast Iron
	Disc Material	Stainless Steel (SS)
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	CCHN-KLST-200
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 120V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	2000N.m, 100s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

Electric flanged butterfly valve dimension

DN	L	D	D1	D2	T	A	H	N-φd
400	216	585	515	484	32	280	580	16-26

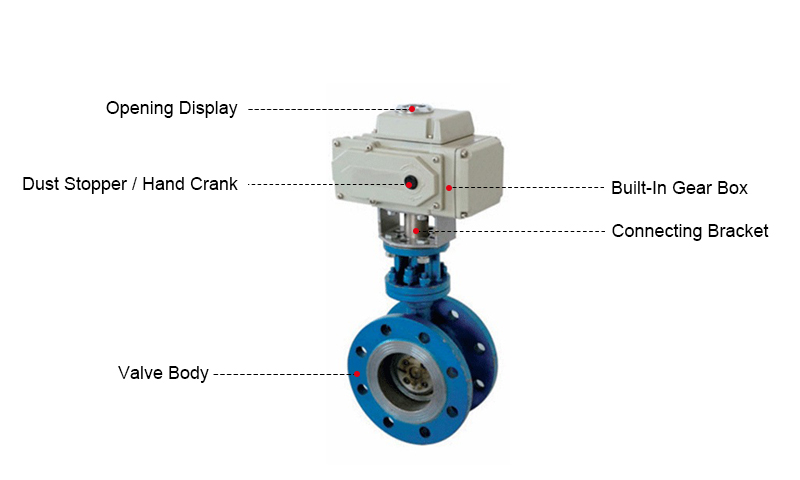

Details

Tips: What is an electric actuated butterfly valve?

The electric actuated butterfly valve is an important execution unit in the field of industrial automation control. The electric actuated butterfly valve is composed of an angular stroke electric actuator (0~90° partial rotation) and the butterfly valve as a whole through mechanical connection, which are jointly composed after installation and debugging. The electric butterfly valve has the characteristics of simple structure, small size, light weight, low material consumption, small installation size, rapid switching, 90° reciprocating rotation, small driving torque, etc. It is used to cut off, connect, and adjust the medium in the pipeline. It has good fluid control characteristics and shut-off sealing performance.
