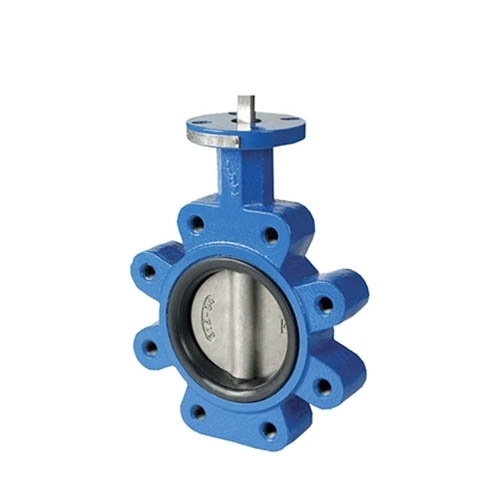

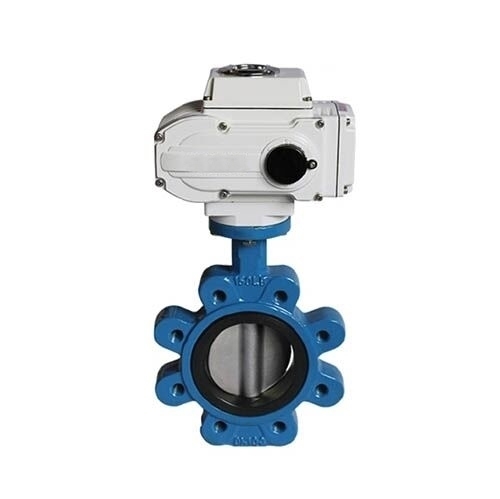

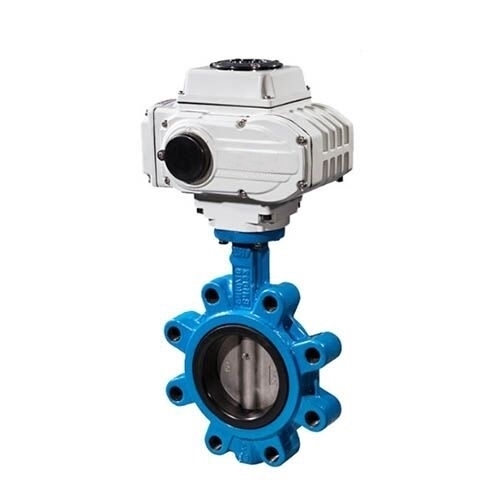

8" Electric Lug Type Butterfly Valve

Economic 8 inch (DN200) electric butterfly valve come with 30 electric actuator, work at temperature -30°C~60°C. Protection class IP65 and G1/2 water-proof cable connectors. Optional AC 110V, AC 220V, AC 380V, DC 24V, AC 24V voltage and stainless steel disc and stem. The lug type butterfly valve easy to maintain, install. Control air, water, steam and so on.

SKU: CCHN-HK60-DMS200-30

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This electric butterfly valve cannot be used for drinking water.

Lug type butterfly valve 8 inch (DN200) is a good device to control flow, working at -30°C~60°C. Compact structure, easy to handle and installation.

Electuator Specification

Mode	CCHN-HK60-DMS200-30
Protection Class	IP65
Ambient Temp.	-30°C~60°C
Installation Angle	Any
Electrical Connection	G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage Optional	AC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Optional	8" (DN200 200mm)
05 Actuator Control Circuit	A Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
Voltage	AC 220V	DC 24V	AC 380V
Torque Output	300Nm	330Nm	300Nm
90° Cycle Time	15S/30S/60S	9S	25S
Working Current	0.45A	1.03A	0.53A
Drive Motor	100W	30W	117W

Body and Valve Specification

Body		Valve components
Corresponding Valve Port Size	8" (DN200, 200mm)	Seating Material	NBR, EPDM, VITON (Default PTFE)
Body Material	Stainless Steel	Disc Material	Stainless Steel
End Connection	Wafer Flange	Stem Material	Stainless Steel
Operating Pressure	< 1.6MPa	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Structure	Midline Structure/ A-type	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam

Butterfly Construction

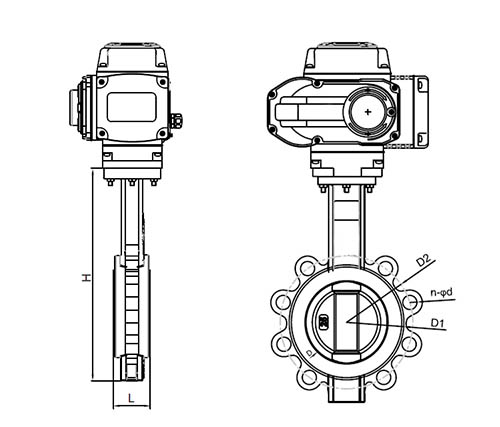

Butterfly valve construction

Dimension	Inch	D	D1	D2	L	H	n-φd
DN200	8"	202.5 mm	270 mm	295 mm	55 mm	428 mm	12-M20 mm

Actuator Dimension (mm)

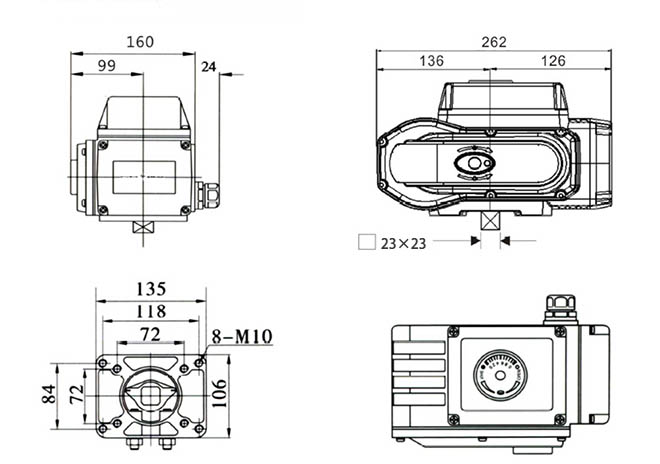

Actuator 30 size

Details

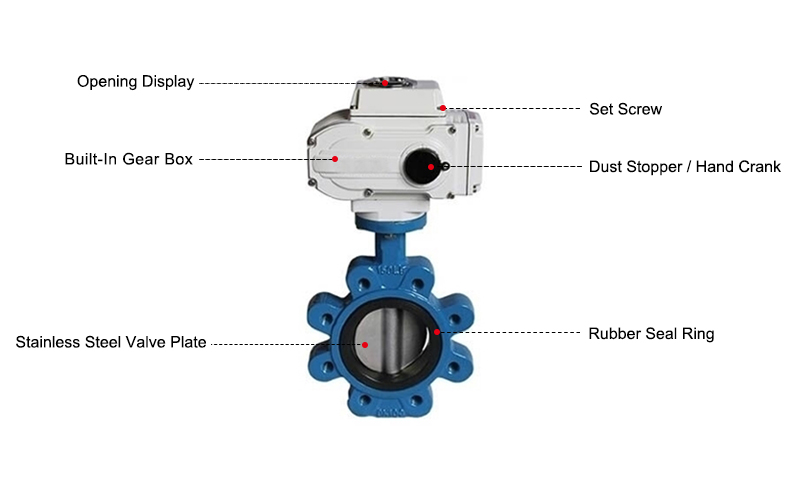

8" Electric Lug Type Butterfly Valve Details

Features

Accurate wafer type butterfly valve turbo-worm structure can output large torque with high efficiency and little noise (Max.50 decibel).
Long service life. Self-lock function can stop reverse rotation. Drive part is stable and reliable without additional lubrication.
Wafer butterfly valve captive bolts won't fall off when cover is disassembled.
Star square hole is easy for square valve stem linear or 45° rotation application.
Both vertical and horizontal assemble are available.
Control diagram complies with single phase or three phase wiring standard, reasonable wiring diagram and connection terminal can meet requirement of other optional functions.
Wafer valve with high sealing performance, standard protection class is IP67.
Voltage optional: AC 110V, AC 220V, AC 380V, DC 24V, AC 24V.
Lug type butterfly valves possess compact structure, portable, easy to maintain.
Optional Function: over torque protectors, dehumidify heater, stainless steel coupling & yoke.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf wafer butterfly valve for home. If you have any questions, please feel free to contact us.

Tips:What are the advantages of lug type butterfly valve?

The opening and closing of the wafer butterfly valve is very simple, because the resistance of the fluid is small, the process of starting and stopping is labor-saving, and the service life is also long.
The structure of the wafer butterfly valve is simple, the occupied area is small, and the product quality is light.
Wafer butterfly valves can withstand very high temperatures, generally speaking, they can withstand high temperatures up to 650 degrees Celsius.
Adjustable high performance wafer butterfly valve.
