0.1μF Tantalum Capacitor, 35V

0.1μF tantalum capacitor is a subtype of electrolytic capacitor. CCHN provides high quality and good price tantalum capacitor for you.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

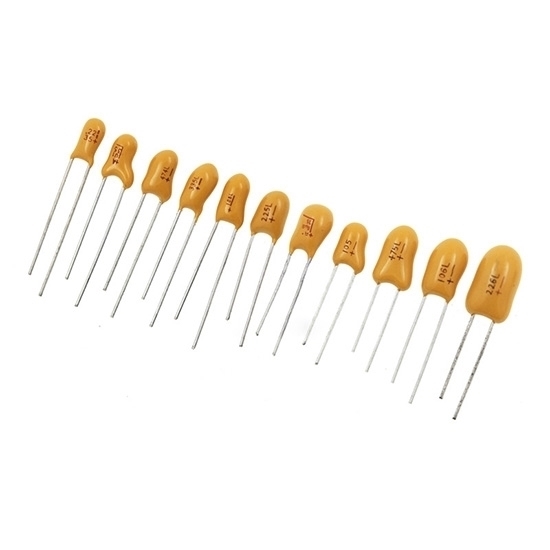

DIP Tantalum Capacitor Dimension: (Unit: mm)

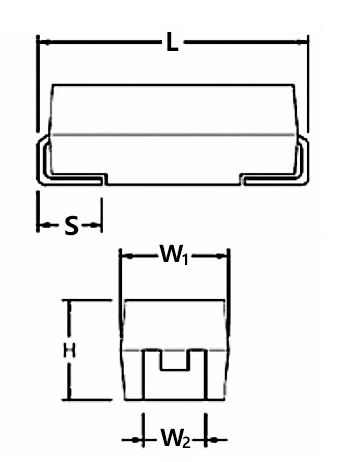

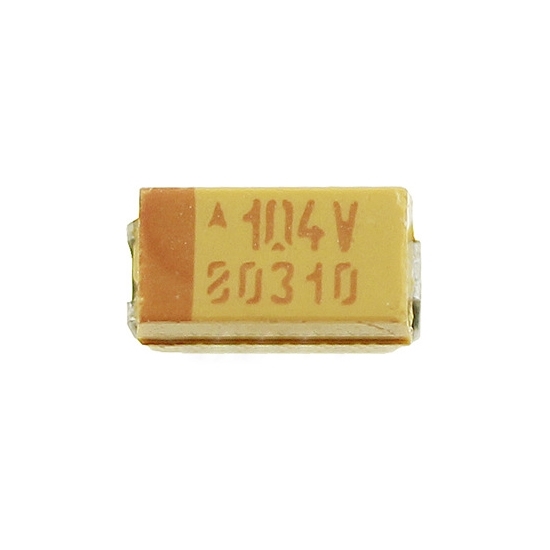

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 3.2, S= 0.8, W₁= 1.6, W₂= 1.2, H= 1.6

Tips: What is Tantalum Capacitor?

Tantalum capacitors are a subtype of electrolytic capacitors. They are made of tantalum metal which acts as an anode, covered by a layer of oxide which acts as the dielectric, surrounded by a conductive cathode. The use of tantalum allows for a very thin dielectric layer. This results in a higher capacitance value per volume, superior frequency characteristics compared to many other types of capacitors and excellent stability over time. Tantalum capacitors are generally polarized, which means that they may only be connected to a DC supply observing the correct terminal polarity. Most often in the form of surface mounted devices (SMD).
