45+7.5 MFD (uF) Air Conditioner Capacitor, Dual Run Capacitor

45/7.5 mfd (uF) air conditioner capacitor can help the motor start and run. 450V high voltage capacitor is available with a dual run capacitor, applied in air conditioning, refrigerator, and compressor.

Features and applications

45+7.5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. CCHN air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: CCHN-CBB65-4575
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

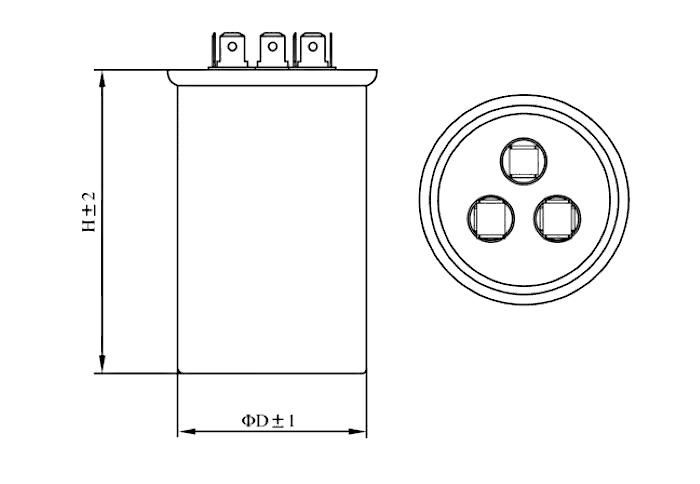

45/7.5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 125mm)

Tips for installing air conditioning capacitors

When installing the air conditioning capacitor, the power must be turned off before installation, so as to prevent safety accidents caused by operational errors. When using tools, users need to pay attention to the correct use of electric pencil meters to prevent accidents caused by the careless operation. If you really can not replace it yourself, you need to seek help from professionals.
