50+5 MFD (uF) Air Conditioner Capacitor, Dual Run Capacitor

50/5 uF air conditioner capacitor features 450V rated voltage, low dissipation, high insulation resistance and good self-healing character. HVAC capacitor with a dual run capacitor is commonly used for air conditioning, to help in the starting of the compressor and the condenser fan motor.

Features and applications

50+5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. CCHN air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: CCHN-ACBB65-505
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

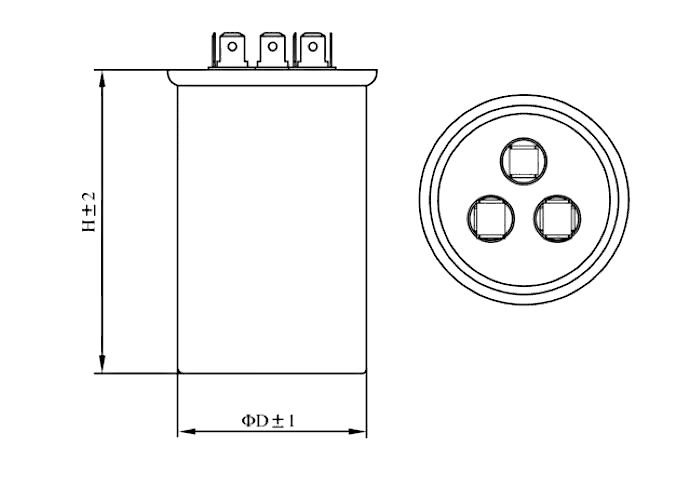

50/5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 125mm)

Tips: What problems will occur when the air conditioner capacitor is broken?

Indoor air conditioners are equipped with two capacitors, the larger the compressor capacitor, the smaller the external motor capacitor, different capacitor failure presented by the situation also differs.

• Compressor capacitor is broken will appear vibration and accompanied by a lot of noise, the sound and through the current is similar, and wait for a period of time, it will stop running.
• When the external motor capacitor is broken, it will stop by itself after working normally for a period of time, and if there is a fault code, there will be high pressure and exhaust temperature protection.
