65+7.5 MFD (uF) Air Conditioner Capacitor, Dual Run Capacitor

The 450V air conditioner capacitor is an AC capacitor. 65/7.5 uF HVAC capacitor with a dual run capacitor is commonly used for air conditioning, to help in the starting of the compressor and the condenser fan motor.

Features and applications

65+7.5 mfd air conditioner capacitor has advantages of low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with the inner anti-explosion device, etc. It is applied in air conditioning, refrigerator, and compressor. CCHN air conditioner capacitor is helpful for motors starting and running.

Specifications

Model: CCHN-CBB65-6575
Ambient Temperature: -40~85℃
Rated Voltage (AC): 450V
Range of Capacitance: 1+1~80+15
Testing Voltage (VAC): T-T: 2Un/2S, T-C: ≥2400VAC/2S
Dissipation Factor: tan δ≤0.002 (100Hz)
Operating Frequency: 50/60Hz
Capacitance Tolerance: ±5% or fulfilled upon request

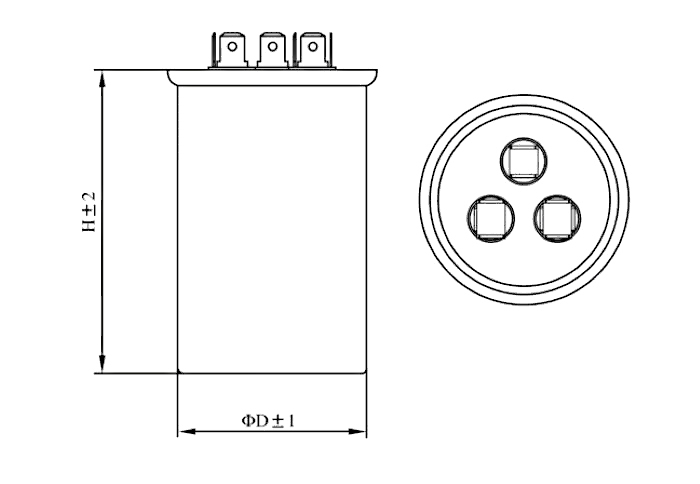

65/7.5 MFD Air Conditioner Capacitor Dimensions (D: 50mm H: 125mm)

Tips: Air conditioner capacitor features

Air conditioner capacitors have large heat dissipation areas, high voltage resistance and long service life. The air conditioner capacitor has a built-in reliable explosion-proof device and discharge resistor, which has reliable safety performance. The capacitor has a small tolerance so that it does not produce short-circuit current overshoot and does not shorten its life.

Because of such characteristics, the air conditioner capacitor has become an indispensable part of the overall operation of the air conditioner. It must be carefully selected from a professional analysis.
