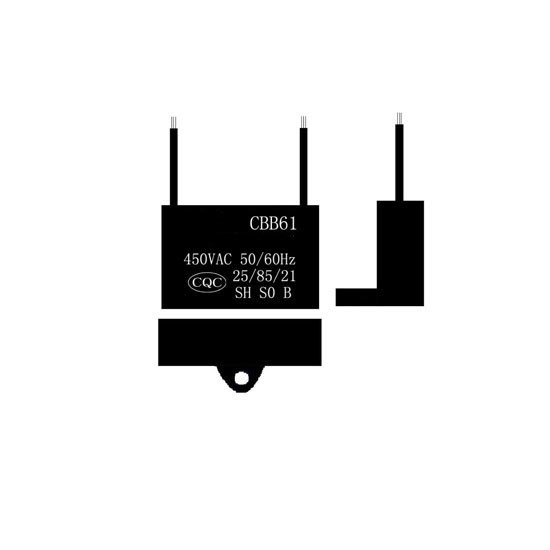

1.2μF 450V Ceiling Fan Capacitor

2 Wire capacitor ceiling fan rated voltage 450V, 1.2 mdf capacity, low loss at high frequencies, suitable for higher currents, high insulation resistance and long service life, explosion-proof design, can be used indoor and outdoor.

Specification

• Model: CCHN-FC-CBB61-012
• Capacity: 1.2μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 36(W) x 11(L) x 22(H)mm
• Certificate: CE, CQC

1.2μF Ceiling Fan Capacitor 2 Wire Connection Diagram

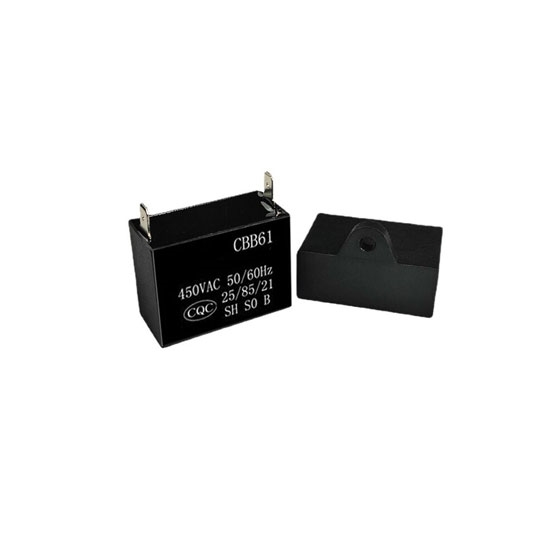

Ceiling Fan Capacitor Details

Tips: Is the "medium" of non-polarized capacitor and polarized capacitor the same?

The answer is different, the medium of capacitor is the material between the two poles of capacitor, most of the polarized capacitors use electrolyte as the medium material, generally the capacitor of the same volume has a large capacitance. In addition, the capacitance of the same volume of polarized capacitors made by different electrolytic materials and processes will be different. Moreover, the voltage resistance and the dielectric material are also closely related. There are many materials for non-polarized capacitors, but most of them use metal oxide film, polyester, etc. The reversible or irreversible performance of the dielectric determines the environment of polarized and non-polarized capacitors.
