220μF 35V Aluminum Electrolytic Capacitor

220μF 35V electrolytic capacitor for sale at reasonable price. High voltage electrolytic capacitor with cap. tolerance is ±20%, direct plug installation type, 10% dissipation factor. The power capacitor has advantages of high reliability, high ripple current, small size and long service life.

SKU: CCHN-EC-220UF35V

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap price aluminum capacitor with operating tempertaure -40~105℃, 5000 hours endurance. Aluminum electrolytic capacitor is widely used in automotive, smart home, medical, industrial control and new energy industries.

Features

Endurance: 105℃- 2000 hours up to 5000 hours
Low impedance and high ripple current
High reliability
Wide voltage range

Specification

Model		CCHN-EC-KF221M
Series		Low impedance 105°C type
Capacity		220 ㎌
Rated voltage		35V
Installation Type		Direct plug
Size		8*11.5 mm
lead spacing		3.5 mm
Operating temperature		-40~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		10%
Low temperature characteristic at 120Hz (Z ratio max.)		3 (Z-25℃/ Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	5000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value

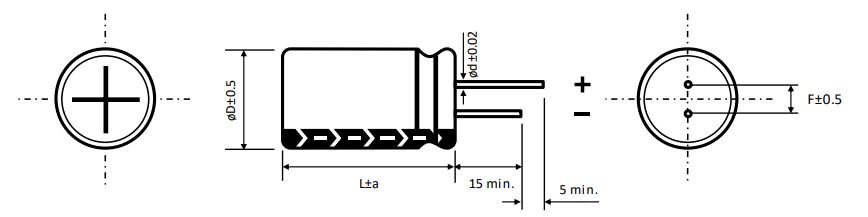

Dimension (mm)

Electrolytic capacitor dimension

Model	Dimension (mm)
CCHN-EC- KF221M	∅D	10
	F	5
	∅d	0.6
	a	1.5

Tips: How to Install Aluminum Electrolytic Capacitor?

Verify the polarity of the capacitors.
Do not use the capacitors if they have been dropped on the floor.
Do not deform the cases of capacitors.
Verify that the lead spacing of the capacitor fits the hole spacing in the PC board before installing the capacitors. Some standard pre-formed leads are available.
