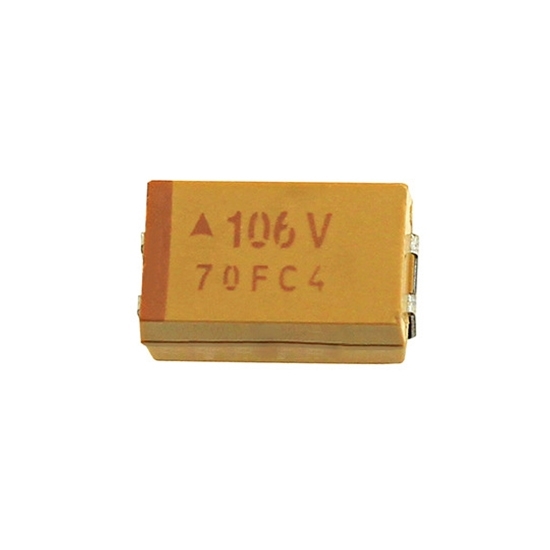

10μF 35V Tantalum Capacitor

10μF 35V tantalum capacitor matches with DIP and SMD two types of Encapsulation type. Tantalum capacitor applies in mobile phone, printer and electric tool.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

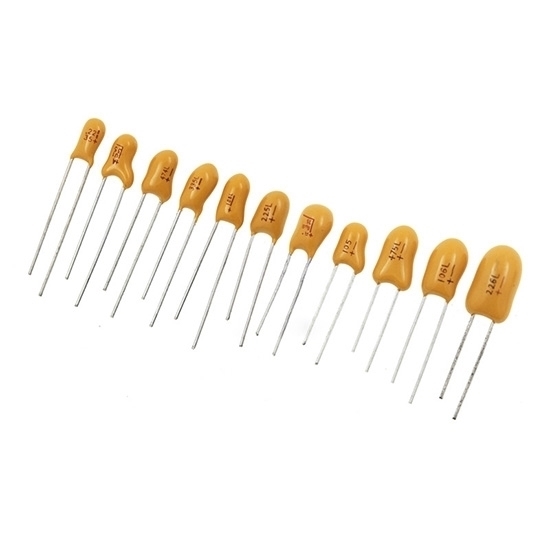

DIP Tantalum Capacitor Dimension: (Unit: mm)

SMD Tantalum Capacitor Dimension: (Unit: mm)

D: L= 7.3, S= 1.3, W₁= 4.3, W₂= 2.4, H= 2.8

Tips: What is SMD Tantalum Capacitor?

Surface mount tantalum capacitors are widely used in modern electronics equipment. When designed with sufficient margins they provide reliable service and enable high values of capacitance to be obtained within the small package sizes needed for modern equipment.

Aluminium electrolytics were not initially available in surface mount packages as they were not able to withstand the temperatures needed in soldering. As a result tantalum capacitors which were able to withstand the soldering process were almost the only choice for high value capacitors in assemblies using surface mount technology.

Now that SMD capacitors are available, tantalum is still used on surface mount printed circuit boards as they offer an excellent size and performance parameters, but electrolytic capacitors tend to be used more in newer electronic designs because of the cost differential between these two electronic components.
