100μF 16V DIP Tantalum Capacitor

DIP tantalum capacitor with 16V voltage for sale. 100μF DIP tantalum capacitor with high precision and long service life. 100μF tantalum capacitor applies in mobile phone and large scale water filtration equipment.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Capacitance: 100μF
• Rated Voltage: 16V
• Type: DIP
• Equivalent Series Resistance: 1
• Tolerance: 10%
• Working Temperature: -40 ℃— +125 ℃
• Lead Spacing: 1 mm
• Net Size: 1 mm
• Height Mounting (Maximum): 1 mm

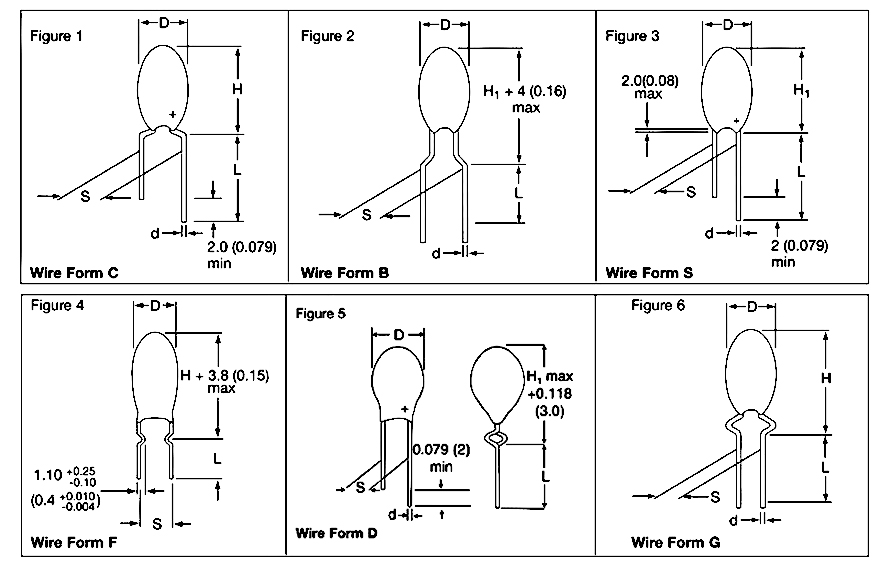

DIP Tantalum Capacitor Dimension: (Unit: mm)

Tips: Polarity of Tantalum Capacitor

Tantalum capacitors are exceptionally polarized devices. While aluminum electrolytic capacitors, which are polarized as well, might survive a briefly applied reverse voltage, tantalum capacitors are very sensitive to reverse polarization. If a reverse polarity voltage is applied, the dielectric oxide breaks down, sometimes forming a short circuit. This short circuit may later cause thermal runaway and destruction of the capacitor. It should be noted that tantalum capacitors usually have their positive terminal marked, in contrast to aluminum electrolytic capacitors, which have their negative terminal marked on the casing.
