4hp (3kW) Stainless Steel Centrifugal Pump

Cost-effective stainless steel centrifugal pump with rated power 4hp (3kW), rated voltage 3-phase 380V, three kinds of accessories for selection. It has the advantages of wide range of performance, small size, simple structure, easy operation, low operating cost, etc.

SKU: CCHN-BAW-165

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Stainless steel sanitary pump with 15t/ h flow rate, 24m lift (water column), 51mm inlet/ outlet size. It is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.

Specification

Model	CCHN-BAW-165
Rated power	4hp (3kW)
Rated voltage	380V, please contact us for 1 phase 240V 60Hz and other voltage types.
Phase	3 phase
Accessories	Clamp + gasket + quick connector/ Clamp + gasket + sanitary hose joint/ Union
Flow rate	15t/ h
Lift (water column)	24m
Inlet/ outlet size	51mm
Outer size	L580mmW270H400m
Weight	45kg
Warranty	12 months

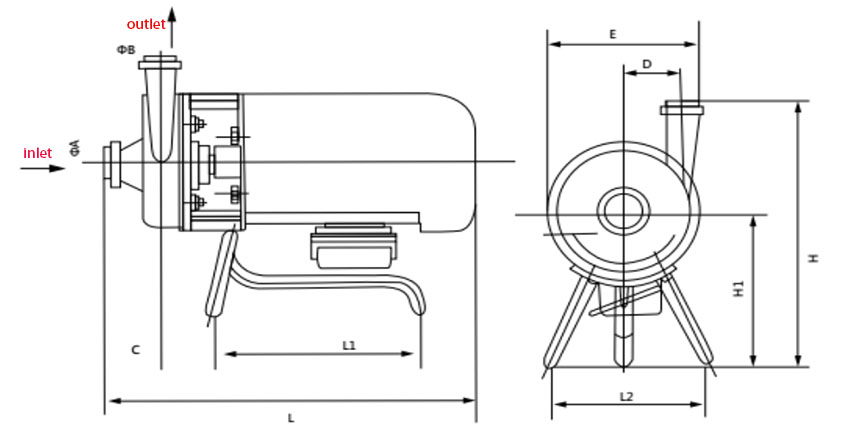

Dimension

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-165	51	51	95	75	250	600	400	220	450	255

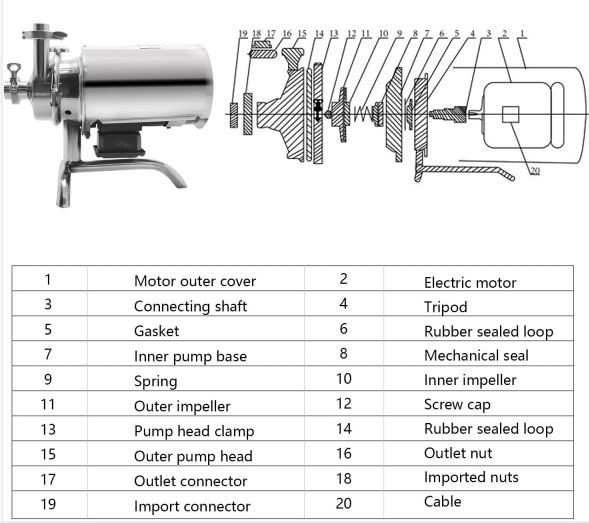

Product information

Tips: Differences of Stainless Steel Centrifugal Pump and Self-priming Pump.
1. Different composition: the former is composed of 6 parts, and the latter is composed of 5 parts.
2. The starting method is different: the former fills the water inlet pipe and the pump body with water or draws out the air from the water inlet pipe, and the latter adds start-up circulating water to the pump body.
3. The device is different: the former needs a bottom valve and a suction device at the outlet of the water inlet pipe, while the latter needs a filter.
4. Different using: the former is liquid conveying, with a large flow rate and field control range, while the latter can change water into spray, with stable operation and convenient maintenance.
