7.5-50 HP Vertical Multistage Centrifugal Pump, 3 Phase, DN100 Outlet

The inlet and outlet of stainless steel DN100 multistage centrifugal pump are located in the same straight line, which is suitable for pipeline connection and 360 degree movable flange is adopted. Each impeller is connected to a common shaft, and the pump is typically driven by an electric motor.

Features:

• Excellent hydraulic model and advanced manufacturing technology, greatly improve the performance and service life of the pump.
• Mechanical seals made using hard alloy and fluorine rubber, improve the reliability of operation and the temperature of the transport medium.
• Compact structure, small size, lightweight, low noise, significant energy-saving effect, convenient maintenance.
• The inlet and outlet of the pump are located on the same level and can be directly used in the pipeline.

Specification:

Structure:

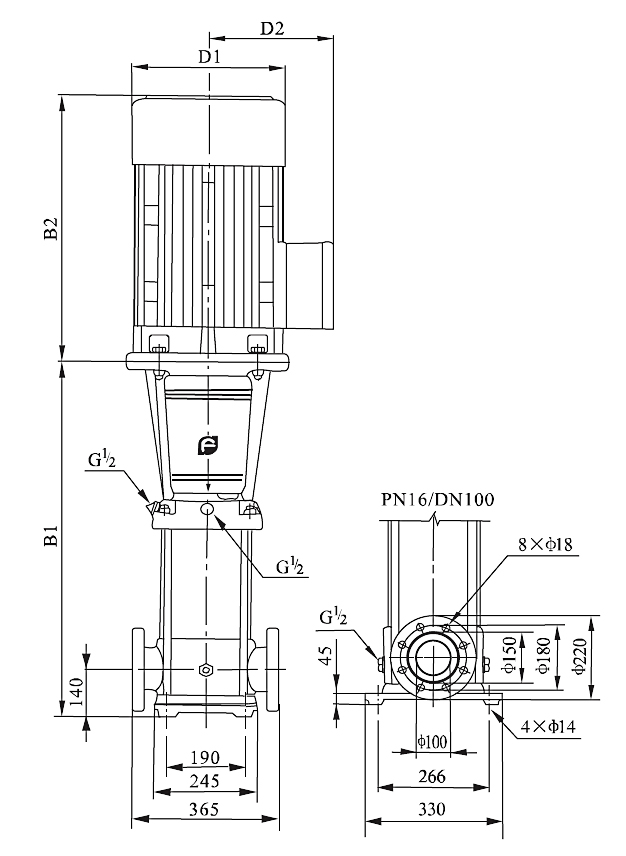

Mounting Dimension (Unit: mm)

Tips: What is a Vertical Centrifugal Pump Used For?

• Chemical Processing. Vertical centrifugal pumps are used in various chemical processing industries for transferring corrosive, abrasive, or hazardous fluids. The vertical design makes it easier to ensure proper fluid drainage and prevent the buildup of corrosive materials.
• Water and Wastewater Treatment. These pumps are commonly employed in water supply, sewage treatment, and wastewater handling systems. The vertical design allows for efficient pumping of fluids from deep wells, reservoirs, or underground systems.
• Industrial Applications. Vertical centrifugal pumps find use in a wide range of industrial applications, including mining, power generation, pulp and paper, oil and gas, and more. Their versatility and ability to handle different fluids make them valuable tools in industrial processes.
