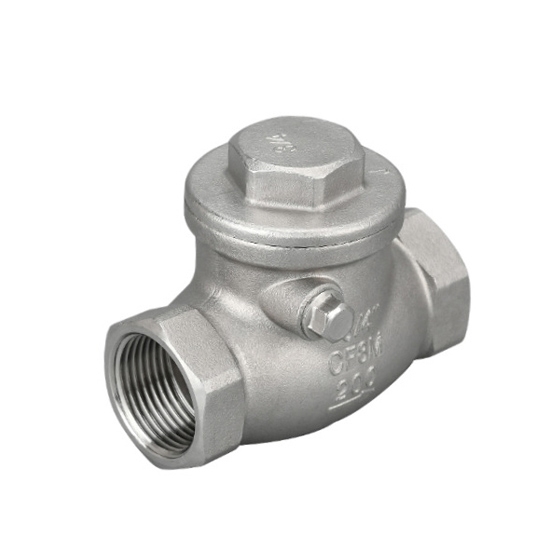

1" Stainless Steel Swing Check Valve, Horizontal

Note: This check valve cannot be used for drinking water.

The provided 304/316 stainless steel swing check valve can resist corrosion, high temperature and high pressure. 1"(DN25) horizontal check valve with 200WOG and BSP/BSPT/NPT thread, suitable for applications where backflow prevention is required.

Specifications

• Model: CCHN-H14W
• Check Valve Type: Swing
• Shape: Horizontal
• Nominal Diameter: 1 inch (25mm)
• Working Pressure: 200 WOG
• Product Material: 304/316 Stainless Steel
• Connection Form: Thread
• Thread Standard: BSP, BSPT, NPT
• Temperature Range: -20°C~300°C
• Weight: 0.47kg
• Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Applications

A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Tips: Advantages of Stainless Steel Swing Check Valves in a Piping System

Stainless steel swing check valves offer several advantages when used in a piping system, including:

• Corrosion resistance: Stainless steel is highly resistant to corrosion, making it an ideal material for use in harsh or corrosive environments. Stainless steel swing check valves can withstand exposure to a wide range of chemicals and fluids without corroding, which helps to ensure the integrity and longevity of the valve.
• High temperature and pressure capability: Stainless steel can withstand high temperatures and pressures, making it suitable for use in a wide range of industrial applications. Stainless steel swing check valves are designed to handle high-pressure systems and high-temperature fluids and gases.
• Low-pressure drop: Stainless steel swing check valves are designed to operate with minimal pressure drop, which helps to maintain the efficiency of the piping system and minimize energy consumption.
• Automatic operation: Stainless steel swing check valves operate automatically, without the need for external
  power, which makes them a reliable and efficient option for backflow prevention.
• Versatility: Stainless steel swing check valves are available in a range of sizes, pressure ratings, and materials to suit different applications and operating conditions, making them a versatile option for a wide range of industrial applications.
• Easy maintenance: Stainless steel swing check valves are relatively easy to maintain and repair, which helps to reduce downtime and maintenance costs over the life of the valve.
