4 amp 2 pole Miniature Circuit Breaker

Factory price 4 amp 2 pole miniature circuit breaker (MCB) is a micro electrical switch that meets IEC standard to provide supplementary protection for the electrical equipment with 6kA rated short circuit breaking capacity, C curve trip characteristic, sand afety used in DIN rail mounting.

SKU: CCHN-MCB-2P04

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Favorable price double pole 4 amp miniature circuit breaker is a protective electrical switch designed to disconnect a circuit in case of faults, such as overloads or short circuits. This mini MCB breaker ensures the safety of conductors by preventing excessive current flow that could cause overheating or damage.

Double Pole MCB Breaker Information

Rated Current: 4 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 2 poles
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		CCHN-NB8-632PC04
Rated Current		4A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		2P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

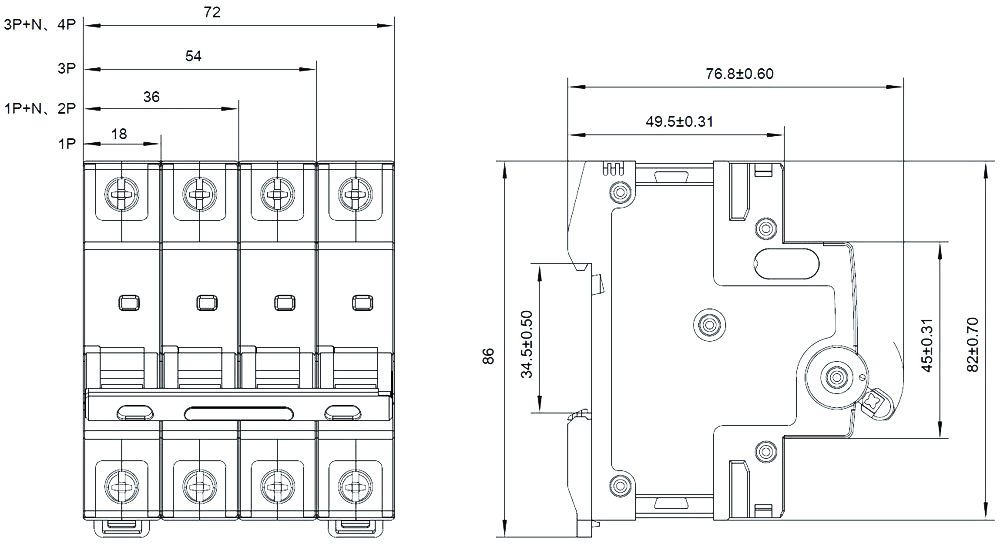

Double Pole MCB Breaker Dimensions (Unit: mm)

4 amp 2 pole Miniature Circuit Breaker Dimensions

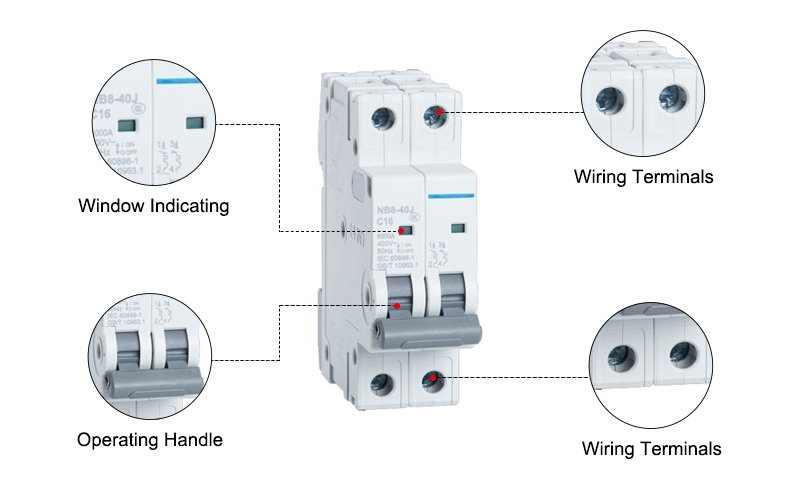

Details

Tips: Features of miniature circuit breaker

The rated short-circuit breaking capacity of the micro circuit breaker is high, and some rated current levels can reach more than 10KA.
MCB breaker has a double wiring function, which can easily connect a standard bus bar and flexible wire.
Mini circuit breaker is a combined terminal block with finger protection and higher safety.
With energy storage mechanism operation, the contacts close quickly, which overcomes the adverse effects caused by the speed of manual operation of the handle, and improves the service life of the product.
A variety of accessories to choose from, and a modular and flexible combination, user installation is very convenient.
The shell and some functional parts are made of high flame-retardant, high temperature resistant and impact-resistant plastics.
High current limiting coefficient and economical price.
