6 amp 2 pole Miniature Circuit Breaker

Cost-effective double pole C6 miniature circuit breaker with 6 amp rated current, C curve trip characteristic, DIN rail mounting, meets IEC standard. This MCB breaker can safely be used in AC 50Hz, 230/400V with a 6 kA rated short-circuit breaking capacity, providing an electrical circuit from damage caused by overload or short circuits.

SKU: CCHN-MCB-2P06

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

6 amp 2 pole mini circuit breaker provides overload and short circuit protection for conductors, DIN rail mounting, and safety in use. This MCB breaker has a 6kA rated short-circuit breaking capacity and can prevent potential hazards like fire or equipment damage.

Double Pole MCB Breaker Information

Rated Current: 6 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 2 poles
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		CCHN-NB8-632PC06
Rated Current		6A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		2P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

Double Pole MCB Breaker Dimensions (Unit: mm)

6 amp 2 pole Miniature Circuit Breaker Dimensions

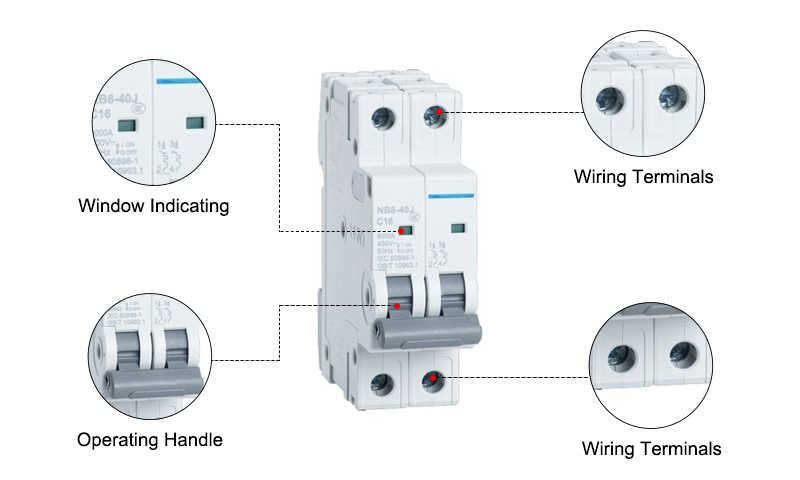

Details

Tips: Working conditions of miniature circuit breakers

The upper limit of ambient temperature should not exceed +40℃, the lower limit should not be lower than -5℃, and the average temperature of 24h should not exceed +35℃.
The altitude of the installation site does not exceed 2000m.
The relative humidity of the atmosphere does not exceed 50% when the ambient air temperature is +40℃. Higher relative humidity can be allowed at a lower temperature, for example, up to 90% at +20℃. Appropriate measures should be taken for condensation.
The external magnetic field of the installation site should not exceed 5 times the geomagnetic field in any direction.
The miniature circuit breaker is generally installed vertically, with a tolerance of 2° in any direction.
There should be no significant impact and vibration at the installation site.
