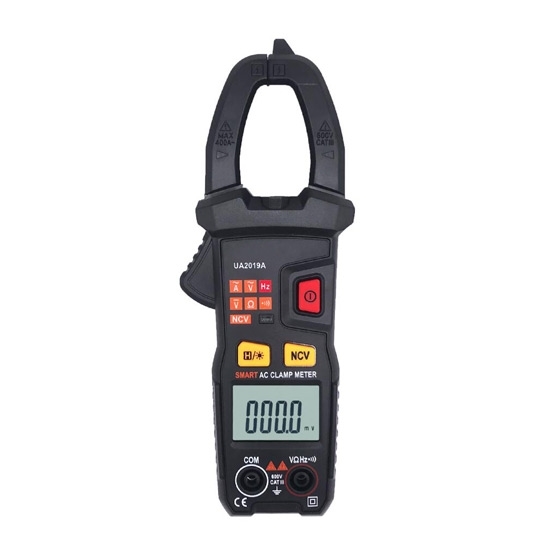

Digital clamp meter is a smart automatic measuring clamp multimeter by pressing the function key, with AC current range 0-400A, AC/DC voltage range 0-600V, resistance range 0-10MΩ, frequency range 0-1000kHz and maximum jaw opening size 25mm. Digital clamp meter has an NCV (non-contact voltage) measuring key to use NCV function. The NCV buzzer and indicator light will alarm frequently if high voltage is detected.

SKU: CCHN-CLAM-2019A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Digital clamp meter has AC current range 0-400A, NCV and automatic measuring function, maximum jaw opening size 25mm, 4 digit display and maximum value 5999.

Specification:

Basics	Model	CCHN-UA2019A
	Weight	0.4kg
	Size (LWH)	1846632.5mm
	Display	4 digit LCD display
	Maximum display value	5999
	Power supply	DC 4.5V, 3 AAA batteries
	Maximum jaw opening size	25mm
	Woring environment	Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75%
	Storage temperature	-10℃~+50℃ (14℉~122℉)

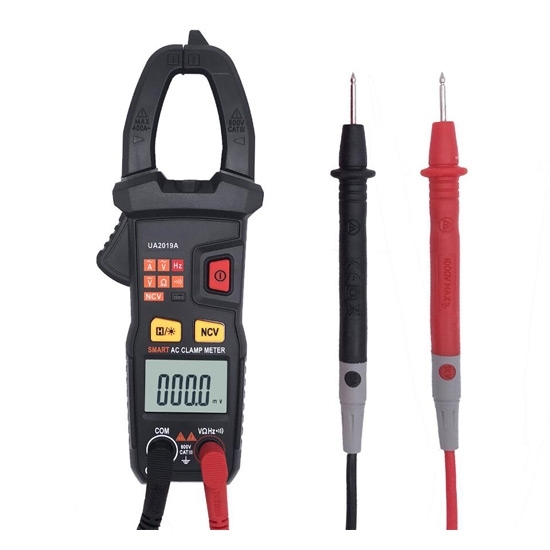

	Accessories	A pair of test probes, a user manual, 3 AAA batteries
Functions	Item	Range	Accuracy
	AC current	400A	±(2.5%+8 digits)
	DC voltage	600V	±(1.0%+5 digits)
	AC voltage	600V	±(1.2%+5 digits)
	Resistance	10MΩ	±(1.2%+3 digits)
	Frequency	1000kHz	±(0.3%+5 digits)
Special functions	NCV	Non-contact voltage test, with buzzer and indicator
	Diode test	Display forward voltage value of diode
	On-off buzzer	Continuity test buzzer
	Data hold	Hold the reading when taking a measurement
	Automatic power off	Automatic power off when 15 minutes no operation
	Overload protection	Overload protection for 100% range
	Range selection	Automatic measuring after press the function key
	Back light	Back light for LCD display
	Inspection light	Inspection light for clamp operation

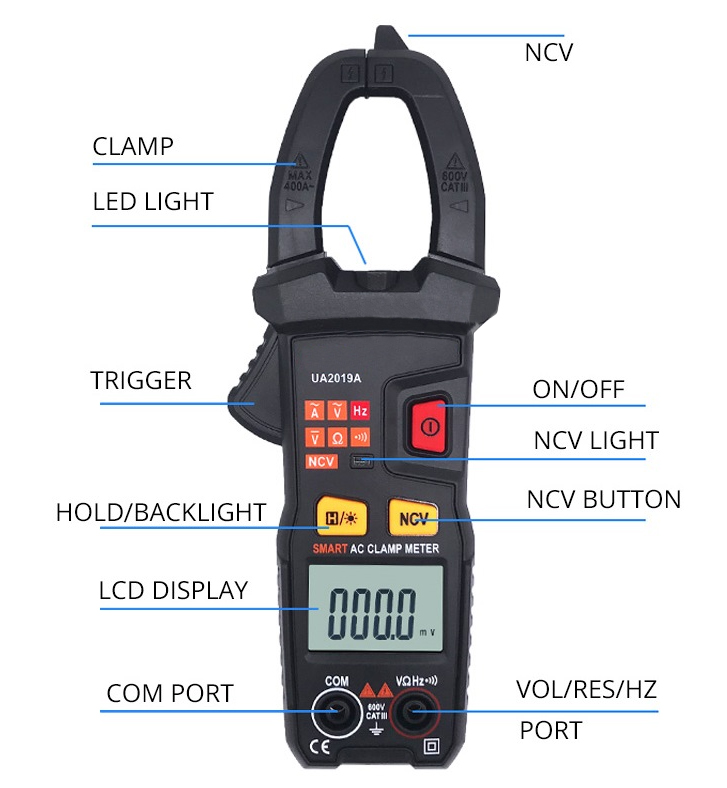

Details

Tips: How to use a digital clamp meter to measure AC/DC voltage?
It is very important to note that there is the risk of electric shock.
When measuring high voltage, extra care should be taken to avoid electrical shock. Do not attempt to use this clamp meter on a voltage higher than DC/AC 600V rms.
1. Press the measurement function selection key to the DC or AC voltage measurement.
2. Connect the black lead to the COM probe socket and the red lead to the INPUT probe socket.
3. The measured value is read from the LCD. The polarity display will indicate the polarity of the terminals to which the red test is connnected.
