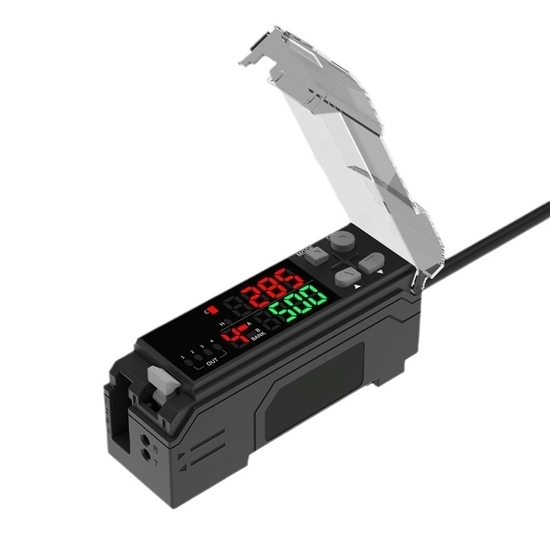

RGB Fiber Optic Color Sensor, NPN/PNP

Low-cost fiber optic color sensor is for sale. RGB color sensor equipped with matched optic sensor head, it can accurately identify more than 3,000 kinds of colors. It has threen detection modes, and is also built with three detection modes to adapt to various scenarios, making it an efficient tool for color detection.

SKU: CCHN-COLS-V21

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

RGB fiber optic color sensor is equipped with a dedicated fiber optic sensor head, featuring micro-color difference recognition function. It supports triple 16-bit calculation for precise RGB target recognition, enabling accurate identification of over 3,000 colors. With an 8-channel design, CCHN color sensor can store 8 colors at a time and detect 4 colors simultaneously. It also has three detection modes: C, CI, and SUPER I, making it suitable for various application scenarios. Digital color sensor is a high-quality color detection device with small size, high power, high recognition accuracy, and wide applicability.

Specification

Fiber Optical Color Sensor

Model	CCHN-FW-V21N	CCHN-FW-V21P
Transistor Type	NPN	PNP
Weight (with 2m Cable)	150g
Shell/Cover Material	PC
Length of Optical Fiber Cable	1m
Outer Diameter of Optical Fiber	M6
Inner Diameter of Optical Fiber Inner	Φ1*1
Output Signal	Switch Quantity
External Calibration Input Time	20ms (minimum value)
Power Supply	24VDC, Ripple (P-P): Max 10%
Environment Temperature	-10~+55℃, No Condensation
Current Consumption	Normal Mode: 1.5W (Max 62.5mA) Eco Mode: 1W (Max 42.0mA)
Timer Function	Adjustable from 1 to 1,000ms (for each area separately)
Response Time	200μS(HSP) /1ms(FINE) /4ms(TURBO) /8ms(SUPER)
Light Source	Red LED 665nm/Green LED 520nm/Blue LED 465nm
Control Output	NPN(PNP) Open Collector X4 Channels, Max 40VDC 1 Output up to 100mA, Total 4 Outputs up to 200mA Residual Voltage Max 1V
Vibration Resistance	10 to 55Hz, 1.5mm Double Amplitude, in X, Y, Z Directions, 2 Hours Each
Protection Circuit	Reverse Polarity Protection/Overcurrent Protection/Overvoltage Protection

Sensor Head

Model	CCHN-FW-H35	CCHN-FW-H37
Detection Range	28-52mm	11-20mm
Minimum Fiber Bending Radius	25mm	15mm
Weight (with 2m Cable)	40g	45g
Lens Cover Material	Polyarylate	PC, 304 Stainless Steel
Type	Large Spot Long Distance	Gloss Elimination, Small Beam Spot
Minimum Spot Diameter	4.5mm Diameter at 40mm Reference Distance	1mm Diameter at 16mm Reference Distance
Housing Material	PC
Protection Class	IP40
Environment Temperature	-10 to +55℃, No Condensation
Environment Illuminance	Incandescent: Max 10,000lux Daylight: Max 20,000lux
Vibration Resistance	10 to 55Hz, 1.5mm Double Amplitude, in X, Y, Z Directions, 2 Hours Each

Note: CCHN-FW-V21N is sold together with CCHN-FW-H35, and CCHN-FW-V21P is sold together with CCHN-FW-H37.

Features

Color recognition capability: Equipped with a dedicated color probe, it can accurately identify more than 3,000 kinds of colors; fiber optic color sensor has a micro-color difference recognition function, supports triple 16-bit computing RGB for precise target recognition, and color signals are converted into 16-bit data in the receiver.
Channels and storage: Adopting an 8-channel design, it can store 8 colors at one time and detect 4 colors simultaneously.
Color sensor performance: Using a small-sized, high-power dedicated detection head with a composite structure. The transmitter uses optic fiber to generate a single light spot, reducing the volume of the sensor head and improving detection capability and stability. CCHN color sensor has three built-in detection modes, suitable for various application scenarios.

Dimension (Unit=mm)

Fiber optic color sensor dimension

Detail

Fiber optic color sensor detail

Wiring Method

Fiber optic color sensor wiring method

External Input Settings

Fiber optic color sensor external input settings
Set Sensitivity via External Input (External Tuning)

Activate the key lock function.
Connect the pink wire to an external device, such as a switch or PLC.
Short-circuit the pink wire as shown in the diagram; for each model, this is equivalent to pressing the SET (setting) button.

Select Database via External Input (In C/C+I Mode)

Activate the key lock function.
Connect the purple wire to an external device, such as a switch or PLC.
Short-circuit the purple wire as shown in the diagram, so that each model switches the database from A to B. (When the input signal is ON, the database is set to B.)

Fiber optic color sensor external input settings

External Input Shift Input (During Super I Mode Setting)

Connect the purple wire to an external device, such as a switch or PLC.
Short-circuit the purple wire as shown in the diagram to enable shift input for each model. (The rising edge of the input signal executes the shift input.)

Tips: How to Select Correct Mode for Fiber Optic Color Sensor？

When using fiber optical color sensor, selecting the correct detection mode is crucial for ensuring accurate detection. The sensor has three built-in modes: C, CI, and SUPER I, each with its own characteristics, and the selection needs to be based on the detection requirements.

C mode: If it is necessary to deal with scenarios where workpieces are moving or vibrating, and there is no need to distinguish neutral colors such as white, black, or gray, the C mode (RGB comparison) is a suitable choice, as it performs well in such scenarios.
CI mode: When there is a need to detect subtle differences in colors, with low requirements for distinguishing neutral colors and acceptable influence from workpiece vibration, the CI mode (RGB comparison+light-dark comparison, receiving light brightness) can meet the needs and accurately capture tiny differences between colors.
SUPER I mode: If there is a need to distinguish neutral colors (black and white) and the influence from workpiece vibration is acceptable, the SUPER I mode (light-dark comparison, receiving light brightness) is more applicable, as it can effectively identify neutral colors.

In summary, the correct detection mode for the color sensor can be selected based on the requirements for distinguishing neutral colors, and whether the workpiece has vibration and movement.
