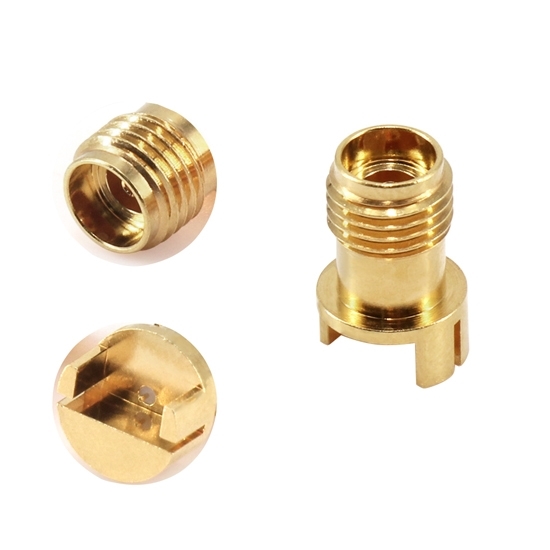

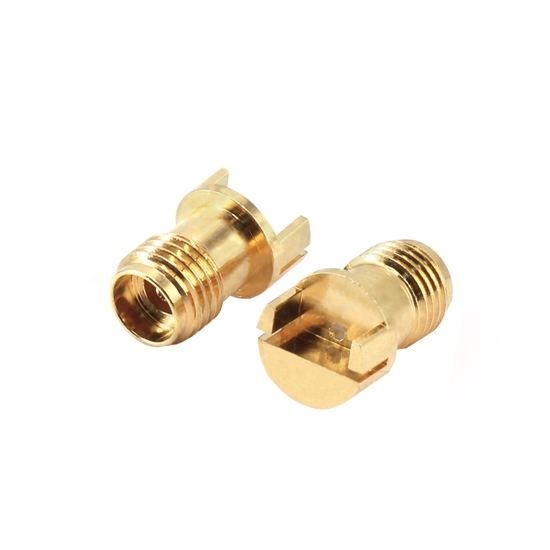

2.92mm Female RF Coaxial Connector, PCB Edge Mount

2.92mm female (jack) radio frequency (RF) coaxial connectors provide reliable and secure connections, minimizing signal loss and interference. With their precise construction and compatibility with coaxial cables, they offer durability and efficiency in transmitting radio frequency signals for various applications, especially in TV and communication systems.

Specification

• Model: CCHN-29FB12E02-023M
• Frequency Range: DC~40GHz
• Standing Wave Ratio (VSWR): 1.15:1 (Max.)
• Impedance: 50 Ohm
• Insertion Loss: 0.25dB (Max.)
• Dielectric Withstand Voltage: 1000V
• Insulation Resistance: ≥5000 Ohm
• Connector Type A: 2.92mm-Female
• Connector Type B: PCB Board (Printed Circuit Board) Edge Mount
• Working Temperature: -55℃~+165℃
• Inner Conductor Material: Gold Plated Bronze
• Outer Conductor Material: Gold Plated Brass
• Insulator: PTFE
• Service Life: ≥500

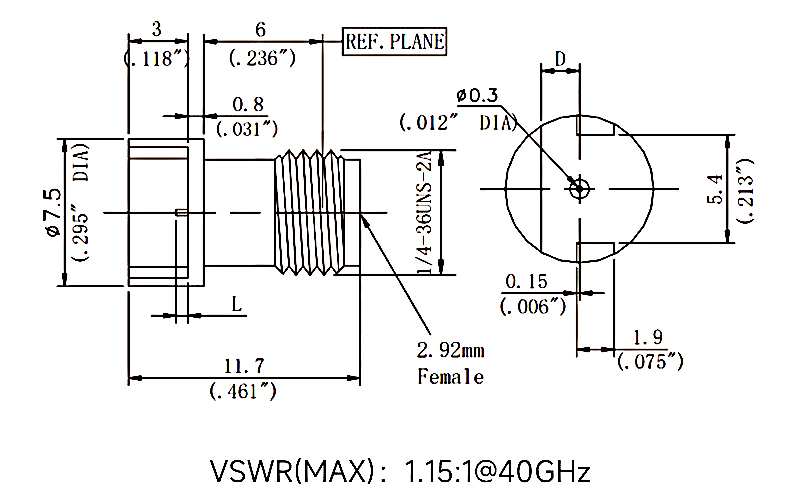

Dimension (Unit: mm)

• φD: 0.76mm/0.030"
• L: 0.6mm/0.023"
• Applicable PCB Thickness: 0.61mm/0.024"

Tips: Where are RF coaxial connectors used?

RF coaxial connectors find widespread use in various applications across industries due to their capability to transmit radio frequency signals efficiently. They are commonly employed in telecommunications, connecting antennas to devices like radios and cellular network equipment. In the field of electronics, these connectors are essential for establishing connections between different components in circuits, ensuring reliable signal transmission in devices like TVs, radios, and computers. RF coaxial connectors are extensively used in aerospace and defense applications, linking communication systems and radar equipment. Moreover, they play a crucial role in medical equipment, facilitating the transmission of signals in devices such as MRI machines and medical imaging systems. Overall, RF coaxial connectors serve as integral components in diverse sectors, enabling efficient and high-quality signal transmission.
