Circular Connector, 2/3/4/5/6/7/8 Pin, M12

Circular Connector, 2/3/4/5/6/7/8 Pin, M12

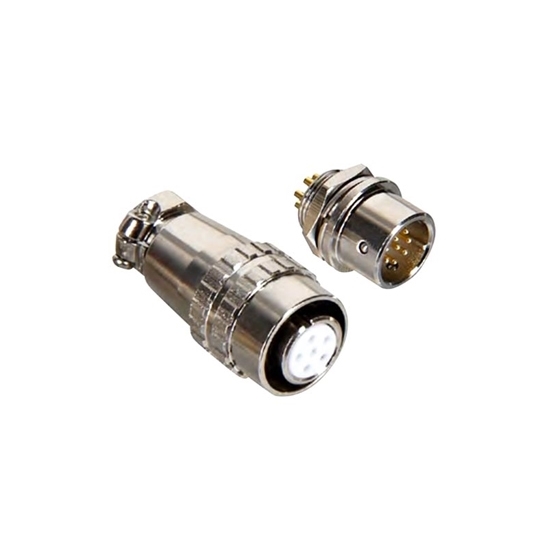

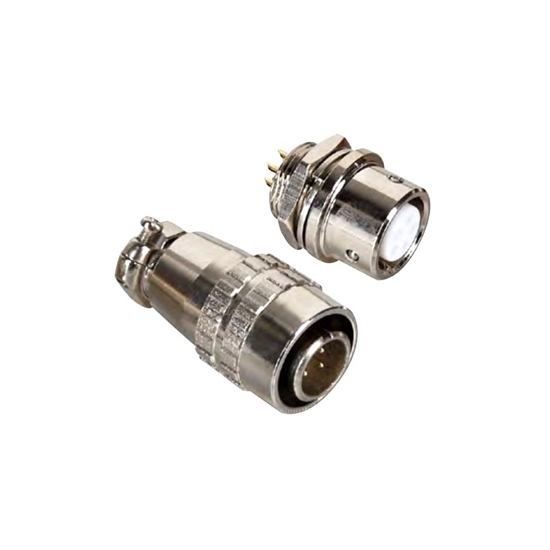

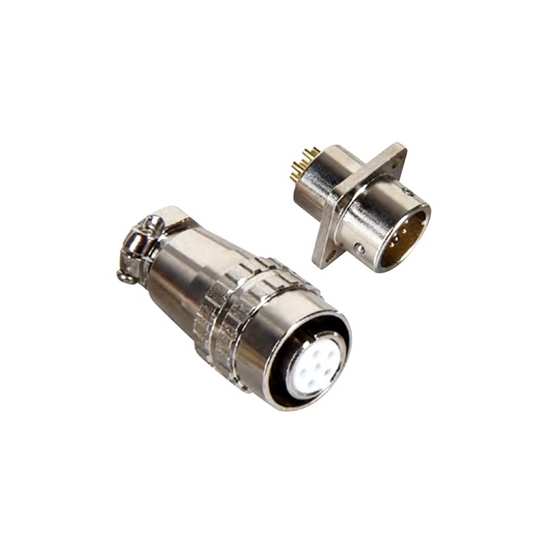

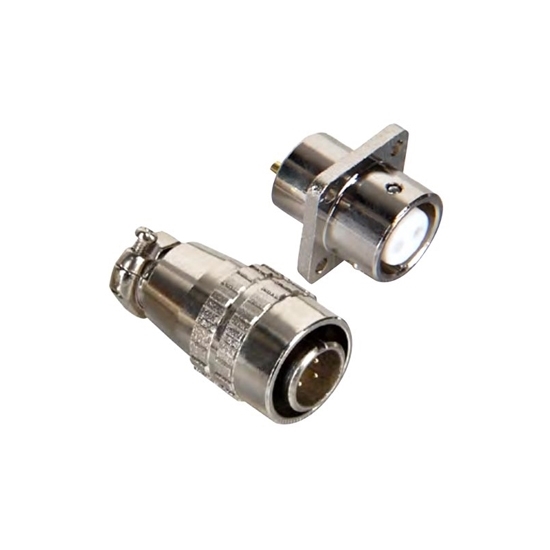

Circular connector is used for connecting component & cable, cable & cable, easy to seal, insert and dismantle. Circular connector has 2/3/4/5/6/7/8 pin, female/male plug & socket to select.

SKU: CCHN-CIRCN-XS12

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Circular connector has 2/3/4/5/6/7/8 pin to select.

Specification:

Model	CCHN-CIRC-XS12
Weight	0.5kg
Coupling mode	Push-pull
Shell material	Zinc base alloys with nickel plate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ7.5mm~≤Φ8.3mm
Protection class	IP65

Technology parameter:

Number of pins	2	3	4	5	6	7	8
Rated current/voltage	5A-200V	5A-200V	5A-125V	5A-125V	5A-125V	5A-125V	5A-125V
Operating voltage	AC 250V	AC 250V	AC 250V	AC 250V	AC 250V	AC 250V	AC 250V
Withstanding voltage (in 1 minute)	AC 2500V	AC 2500V	AC 2500V	AC 2500V	AC 2500V	AC 2500V	AC 2500V
Insulation resistance at DC 500V (MΩ)	3000	3000	3000	3000	3000	3000	3000
Contact resistance at 1A (MΩ)	10	10	10	10	10	10	10
Solder cup diameter Ф (mm)	0.9	0.9	0.9	0.9	0.9	0.9	0.9
Pin diameter Ф (mm)	1	1	1	1	1	1	1

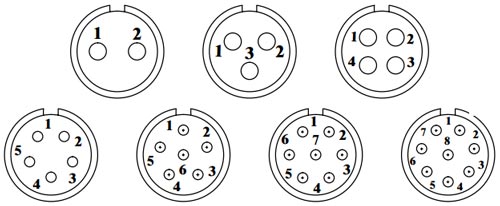

Pin assignments:

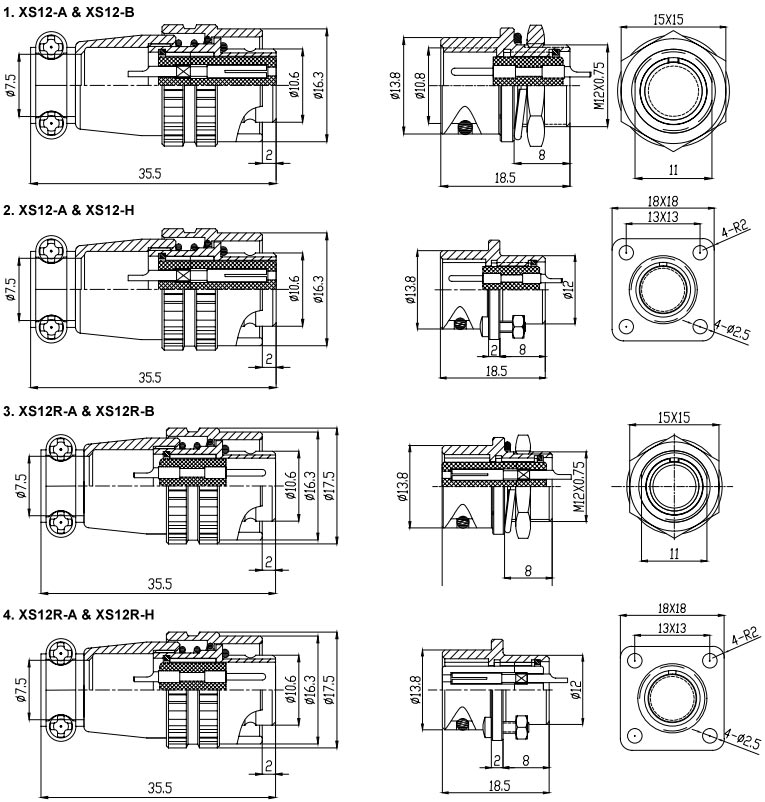

Dimensional drawing (unit: mm):
Circular connector 2 to 8 pin m12 dimensional drawing
Tips: Contact of circular connector
Contact is the core part for achieving the function of electric connection. Generally, male contact and female contact (contact pin and socket) constitute contact pair. Electric connection is achieved through the connection of male contact and female contact.
Contact is the core part for achieving the function of electric connection. Generally, male contact and female contact (contact pin and socket) constitute contact pair. Electric connection is achieved through the connection of male contact and female contact.
Male contact is generally made of copper. Its front end is the part achieving the effective contact of contact pin and socket. Its rear end is used to connect to wire and PCB board, also known as termination parts.
Female contact (socket) is the critical part of contact pair. It contacts with male contact closely depending on the elastic deformation in the connection of elastic structure and contact pin. Contact is divided into non-removable contact and dismountable contact by whether it can be removed from insulating mounting plate.
