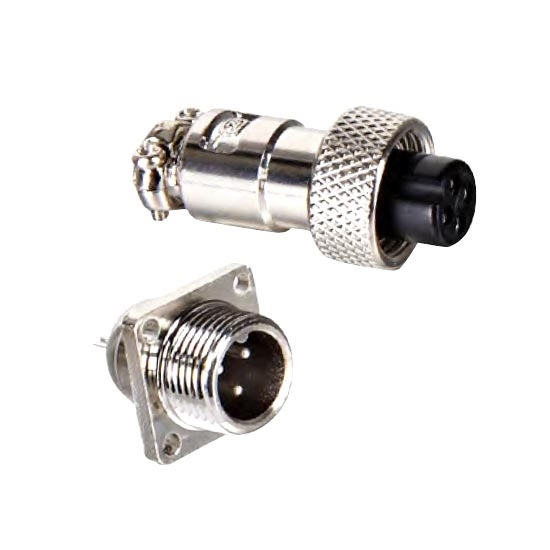

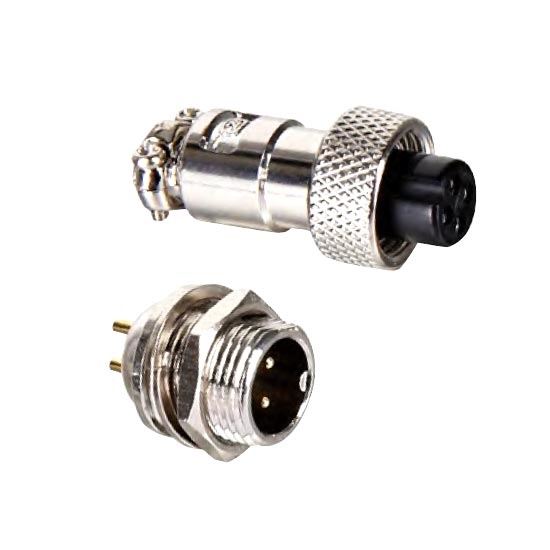

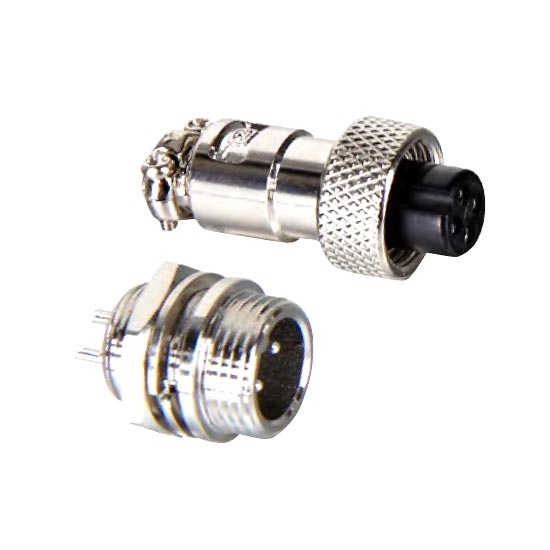

Circular Connector, 2/3/4/5/6 Pin, M13

Circular connector has simple and firm locking mechanism, easy to seal, insert and dismantle. Circular connector has 2/3/4/5/6 pin, different shapes of plug & socket to select.

SKU: CCHN-CIRCN-12M

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Circular connector has 2/3/4/5/6 pin to select.

Specification:

Model	CCHN-CIRC-12M
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with nickel plate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ5.0mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6
Rated current/voltage	5A-125V	5A-125V	5A-125V	5A-125V	5A-125V
Operating voltage	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V
Insulation resistance at DC 500V (MΩ)	1500	1500	1500	1500	1500
Contact resistance at 1A (MΩ)	5	5	5	5	5
Solder cup diameter Ф (mm)	0.8	0.8	0.8	0.8	0.8
Pin diameter Ф (mm)	1.2	1.2	1.2	1.2	1.2

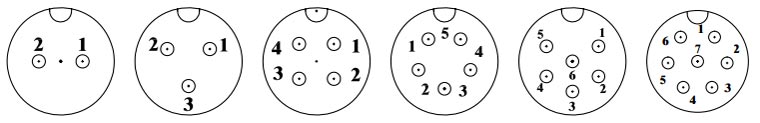

Pin assignments:

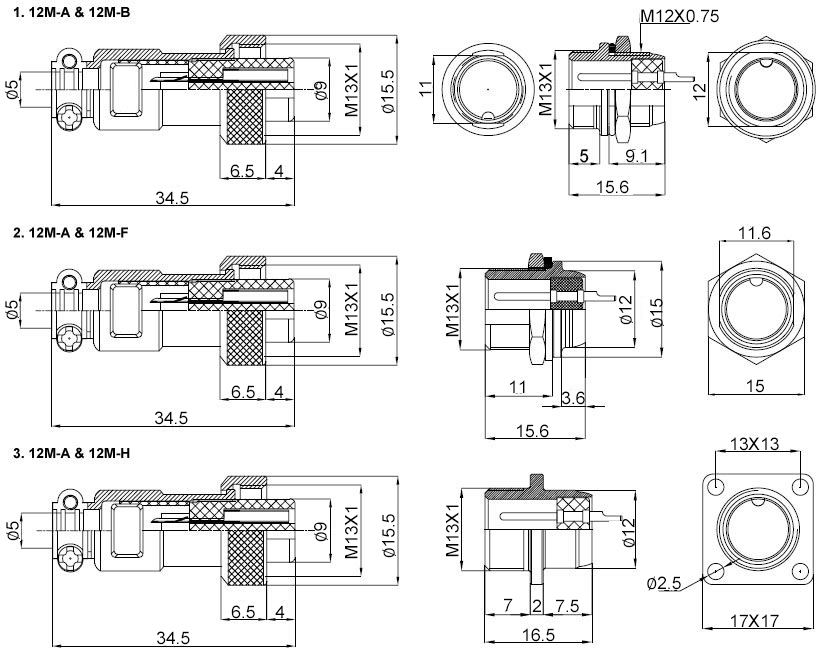

Dimensional drawing (unit: mm):
Circular connector 2 to 6 pin m13 dimensional drawing
Tips: Insulating mounting plate of circular connector
Insulating mounting plate is called base or insulator which is used to arrange contacts according to the wanted position and distance and ensure the insulation among contacts and between contact and shell. Good insulation resistance, voltage resistance and workability are the basic requirement for choosing insulating materials for insulator. The materials of insulator are generally composed of plastics, silicone rubber and pouring sealant with good electrical conductivity. Generally, thermoplastic plastic and thermosetting plastic are adopted.
