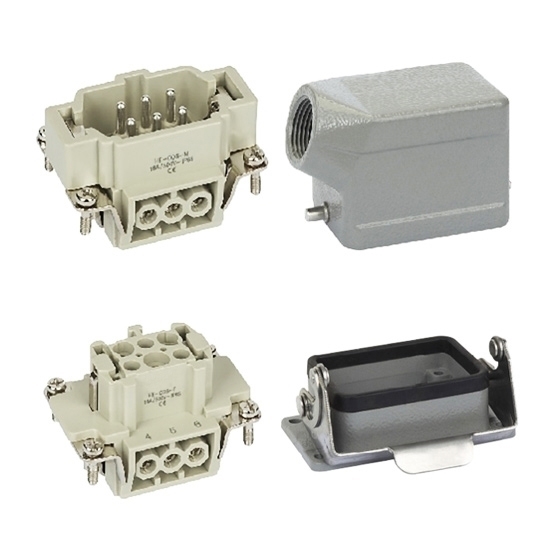

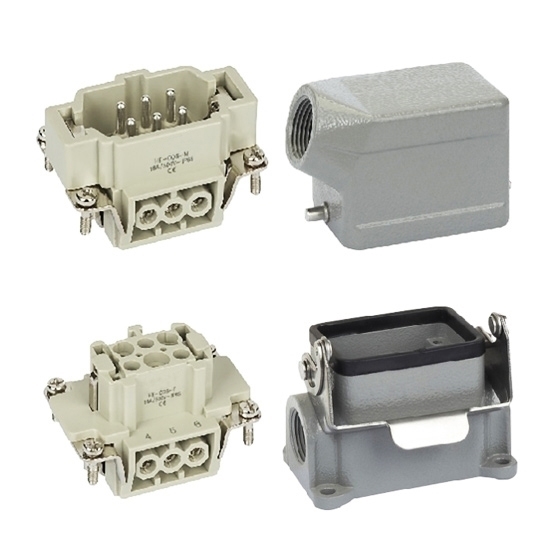

Heavy Duty Connector, 6 Pin, AC 500V / 16A

Heavy Duty Connector, 6 Pin, AC 500V / 16A

Heavy duty connector 6 pin has optional 4 shell items, working voltage 500VAC, working current 16A, insertion/withdrawal cycles 500 times, temperature range -40℃~+125℃ (-40℉~+257℉) and protection class IP65. The wiring form of 6 pin heavy duty connector is screw connection.

SKU: CCHN-HDCN-6P

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

6 pin heavy duty connector with working voltage AC 500V and current 16A.

Specification:

Basic	Model	CCHN-HDCN-HE-006-1	CCHN-HDCN-HE-006-2	CCHN-HDCN-HE-006-3	CCHN-HDCN-HE-006-4
	Shipping weight	1kg
	Standard	DIN EN 60 664-1, DIN EN 61 984
	Number of pins	6 pin + PE
	Certificate	CCC, CE, ROHS, RU, CSA, TUV
Inserts	Item	HE-006-M	HE-006-M	HE-006-M	HE-006-M
	Working current	16A
	Working voltage	500V
	Rated pulse voltage urms	6kV
	Pollution degree	3 (C)
	Insulation resistance	≥10¹⁰Ω
	Material	Polycarbonate
	Working temperature Range	-40℃~+125℃ (-40℉~+257℉)
	Flammability according to UL94	V0
	Working voltage according to UL / CSA	600V
	Insertion / withdrawal cycles	≥500
Contacts	Item	HE-006-F	HE-006-F	HE-006-F	HE-006-F
	Material	Copper alloy
	Surface treatment	Silver/ Gold plating
	Contact resistance	≤1mΩ
	Wiring form	Screw connection
	Wire specification	0.14-4.0mm² AWG 26-12
	Tightening torque	0.5N·m
Shell	Hood item	H6B-TS-R0-M20	H6B-TG-R0-M20	H6B-TS-R0-M20	H6B-TG-R0-M20
	Hood thread	M20	M20	M20	M20
	Housing item	H6B-AG	H6B-AG	H6B-SGR-2M20	H6B-SGR-2M20
	Housing thread	-	-	M20	M20
	Material	Cast aluminum
	Surface treatment	Powder-coated, gray
	Interlocking element	Interlocking method: metal elastic pressing, material: galvanized iron
	Sealing element	NBR
	Applicable temperature range	-40℃~+125℃ (-40℉~+257℉)
	Flammability class	V0
	Protection class	IP65

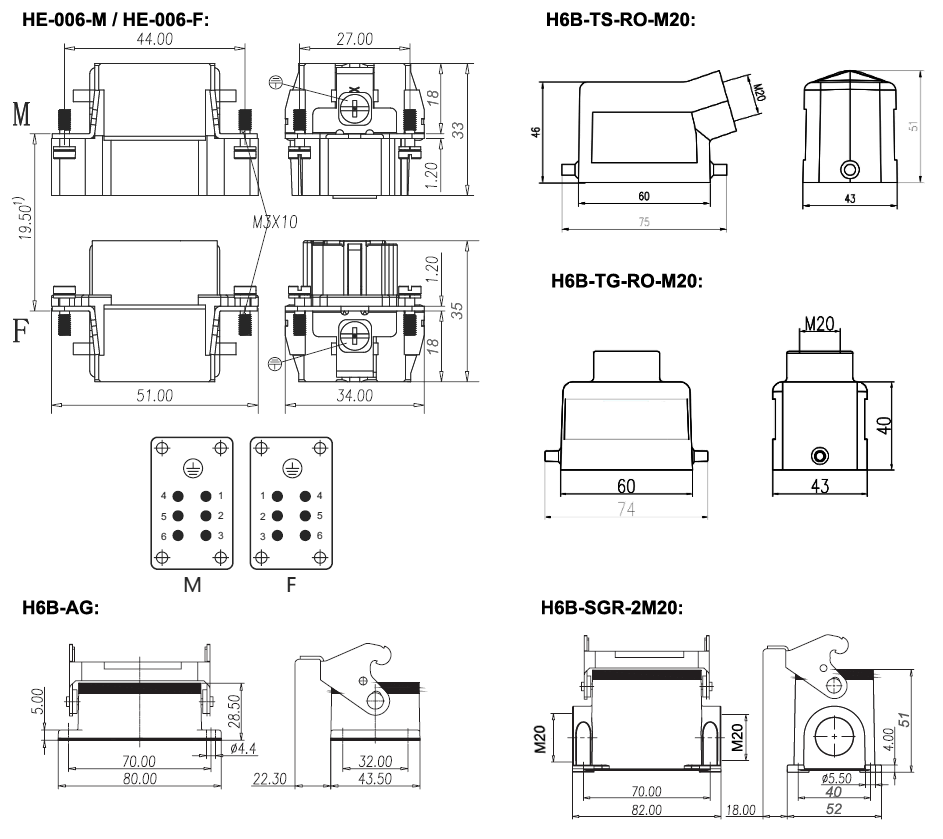

Dimension (unit: mm):
6 pin AC 500 volt/ 16 amp heavy duty connector dimension
Tips: 4 functions of the heavy duty connector shell

Shell is the electrical insulation between connectors. It can avoid interference between signals.
Fix the position of heavy duty connector, it is conducive to the insertion and removal and the stability of the position.
Provide mechanical protection and support for inserts
Separate the heavy duty connector from the application environment, reduce the pollution and corrosion of the environment to the connector, and extend the service life of the connector.
