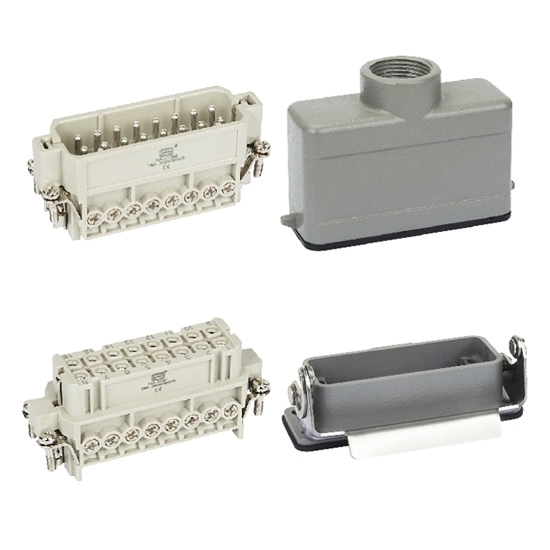

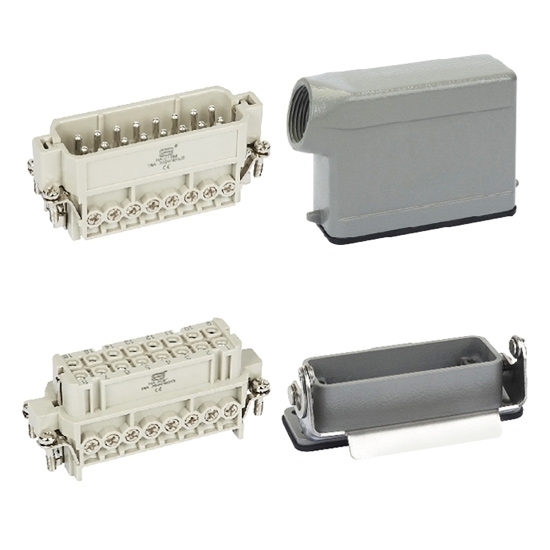

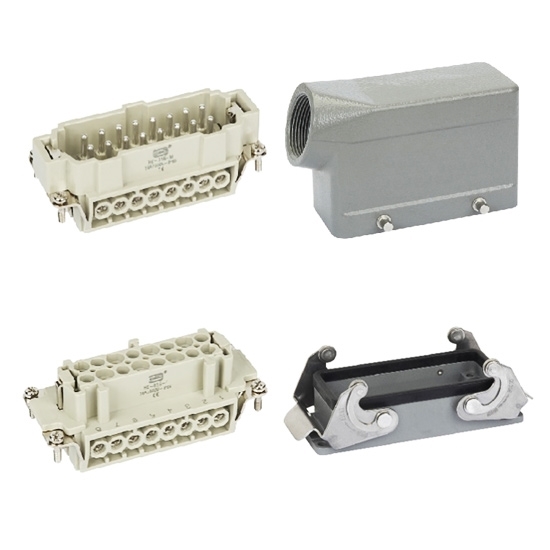

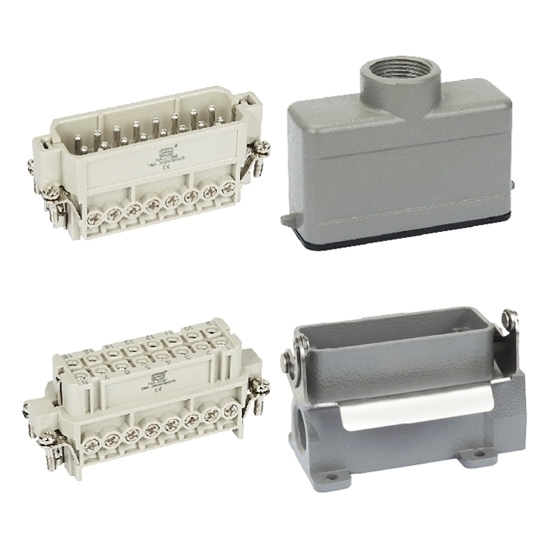

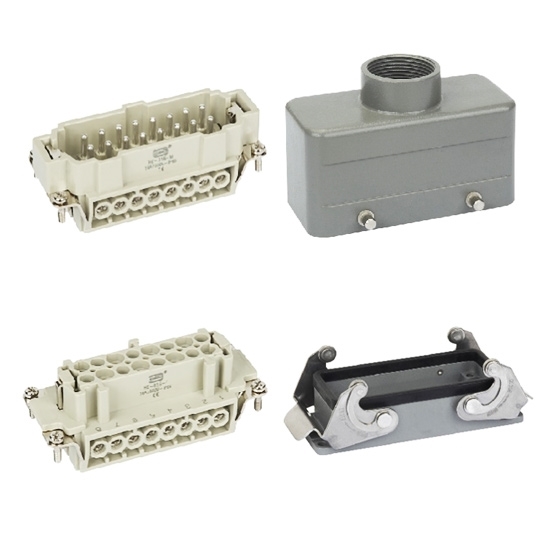

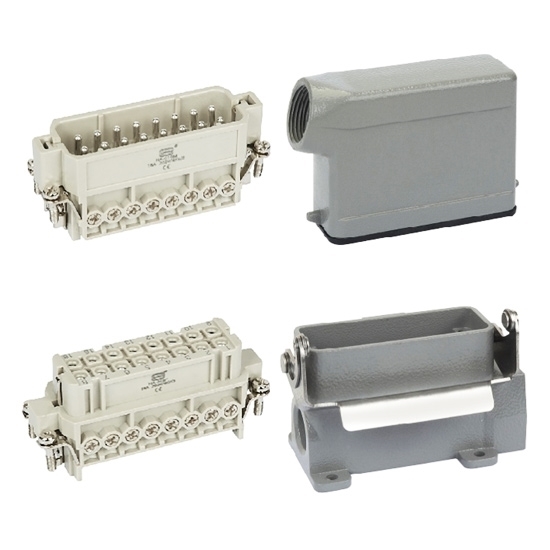

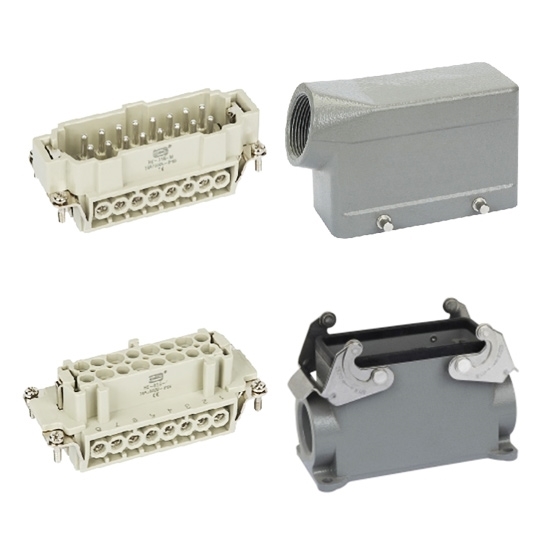

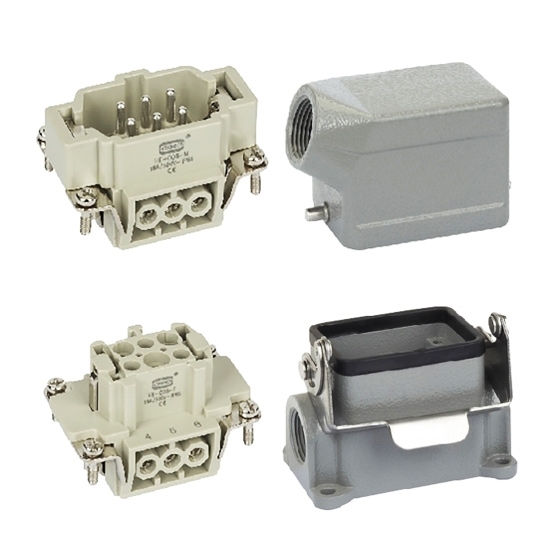

Heavy Duty Connector, 16 Pin, 250VAC/500VAC, 16A

Heavy Duty Connector, 16 Pin, 250VAC/500VAC, 16A

16 pin heavy duty connectors have 16A working current and AC 250V/500V working voltage. There are 8 different shell items to select. Cheap heavy duty connector meets standard DIN EN 60 664-1, DIN EN 61 984. It also has the certificate of CCC, CE, ROHS, RU, CSA, TUV.

SKU: CCHN-HDCN-16P

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

16 pin heavy duty connector with working voltage 250VAC / 500VAC and current 16A.

Specification:

Basic	Model	CCHN-HDCN-HA-016-1	CCHN-HDCN-HA-016-2	CCHN-HDCN-HA-016-3	CCHN-HDCN-HA-016-4	CCHN-HDCN-HE-016-1	CCHN-HDCN-HE-016-2	CCHN-HDCN-HE-016-3	CCHN-HDCN-HE-016-4
	Shipping weight	1kg
	Standard	DIN EN 60 664-1, DIN EN 61 984
	Number of pins	16 pin + PE
	Certificate	CCC, CE, ROHS, RU, CSA, TUV
Inserts	Item	HA-016-M	HA-016-M	HA-016-M	HA-016-M	HE-016-M	HE-016-M	HE-016-M	HE-016-M
	Working current	16A
	Working voltage	250V	250V	250V	250V	500V	500V	500V	500V
	Rated pulse voltage urms	4kV	4kV	4kV	4kV	6kV	6kV	6kV	6kV
	Pollution degree	3 (C)
	Insulation resistance	≥10¹⁰Ω
	Material	Polycarbonate
	Working temperature Range	-40℃~+125℃ (-40℉~+257℉)
	Flammability according to UL94	V0
	Working voltage according to UL / CSA	600V
	Insertion / withdrawal cycles	≥500
Contacts	Item	HA-016-F	HA-016-F	HA-016-F	HA-016-F	HE-016-F	HE-016-F	HE-016-F	HE-016-F
	Material	Copper alloy
	Surface treatment	Silver/ Gold plating
	Contact resistance	≤1mΩ
	Wiring form	Screw connection
	Wire specification	0.75-2.5mm² AWG 18-14
	Tightening torque	0.5N·m
Shell	Hood item	H16A-TS-RO-M20	H16A-TG-RO-M20	H16A-TS-RO-M20	H16A-TG-RO-M20	H16B-TS-M25	H16B-TG-M25	H16B-TS-M25	H16B-TG-M25
	Hood thread	M20	M20	M20	M20	M25	M25	M25	M25
	Housing item	H16A-AG-LB	H16A-AG-LB	H16A-SGR-LB-2M20	H16A-SGR-LB-2M20	H16B-AG	H16B-AG	H16B-SGR-2M25	H16B-SGR-2M25
	Housing thread	-	-	2*M20	2*M20	-	-	2*M25	2*M25
	Material	Cast zinc	Cast zinc	Cast zinc	Cast zinc	Cast aluminum	Cast aluminum	Cast aluminum	Cast aluminum
	Surface treatment	Powder-coated, gray
	Interlocking element	Interlocking method: metal elastic pressing, material: galvanized iron/ stainless steel				Interlocking method: metal elastic pressing, material: galvanized iron
	Sealing element	NBR
	Applicable temperature range	-40℃~+125℃ (-40℉~+257℉)
	Flammability class	V0
	Protection class	IP65

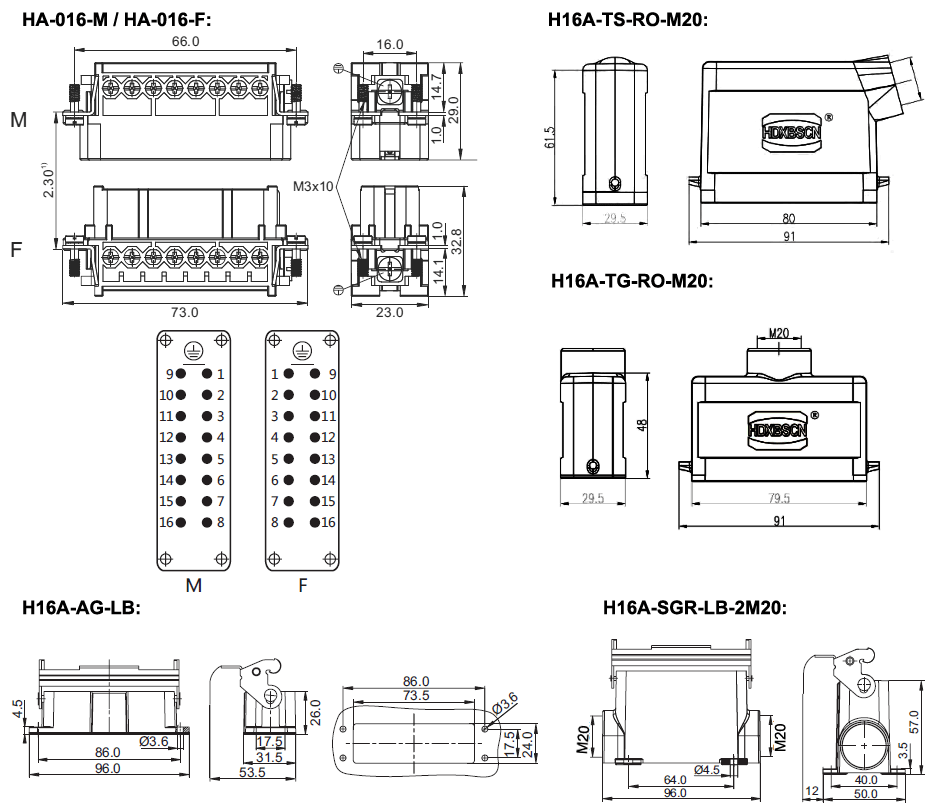

Dimension for 16 pin 250VAC heavy duty connector (unit: mm):

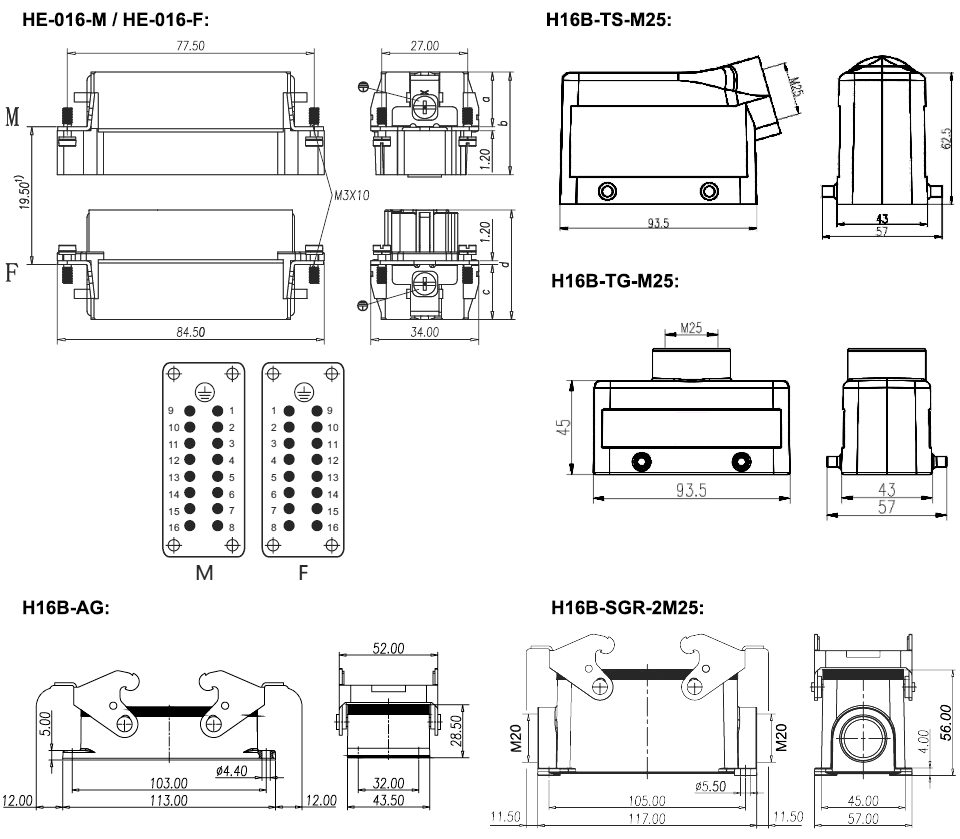

Dimension for 16 pin 500VAC heavy duty connector (unit: mm):

Tips: 3 connection types of heavy duty connectors

Screw terminal: Male and female inserts in rectangular heavy duty connectors are screw-connected and have locking devices, which are mainly used for the connection of electronic equipment and electronic control equipment. This connection form is reliable to use, but the assemble and unassemble speed is slow.
Cold pressing terminal: The male and female inserts in the heavy duty connector are cold-pressed connection. When matched with tools such as cold-pressed needles and cold-pressed pliers, they can adapt to many complex scenarios and have reliable connections. But professional tools are needed.
Cage clamp terminal: The male and female inserts in the heavy duty connector are connected by cage clamps. No special tools are required for connection and disassembly, and the operation is convenient.
