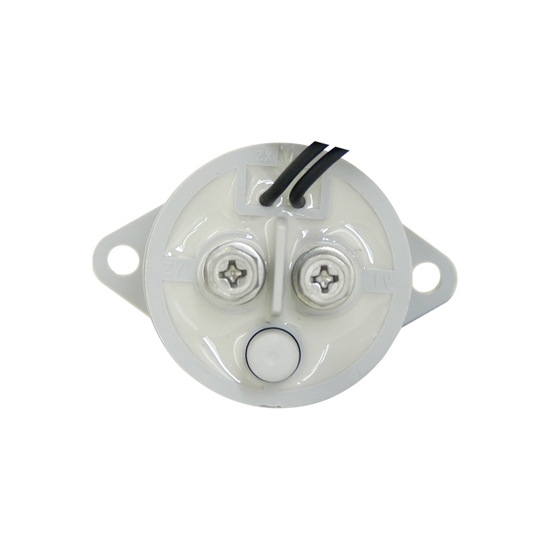

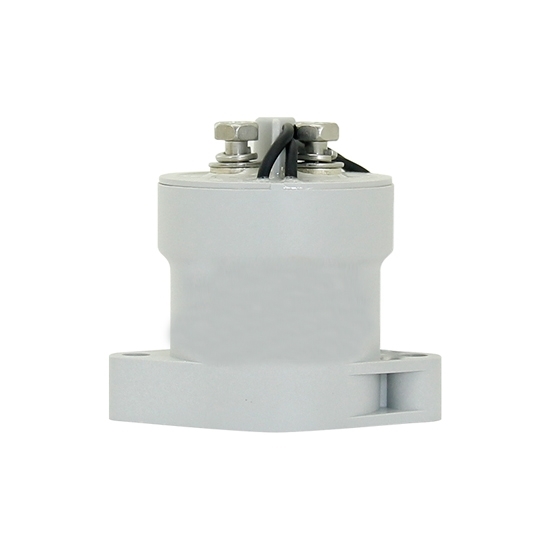

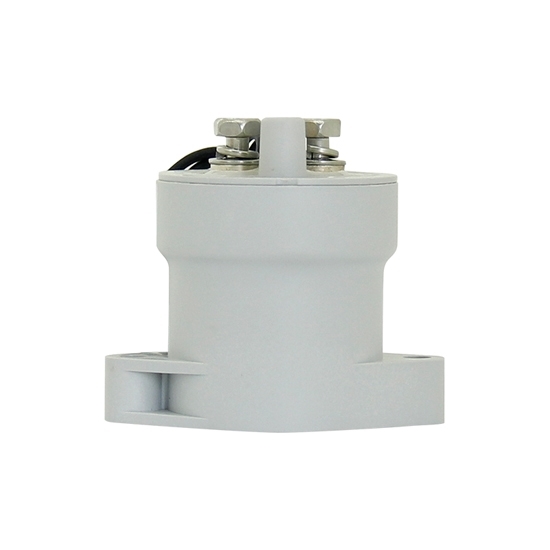

30A High Voltage DC Contactor, 12V/24V coil

30A High Voltage DC Contactor, 12V/24V coil

Cheap Price DC contactor relay, normally open (SPST-NO) type, 30 amps rated load current of contact circuit, available with 12V or 24V coils. Magnetic contactor is widely used in the DC 12-900V high voltage field, offers exceptional performance in an extremely small and lightweight device.

SKU: CCHN-DCCON-HV30

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Features

30A DC contactor adopts high-strength epoxy resin sealing with nitrogen-based gas filling, eliminating arc leakage risks, preventing contact oxidation, and ensuring safe operation without fire or explosion during its service life.
It provides reliable performance with 30A continuous current at 85℃, IP67 contact protection, insulation resistance up to 100MΩ (1000V DC), and dielectric strength of 2.2kV between contacts and coil.
High voltage DC contactor meets IEC 60664-1, GB/T14048.1, GB/T14048.4 standards, complies with RoHS (2015/863/EU) and REACH (1907/2006/EC), and is certified by CE, CCC, and RoHS.

Specifications

Model		CCHN-ADH-30
Main Contact Specification
Contact Arrangement		1K (1NO)
Contact Polarity		Non-polarity
Contact Resistance		≤0.5mΩ (at 200A)
Max. Switching Voltage		1,000V DC
Max. Breaking Current		250A (320V DC) 1 Ops
Electrical Endurance (Resistive Load)		10,000 Ops (1,500V DC, 30A)
		6,000 Ops (1,000V DC, 50A)
		20,000 Ops (750V DC, 30A)
		25,000 Ops (450V DC, 30A)
Mechanical Endurance		300,000 Ops
Withstand Current		30A, Continuous
		45A, 60min
		60A, 20min
		120A, 30s
Performance Parameter (at 23℃)
Pickup Voltage		See Coil Parameter Tables
Dropout Voltage		See Coil Parameter Tables
Pickup Time		≤30ms
Contact Bounce Period		≤5ms
Dropout Time		≤10ms
Dielectric Strength	Between Main Contacts	10,000V DC 10s
	Between Main Contact and Coil	3,500V DC 1min
Insulation Resistance	Initial State	1,000MΩ
	After Electrical Life	50MΩ 1min
Shock	Stability	20g (Power On)
	Strength	50g
Vibration		10g, 10~500Hz, 1/2 Sine Wave (Power On)
Relative Humidity		5%~95%RH
Temperature		-40℃~85℃
Load Terminal		M4 Internal Thread
Weight		About 115g
Dimension		51.7x36x46mm
Auxiliary Contact Parameter
Aux. Contact Arrangement		/
Aux. Contact Rated Current		/
Aux. Contact Max. Breaking Voltage		/

Coil Parameter

Coil Voltage	Pickup Voltage (VDC)	Dropout Voltage (VDC)	Coil Resistance	Coil Power Consumption
12V	≤70%Us	5-40%Us	≤0.33A	≤5W
24V	≤70%Us	5-40%Us	≤0.17A	≤5W
36V	≤70%Us	5-40%Us	≤0.12A	≤5W
48V	≤70%Us	5-40%Us	≤0.09A	≤5W
60V	≤70%Us	5-40%Us	≤0.07A	≤5W
72V	≤70%Us	5-40%Us	≤0.06A	≤5W

Dimension (Unit: mm)

30A high voltage DC contactor dimension

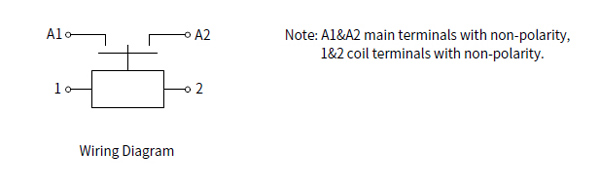

Wiring Diagram

30A high voltage dc contactor wiring diagram

Tips: Reasons for the contacts of contactor being unable to close after powering on

Power supply circuit of the coil shorts.
Coil circuit breaks.
Coil's control voltage is too low.
The contactor's coil has burnt out, thermal deformation of coil skeleton makes the iron core
unable to be sucked to a proper place, thus the contact can't close.
Adhesion of main contact.
A foreign body or hard spots in the armature.
Main contact dislocates (mainly for large contactor, bridge type contact).
Auxiliary contact is not well installed.
