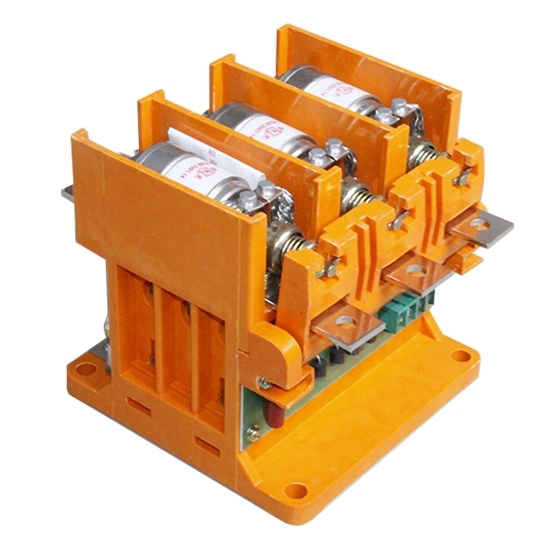

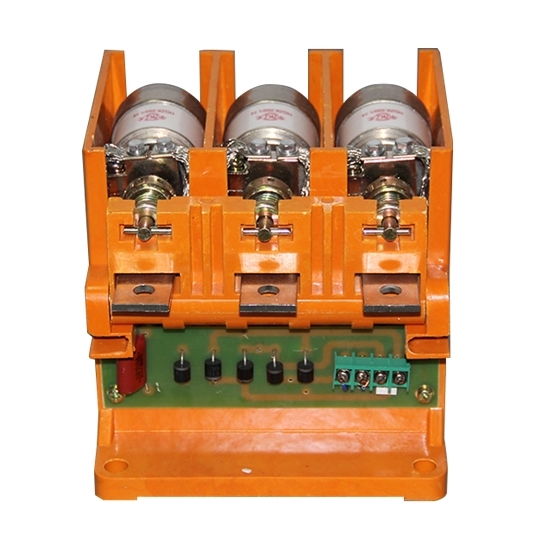

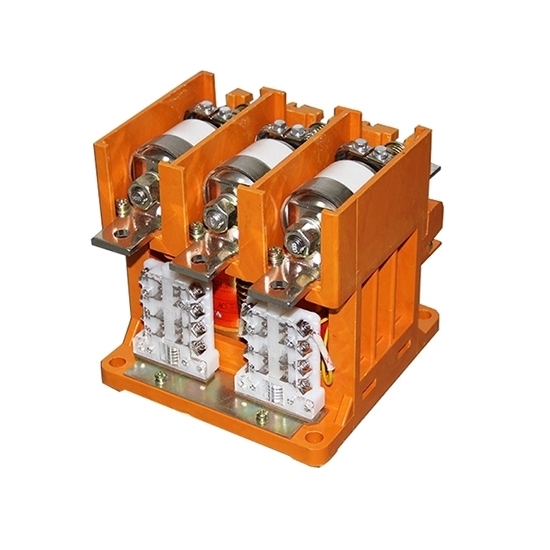

3 Phase AC Vacuum Contactor, 250A, 1140V

3 Phase AC Vacuum Contactor, 250A, 1140V

ATO provides low price 4 pole 3 phase ac vacuum contactor with rated voltage of 1140V and rated current of 250A. 36V/ 110V/ 220V/ 380V control circuit can be selected. 2±0.2 mm open distance, 80±10N final power, AC 50Hz or 60Hz frequency.

SKU: CCHN-VCON-250

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy high performance 110 volt/ 220 volt coil ac vacuum contactor. Power frequency withstand voltage: 4200V main circuit, 2500V auxiliary circuit, 2000V control circuit. 10 Ie (100 times) making capacity and 8 Ie (25 times) breaking capacity. It especially applies to explosion electromagnetic starter and all sorts of power control equipment.

Specification

Model		CCHN-CKJ5-250-1140
Rated voltage	Main circuit	1140V
	Control circuit (AC)	36V, 110V, 220V, 240V, 380V
Rated current		250A
Main contact parameter	Open distance	2±0.2 mm
	Over distance	＞1.5 mm
	Final power	80±10 N
Power frequency withstand voltage	Main circuit	4200V
	Auxiliary circuit	2500V
	Control circuit	2000V
Phase		3
Frequency		AC 50Hz or 60Hz
Making capacity		10 le 100 times
Breaking capacity		8 le 25 times
Max making & breaking capacity (A)		4500 3 times
Electric life	AC3	600000 times
	AC4	60000 times
Electrical life		3000000 times
Function		Device protection
Electricity type		Vacuum
Ambient temperature		-25℃ to +40℃
Packaging details		Standard package or according to customer's requirements
Weight		8kg

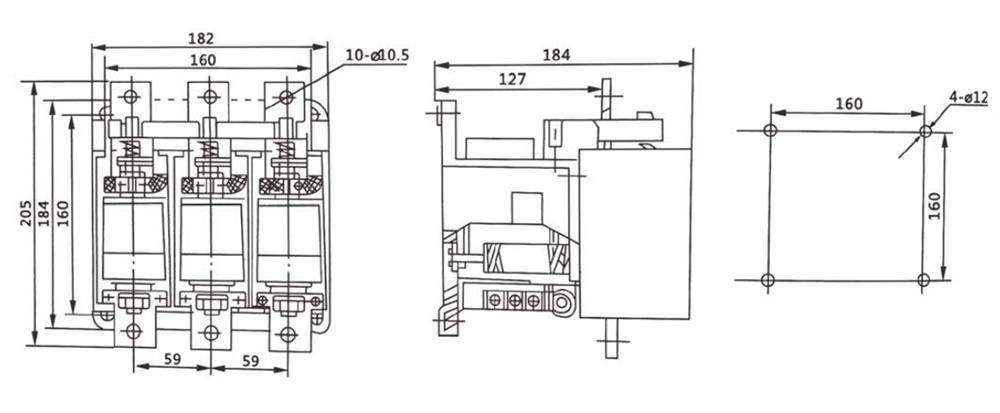

AC vacuum contactor outline and installation dimension (Unit: mm)

Tips: Advantages of ac vacuum contactors for sale on CCHN

CCHN ac vacuum contactor has strong arc extinguishing ability, good pressure resistance, high operating frequency, long life, no arc spray, small size, light weight, and long maintenance cycle. The process requirements for the vacuum interrupter of the ac vacuum contactor are very high. If the process is poor, the vacuum of the interrupter is easy to drop. If the contact material of the ac vacuum contactor is not good, the phenomenon of "intercepting over-voltage" will occur when the current is interrupted. That is, when the current is interrupted, due to the strong arc extinguishing ability of the vacuum interrupter, the arc current is not cut off naturally at zero crossing, but suddenly drops from a certain value of the current to zero, resulting in a high overvoltage. Intercepting over-voltage will endanger the safe operation of electrical equipment.
