100 amp 2/4 pole Lighting Contactor, 110V/220V Coil

Low cost 100 amp 4 pole lighting contactor is a relay switch, 2 pole contactor is also available with 100,000 cycles, 220V/110V AC coil voltage, and 2NO auxiliary contact. Full-automatic AC contactor optimizes the electromagnetic system to reduce the maintenance power, used to control lighting systems for home appliances, industrial and commercial.

SKU: CCHN-LCON-100

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Get a high performance 100 amp 4 pole lighting contactor, 2 pole contactor is available. 220V/110V AC safety modular contactor with 2NO auxiliary contact, 100,000 cycles. Popular magnetic contactor optimizes the electromagnetic system to reduce the maintenance power, used to control lighting systems.

Specifications

Model	CCHN-WCT-100
Power Circuit
Voltage rating (Ue)	2P	250V AC
	4P	400V AC
Frequency	50Hz or 60Hz
Endurance (O-C)
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional Characteristics
Insulation voltage (Ui)	500V AC
Pollution degree	2
Operating mode	Full-automatic
Rated impulse withstand voltage (Uimp)	2.5kv (4 kV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only	IP20
	Device in modular enclosure	IP40
Operating temperature	-5℃ to 60+℃
Storage temperature	-40℃ to 70+℃
Tropicalization ( IEC 60068-1)	Treatment 2 ( relative humidity 95% at 55℃ )
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 V AC versions
The product control conforms to the SELV (Safety Extra Low Voltage) requirements

Lighting Contactor Wiring Test: Demonstrating Operation

A lighting contactor is an electrical device used to control the operation of lighting systems, typically in commercial or industrial settings. It is designed to handle the high current demands of lighting circuits and provide a convenient way to switch multiple lighting loads on and off. The video will conduct a wiring test of the lighting contactor to demonstrate its operational principles.

Note: In the case of contactor mounting in an enclosure for which the interior temperature is in range between 50℃ and 60°℃, it is necessary to use a spacer, between each contactor.

Consumption

Type	Raring (In)		Control Voltage (V AC) (50Hz)	Consumption		Max Power
	AC7a	AC7b		Holding	Inrush
2P	100A	-	220-240	6.5VA	53VA	2.1W
4P			220-240	13VA	106VA	4.2W

Contact Type Diagram

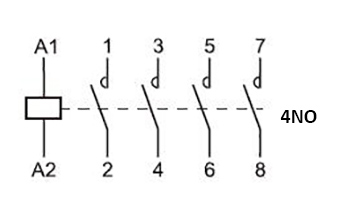

2NO contact type diagram 4NO contact type diagram

Dimension (Unit: mm)

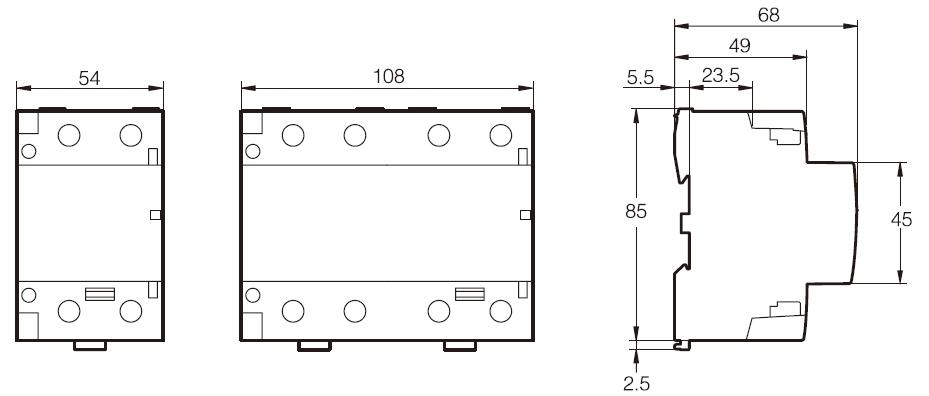

Lighting Contactor Dimension

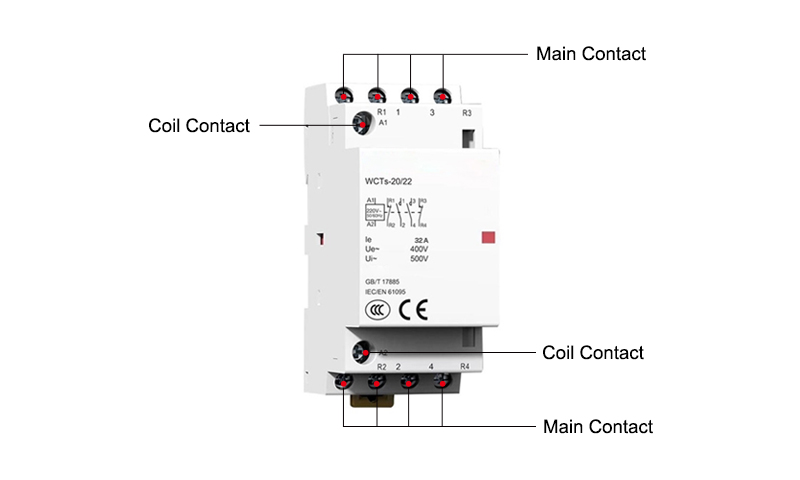

Details

Tips: Types of Contactors

Contactors are divided into AC contactors (voltage AC) and DC contactors (voltage DC), which are used in electric power, power distribution and electricity applications. A contactor refers to an electrical appliance that uses current to flow through a coil to generate a magnetic field in industrial electricity to close the contacts to control the load. The lighting contactor is a popular AC contactor.
