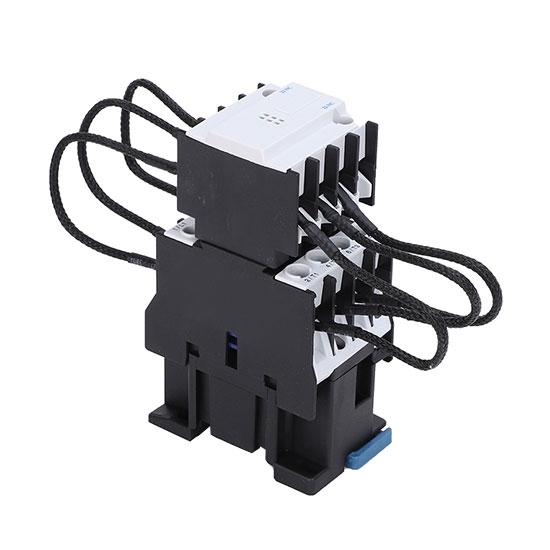

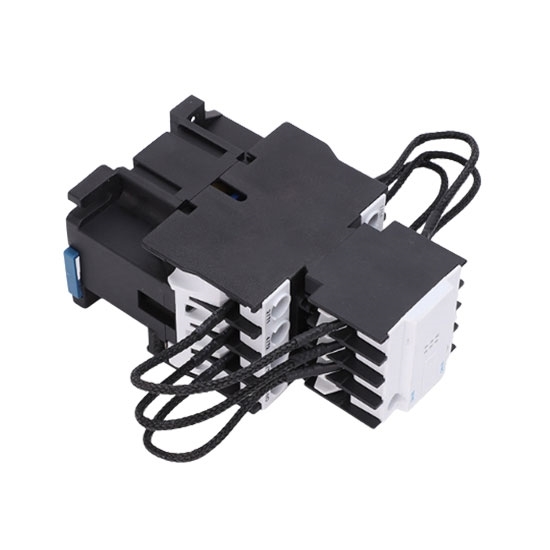

32A AC Capacitor Contactor, 3 Pole, 220V/380V

32A AC Capacitor Contactor, 3 Pole, 220V/380V

32A AC capacitor contactor for sale, featuring a 3-pole structure, 1NO+1NC auxiliary contacts, a selectable 220V/380V AC coil at 50Hz, and support for capacitor banks up to 18 kVAr. Designed for reliable capacitor bank switching in reactive power compensation systems, it provides easy DIN rail installation for electrical cabinets.

SKU: CCHN-CC-32A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

CCHN 32A AC capacitor contactor is designed for reliable capacitor bank switching in reactive power compensation systems. It supports capacitor banks up to 18kvar and features a 3-pole structure, 1NO+1NC auxiliary contacts, selectable 220V/380V AC coil, and DIN rail mounting for easy installation in electrical cabinets.

Specification

Model	CCHN-CJ19-3211
Rated Current	32A
Rated Coil Voltage	AC 220V/380V
Maximum Controlled Capacitor Capacity	18 kVAr
Number of Poles	3P
Auxiliary Contact Configuration	1NO+1NC
Rated Frequency	50Hz
Operating Current	30A
Conventional Thermal Current	32A
Electrical Life	100000 operations
Mechanical Life	1000000 operations
Mounting Method	DIN Rail Mount
Wiring Method	Screw Terminal
Protection Type	Capacitor Protection
Ambient Temperature	-5–40℃
Protection Degree	IP20
Dimensions	90 × 58 × 132mm
Weight	0.63kg

Feature

Stable Capacitor Switching: The 32A capacitor contactor supports capacitor banks up to 18 kVAr, ensuring reliable reactive power compensation and effective capacitor protection.
Copper Coil Design: High-quality copper coil improves heat resistance, reduces overheating, and provides smoother operation with longer service life.
32 Silicon Steel Core: The capacitor switching contactor features an enlarged iron core with 32 silicon steel sheets, improving heat dissipation, reducing energy losses, and ensuring smooth and reliable contact engagement.
Enhanced Terminals: Enlarged terminals with PA66 base material make wiring easier and provide safe connections for larger loads.

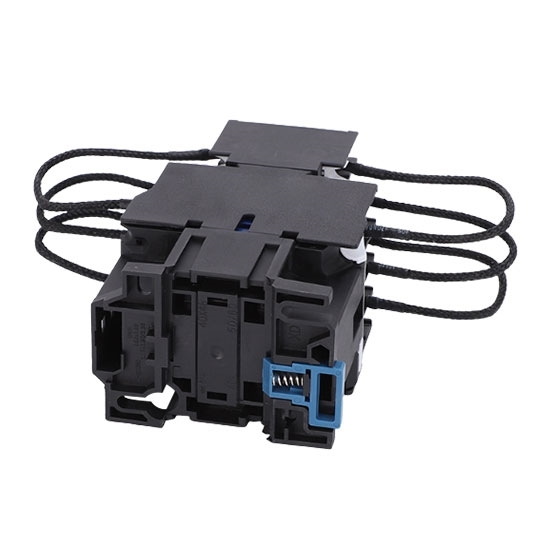

DIN Rail Mounting: 35mm DIN rail installation with dual-hole wiring design allows quick and convenient installation.
Long Service Life: CCHN capacitor contactor features an enlarged iron core with 32 silicon steel sheets, improving heat dissipation, reducing energy losses, and ensuring smooth and reliable contact engagement.
Compact Structure: 3-pole design with 1NO+1NC auxiliary contacts offers flexible control and space-saving installation.

Detail

32A AC capacitor contactor details

Size (unit: mm)

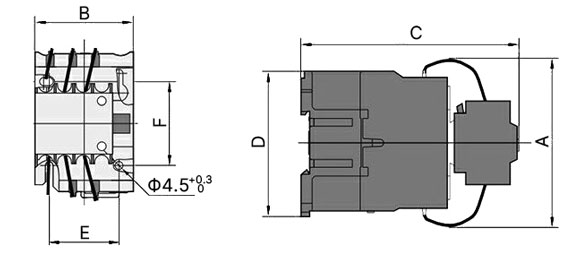

32A AC capacitor contactor size

Amax	Bmax	Cmax	Dmax	E	F
90	58	132	86	40	48

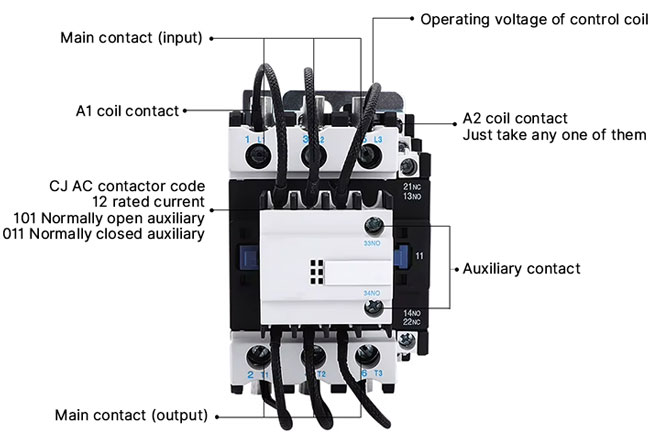

Wiring

220V

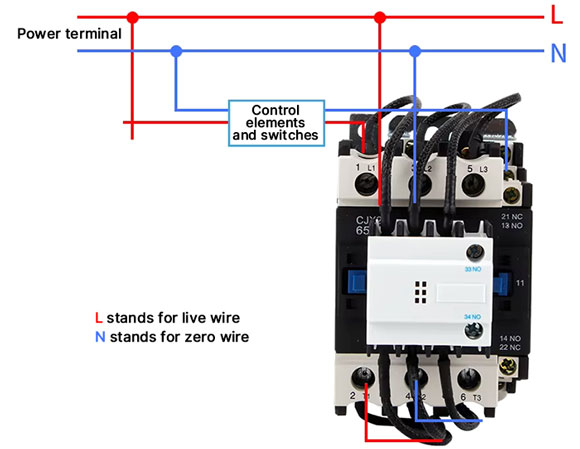

32A AC capacitor contactor 220v

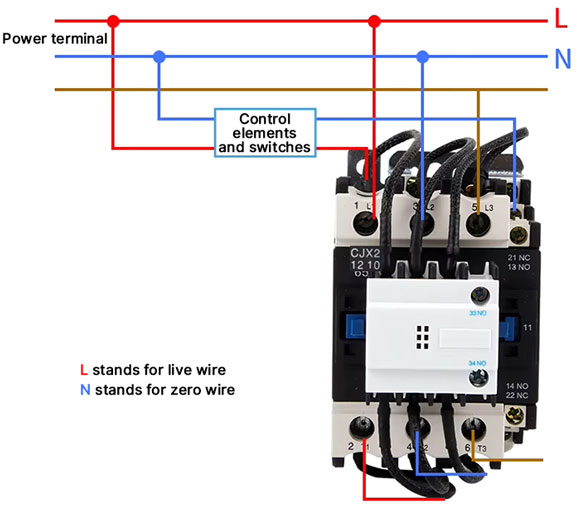

380V

Application

32A AC capacitor contactor application

Tips: Does this capacitor contactor require regular maintenance?

Yes. Regular maintenance helps ensure stable operation and extends the service life of the capacitor contactor. It is recommended to periodically check terminal tightness to prevent loose connections, inspect the contact condition for signs of wear or overheating, and ensure the contactor operates normally under the rated load. Keeping the electrical cabinet clean, dry, and well-ventilated can also help prevent dust accumulation and excessive temperature rise, improving the long-term reliability of the capacitor switching system.
