50A High Voltage DC Contactor, 12V/24V coil

High voltage DC contactor, normally open type (SPST-NO), 50 amps rated load current of contact circuit, available with 12V or 24V coils, the connection of contact and coil need to be nonpolarity. It is widely used in the DC high voltage field, such as electric car, wind power generation, DC power supply control system and so on.

SKU: CCHN-DCCON-HV50

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Features

DC 12-900V rated load voltage of contact circuit.
SPST-NO of contact form, 12 volt, 24 volt coil for selecting.
Main contact voltage drop at 50A, not above 100mV.
The connection of contact and coil need to be nonpolarity.
Efficient coil, retentive power is only 2-2.3W, counter electromotive force is 0V.
The joint way of the coil is very convenient.
The coil has no counter force of electromagnetism.
Compare to the similar products, this product is smallest and lightest.

Specifications

Basics	Model	CCHN-ADH50
	Dimension	55 x 42 x 62 mm
	Weight	230 g
Main Contact Parameters	Contact Form	1 NO
	Leading-Out	M5 internal thread/18 mm
	Rated Load Current	50 A
	Rated Load Voltage	12 – 900V DC
	Maximum Switching Current	500A 320V DC (≥1 times)
	Maximum Switching Power	160 kW
	Rated Electric Life	10,000 times
Coil Parameters	Standard Type Voltage	12V DC	24V DC
	Work Voltage	9~16V	18~32 V
	Max Voltage	16 V	32 V
	Coil Resistance	26 Ω	96 Ω
	Average Holding Current	0.46 A	0.25 A
	Steady State Power	5.5 W	6 W
	Actuation Time	≤25 ms
	Release Time	≤10 ms
	Bounce Time	≤5 ms
Mechanical Specification	Stability	196 m/s²(20G)
	Strength	490 m/s²(50G)
	Vibration	80 ~2000Hz 98m/s²(20G)
	IP Grade	IP67
Environment	Operating Temperature	-40℃~85℃
	Operating Humidity	5~95% RH

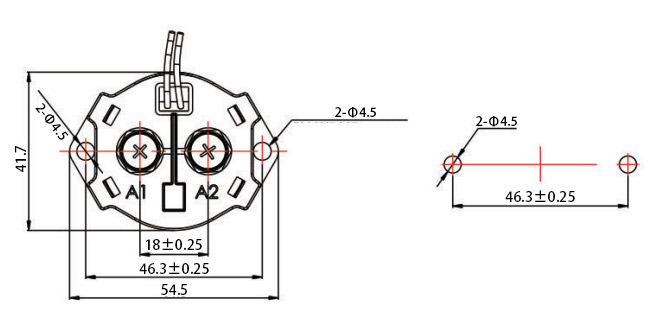

Installation Diagram (Unit: mm)

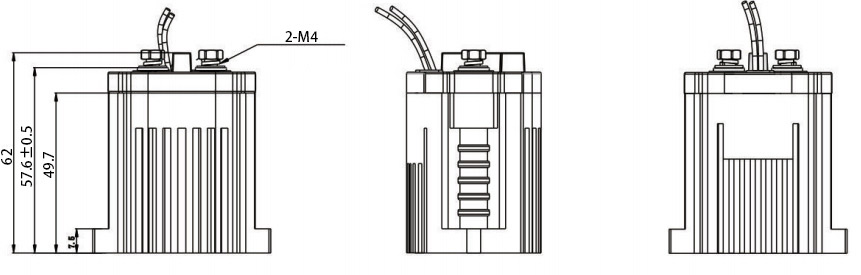

High voltage 50a dc contactor dimension 1

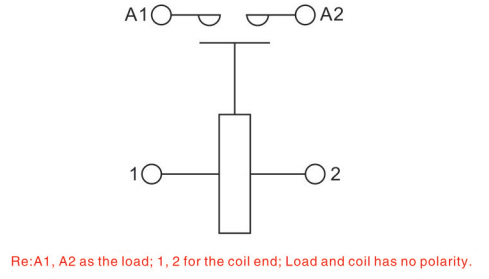

High Voltage DC Contactor Coil Schematic

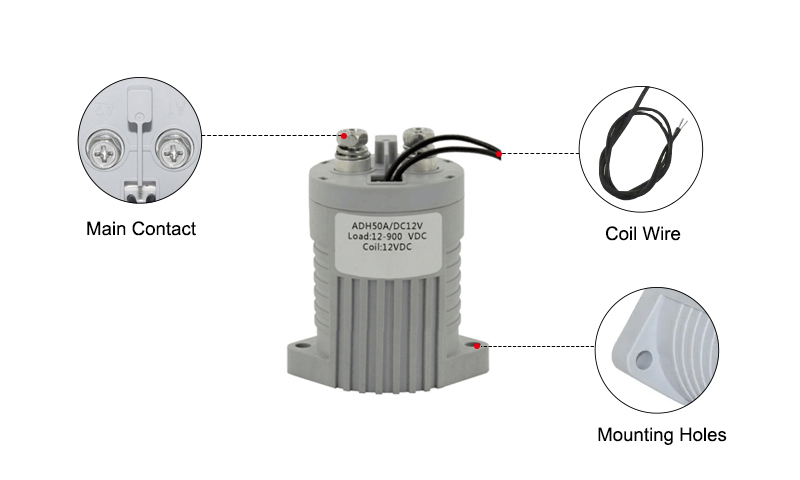

Details

Tips: Fusion welding of the contactor due to electric shock, how to solve?

Possible causes of the fault:

short circuit of contactor on the load side.
Overload use of contactor contact.
There’s a foreign body or a metal particle on the surface of the contact.
Pressure of the contact spring is too small.
Poor contact of contactor's lines, which makes the contactor repeatedly pull in and release at a moment.

Maintenance method:

Power off at first, separate the welding contacts with a screwdriver, correct the contact surface and eliminate the short-circuit fault.
Replace with a large capacity and high quality contactor.
Smooth the contact surface with a steel file and remove foreign bodies.
Readjust the spring pressure.
Check the bad contacts of the coil control loop of the contactor, reconnect the loop or replace electrical components, ensure a good on-off situation.
