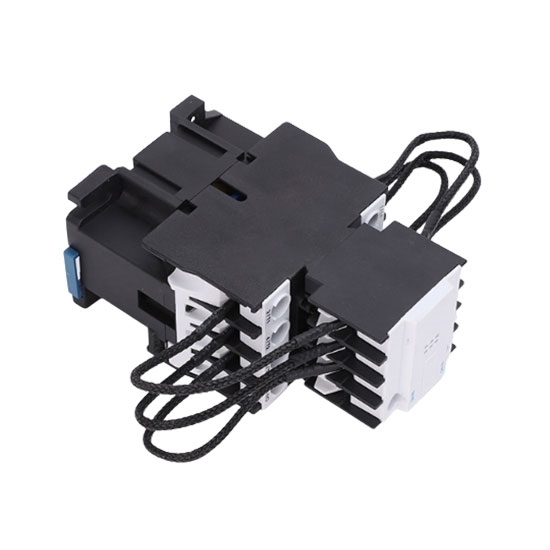

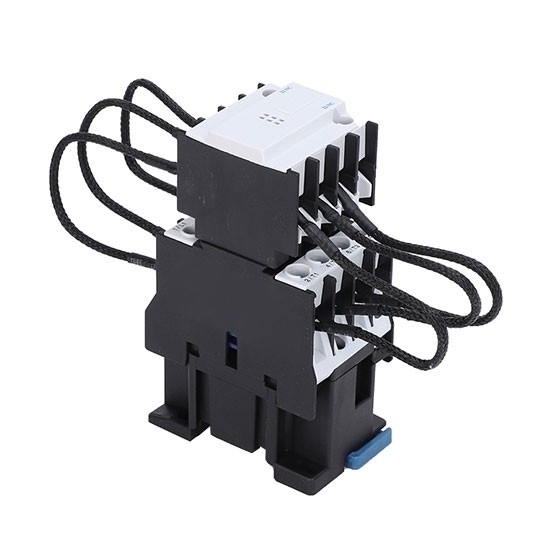

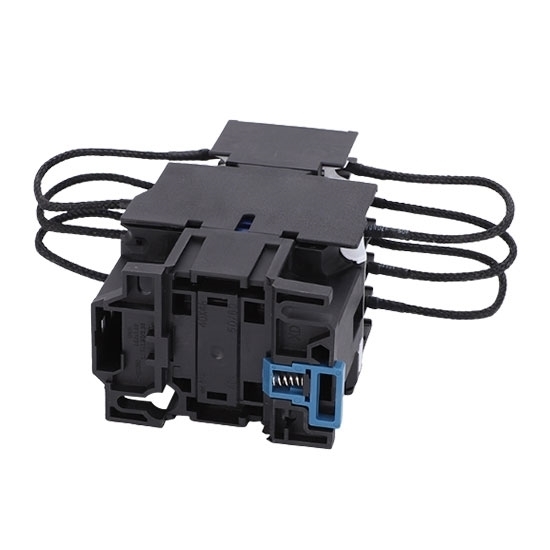

63A AC Capacitor Contactor, 3 Pole, 220V/380V

63A AC Capacitor Contactor, 3 Pole, 220V/380V

63A AC capacitor contactor for capacitor bank control and power factor correction applications. With AC 220V/380V coil voltage, 3P design, 2NO+1NC auxiliary contacts, and capacitor protection function, it supports up to 32 kVAr capacitive loads. DIN rail mounting ensures fast installation and reliable performance in electrical control systems.

SKU: CCHN-CC-63A

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy 63A AC capacitor contactor online for reliable capacitor bank switching and reactive power compensation applications. Featuring an AC 220V/380V coil voltage, this capacitor contactor provides stable operation, effective capacitor protection, and easy DIN rail installation for industrial electrical control systems.

Specification

Model	CCHN-CJ19-6321
Rated Current	63A
Rated Coil Voltage	AC 220V/380V
Maximum Controlled Capacitor Capacity	32 kVAr
Number of Poles	3P
Auxiliary Contact Configuration	2NO+1NC
Rated Frequency	50Hz
Operating Current	60A
Conventional Thermal Current	69A
Electrical Life	80000 operations
Mechanical Life	800000 operations
Mounting Method	DIN Rail Mount
Wiring Method	Screw Terminal
Protection Type	Capacitor Protection
Ambient Temperature	-5–40℃
Protection Degree	IP20
Dimensions	132 × 79 × 150mm
Weight	1.4kg

Feature

Reliable 63A Rated Current: The capacitor contactor is designed for capacitor bank switching and reactive power compensation systems, providing stable operation and effective capacitor protection.
32-Sheet Silicon Steel Core: Enlarged iron core design enhances heat dissipation, reduces losses, and provides reliable contact engagement.
High-Temperature Copper Coil: This 63A AC capacitor contactor uses a high-quality copper coil to enhance heat resistance, minimize overheating, prevent oxidation, and provide smoother contact operation for extended service life.
PA66 Base & Enlarged Terminals: Offers convenient wiring, improved insulation performance, and reliable connections for heavy-load applications.
35mm DIN Rail Mounting: The capacitor switching contactor supports 35mm DIN rail installation and features dual wiring holes for faster installation, reliable connections, and easier maintenance.

Detail

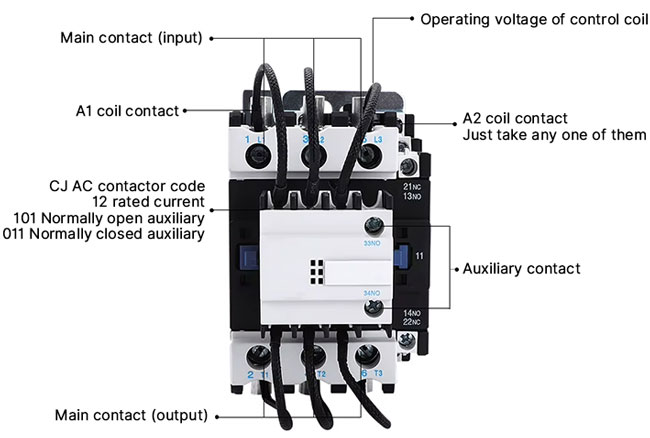

63A AC capacitor contactor details

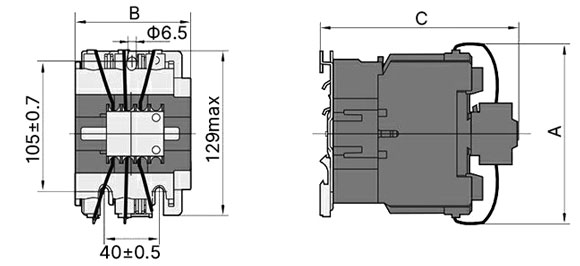

Size (unit: mm)

63A AC capacitor contactor size

Amax	Bmax	Cmax
132	79	150

Wiring

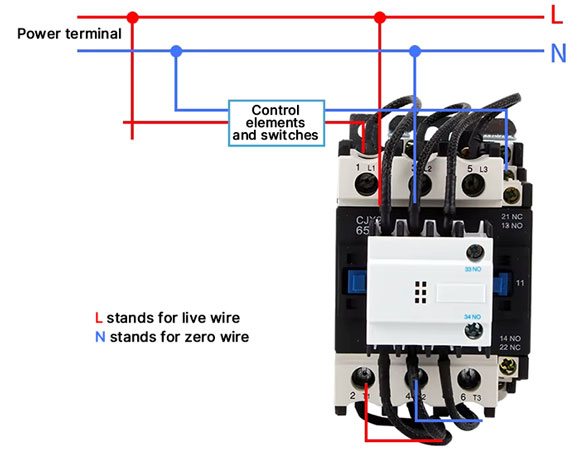

220V

63A AC capacitor contactor 220v

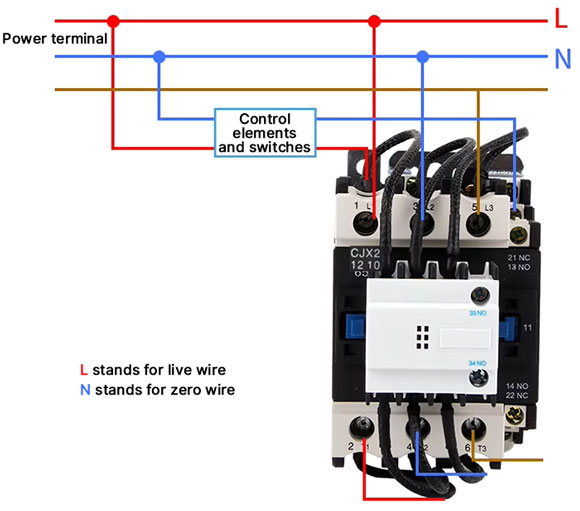

380V

63A AC capacitor contactor 380v

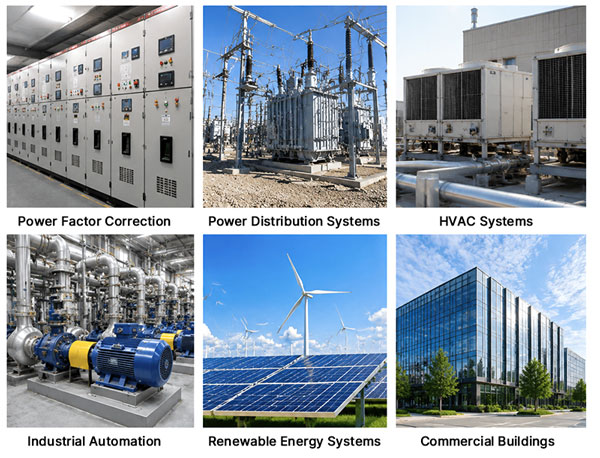

Application

63A AC capacitor contactor application

Tips: Does this capacitor contactor support continuous operation?

Yes. This capacitor contactor is designed for stable and reliable operation in capacitor bank switching applications. It uses durable internal components to withstand frequent switching cycles, reduce contact wear, and maintain consistent performance during long-term operation. Proper installation, suitable ventilation, and operation within the rated load range can further improve reliability and extend the service life of the contactor.
