50A DC Reversing Contactor, 2 pole, 12V/24V/48V

Two pole DC reversing contacor with 2 sets of switching contacts, 2NO and 2NC form, 50 amps rated load current of contact circuit, coil rated voltage with 12V/24V/48V DC for selection. Cheap price and manufacturer direct sale.

SKU: CCHN-DCCON-R50

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The provided 50A DC reversing contactor with 2NO and 2NC contact type, coil voltage available in 12 volt, 24 volt, 48 volt. It is used to change the direction of rotation in direct current motors, start them gently and to monitor their load. Widely used in auto electric winch, telecommunication equiment, engineering machinery and other electric control system.

Specifications

Basics	Model	CCHN-ADC50
	Body Size	815276 mm
	Weight	410 g
Technical Parameters	Coil Rated Voltage	12V/24V/48V
	Contact Circuit Rated Load Current	50A
	Contact Rated Load Voltage	12V~60V DC
	Contact Form	2NO and 2NC
	Starting Current	≤4 A
	Overload Current	≤8 le
	Coil Power	≤8 W
	Main Contact Voltage Drop at 50A Load	≤80 mV
	The Allowed Range of Coil Voltage	±20%
	Pull-In Time (N/O Contacts to Open)	≤20 ms
	Drop-Out Time (N/O Contact to Close)	≤10 ms
	Insulation Resistance	≥50 MΩ
	Dielectric Withstanding Voltage	50Hz/60Hz 1500VAC/Min
	Electric Life	Continuous 30000 times
	Mechanical Life	300 thousand times
Environment	Operating Temperature	-40℃~85℃
Environment	Operating Humidity	5~95% RH

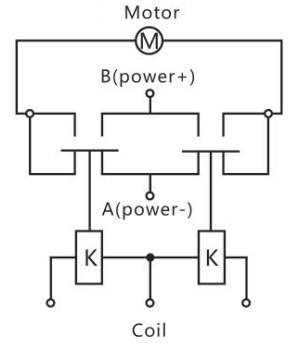

DC Reversing Contactor Circuit Diagram

Installation Diagram (Unit: mm)

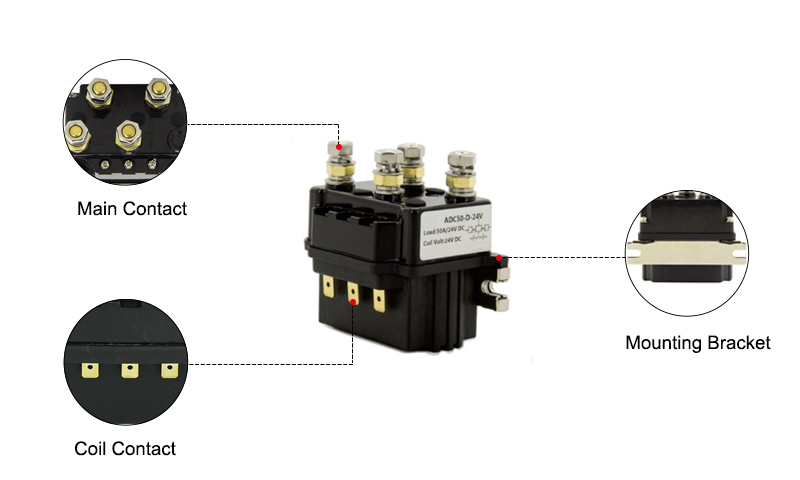

Details

Tips: Short circuit of the contactor, how to solve?

Possible causes of the fault:

The contactor works in the environment of damp, dust, steam, or corrosive gases.
The arc chute damages or falls, load short leads to the contact short of the contactor.
Incorrect operation of the positive and reverse contactor, as well as unreliable interlocking, make two contactors to pull in at a same time when reversing.

Maintenance method:

Improve the working environment and keep clean.
Match an arc-extinguishing equipment again.
Handle the load short failure.
Recheck the contactor's interlocking circuit, change the operation mode.
